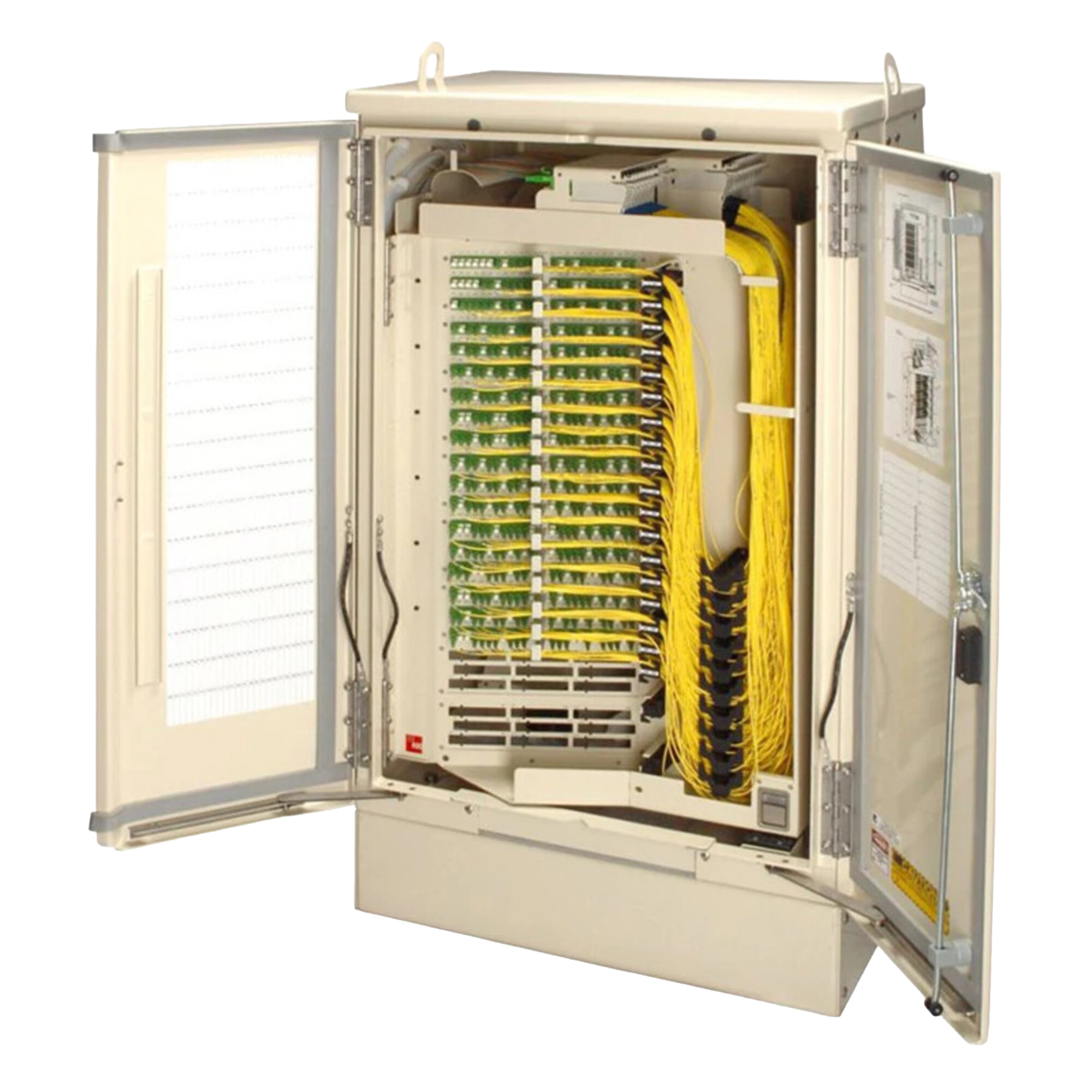

New CommScope FDH 3000 432F Large Fiber Distribution Cabinet FD3-AJ432J1ATABP1

Description

Technical Specifications

• Port Capacity: 432 distribution ports.
• Dimensions: Approximately (48.75) in (H) x (48.05) in (W) x (19.58) in (D).
• Material: Aluminum with a powder-coated putty white finish for environmental durability.
• Fiber Connector Interface: SC/APC.
• Mounting: Pad mounted for stable outdoor installation.
• Access: Front-only access featuring a unique “swing-out frame” for easy maintenance of distribution panels and cables.

Key Features

• Scalability: Supports a wide range of plug-and-play (PNP) splitter configurations, including (1times32), (2times32), (1times64), and more.
• Cable Management: Integrated slack storage spools and angled bulkhead panels help maintain a positive bend radius and simplify routing.
• Weather Protection: Features a three-point latch for a weather-tight seal to protect internal components from harsh outdoor conditions.
• Security: Enclosure can be secured using standard tools like a 216B can wrench, key locks, or padlocks.
