24 Port Poli-MOD

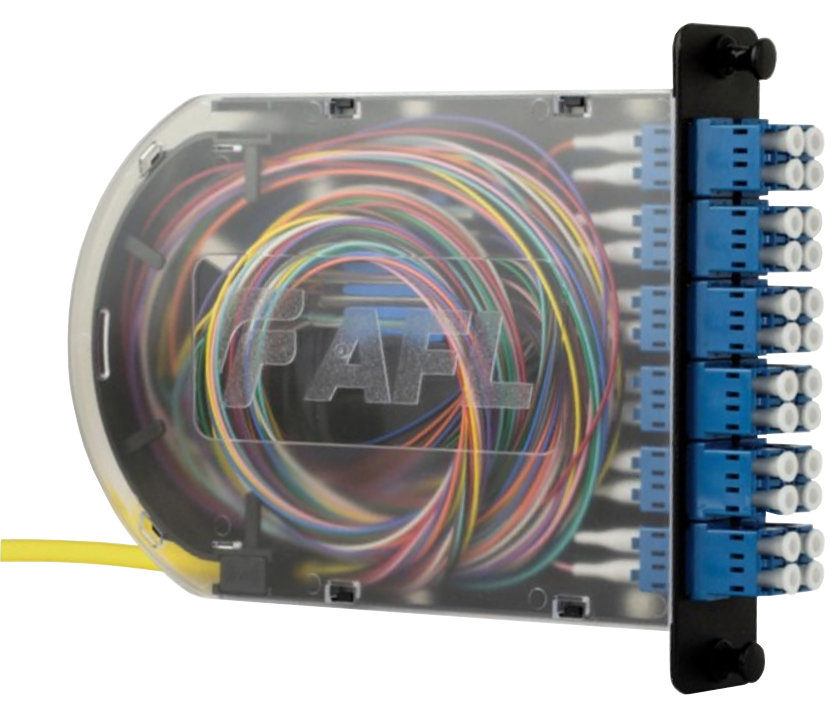

AFL 24 Port Poli-MOD PM-L-24-ULC-0-S-01 New

The AFL 24 Port Poli-MOD PM-L-24-ULC-0-S-01 is a loaded 24-fiber LC/UPC single-mode Poli-MOD patch and splice cassette module. This 24 Port Poli-MOD packages factory-terminated pigtails, fiber adapters, and an integrated splice tray into a single, compact unit. This design allows you to route incoming bulk fiber cable, fuse it to the pigtails, and present clean LC patch ports directly at the front panel without needing separate splice trays or cumbersome cable management.

$270.00

481 in stock

Description

Part Number Breakdown

  • PM: Poli-MOD Series.
  • L: Fully Loaded (includes internal adapter plate and 900µm factory-tested pigtails).
  • 24: 24-Fiber total capacity (outfitted with 12 LC Duplex adapters).
  • ULC: Ultra Physical Contact (UPC) polished LC connectors (Blue adapter housing).
  • 0: Single-mode fiber type (G.657.A1 Bend Insensitive Fiber).
  • S: Single/Standard loose-tube fiber strand arrangement (rather than Ribbon).
  • 01: Single pack / 1 per box.

Core Technical Specifications

  • Form Factor: Single-slot LGX 118 standard footprint (allows up to 6 modules in a typical 1RU panel or up to 288 fibers in a 4RU rack panel).
  • Fiber Mechanics: Built with a tie-wrap free cable mounting mechanism that clamps the cable jacket securely, avoiding crushing or over-tightening.
  • Splice Management: Includes a snap-in splice sleeve cradle that safely holds fusion protection sleeves without needing extra parts.

••Cable Entrance: Supports multi-directional cable entry access to simplify routing inside tight enclosures

Additional information

Weight 2 lbs
Dimensions 12 × 10 × 6 in
