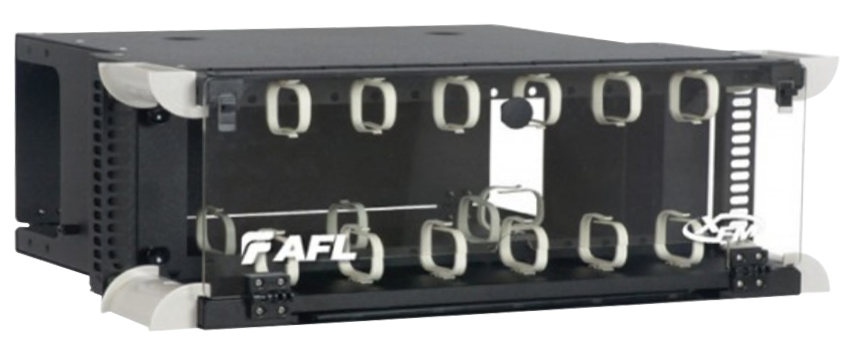

AFL Xpress Fiber Management (XFM) 4 RU Patch Panel FM001090B New

Description

Key Specifications

• Form Factor: 4 Rack Units (4 RU).
• Dimensions: 7.00″ Height x 17.00″ Width x 15.50″ Depth (15.00″ Rear Width).
• Capacity: Accommodates up to 12 LGX 118 adapter plates or optical modules.
• Fiber Density: Supports up to 288 fibers (288F) using MTP/MPO, single fiber, or patch-and-splice methodologies.
• Material: Lightweight, durable aluminum construction.
• Finish: Textured black powder coat.
• Weight: 9 lbs (unloaded).

Design & Functional Features

• Compatibility: Fully integrates with AFL’s XFM Optical Cassettes, Poli-MOD® patch/splice modules, and WDM solutions.
• Adjustable Mounting: Rack ears fit standard 19″ or 23″ WECO/TIA racks with adjustable mounting depths from flush to 8″ protrusion in 1″ increments.
• Cable Management: Integrated routing rings on the top and bottom of the front panel let assemblies exit comfortably.
• Internal Access: Includes a slide-out tray with relief cut-outs for simplified connector and splicing access.
• Security Note: This standard part number (FM001090-B / Model XFM-4U-B-0) is empty and unlocked. If your deployment requires an integrated key lock, look for part number FM001218-B (Model XFM-4U-B-K)
