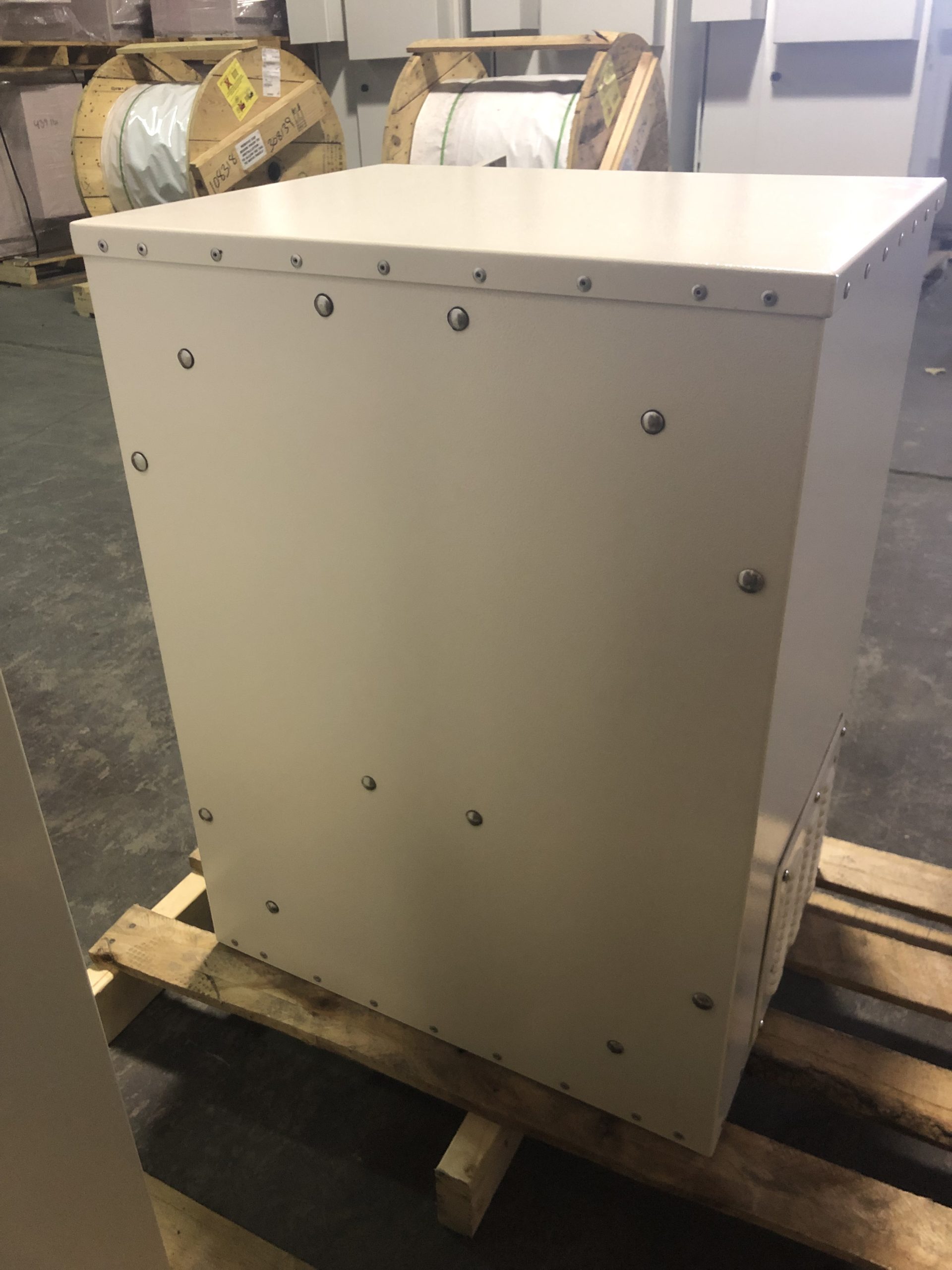

American Products AP MINIFORT Enclosure AM-322822-16RU-F is a 16RU vented outdoor enclosure designed to protect telecommunications, fiber optic, and other equipment from harsh environmental conditions. This AP MINIFORT Enclosure is ETL certified and built with durable, corrosion-resistant materials.

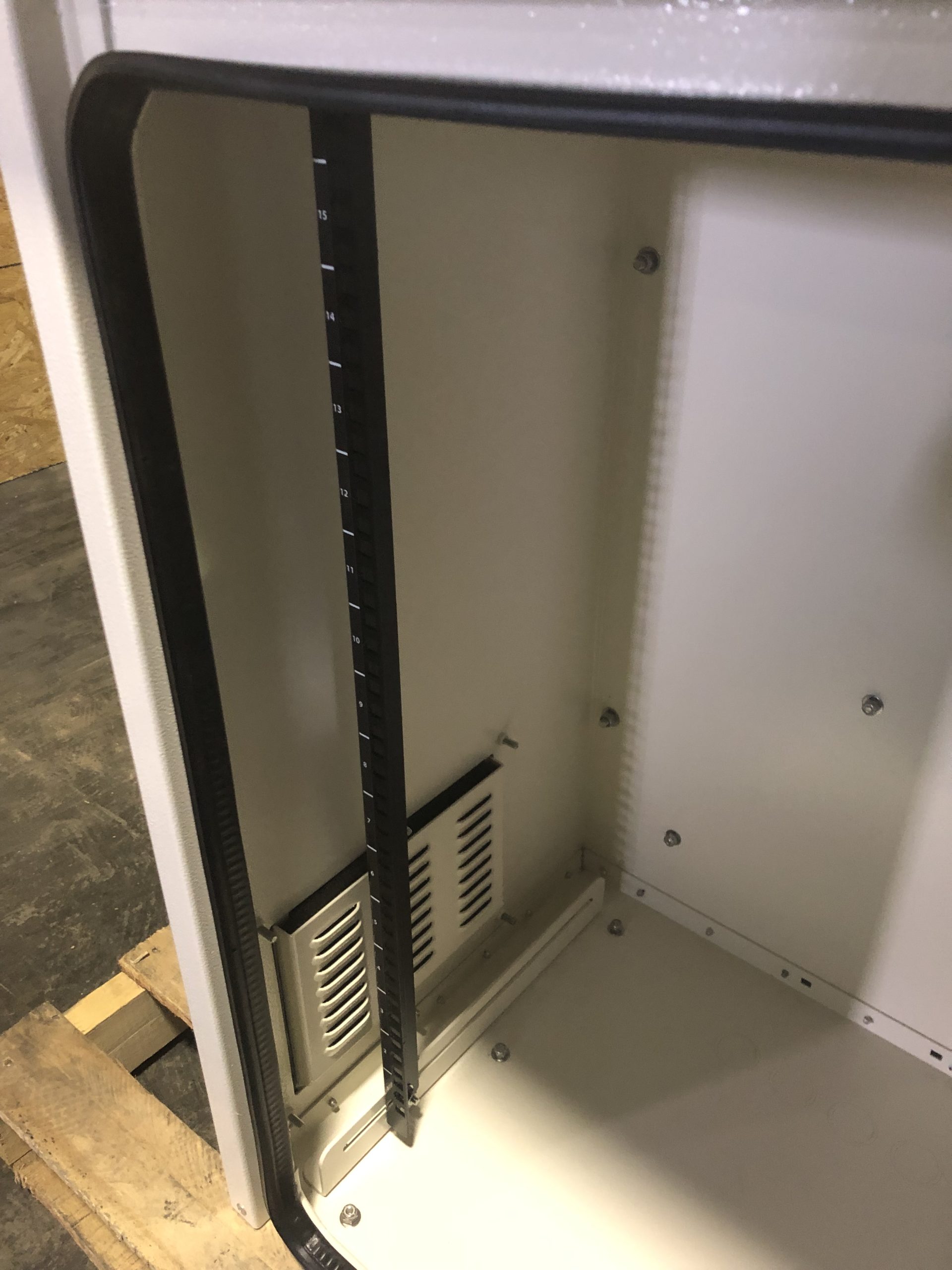

Capacity: The enclosure provides 16 rack units (RU) of equipment rack space, with adjustable 19″ or 23″ rack rails.
Durability: The cabinet is constructed from .090″ thick 5052-H-32 aircraft-grade aluminum, with all hardware made from 304 stainless steel.
Protection rating: It is ETL certified to UL 50 and UL 50E standards, which corresponds to NEMA 3R, meaning it protects against rain, sleet, snow, and falling dirt.
Dimensions: The unit measures 32″ high x 28″ wide x 22″ deep.
Security: The front door features two 1/4-turn latches with brackets for padlocks to secure the equipment.

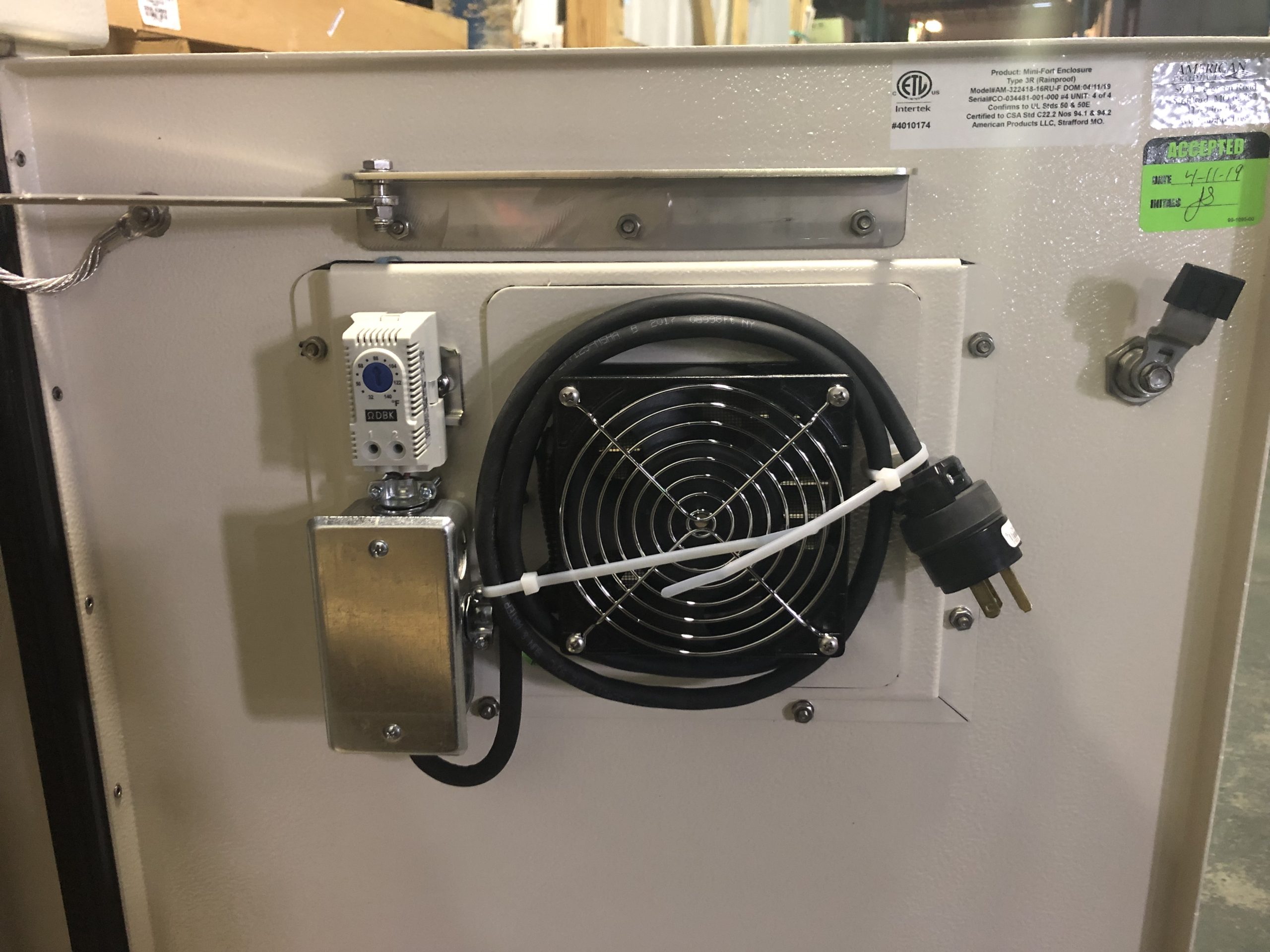

Venting and filtration: This specific model, denoted by the “-F” suffix, comes equipped with vents and inlet filters to allow for air circulation. It is set up to accept an optional fan.
Mounting: The heavy-duty cabinet can be mounted on a concrete pad, pole, or wall.

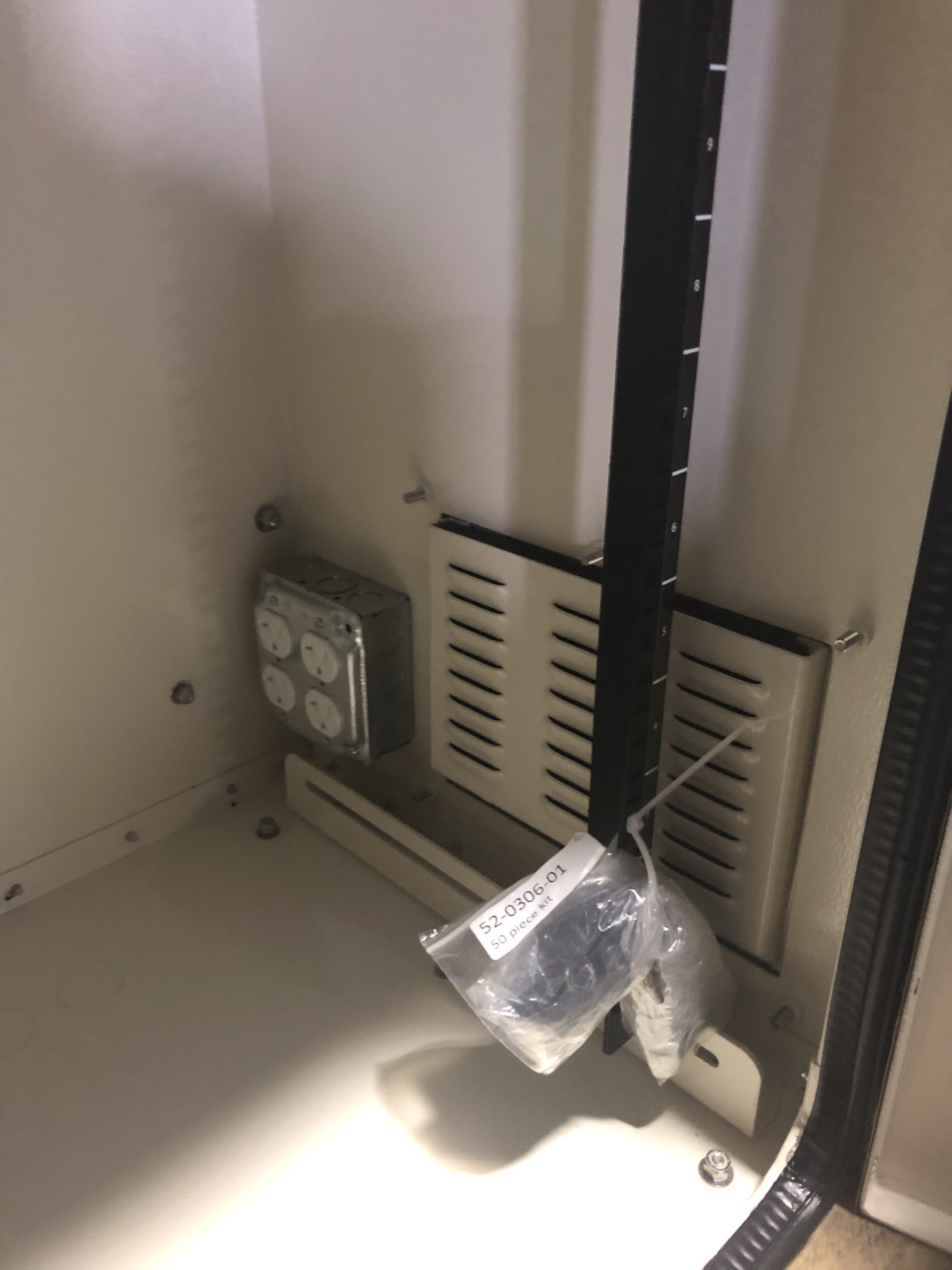

Power: It comes pre-wired with 20-amp receptacles.
Color: The standard finish is a light-textured beige powder coat.
Warranty: The enclosure includes a 5-year warranty on components manufactured by American Products.
