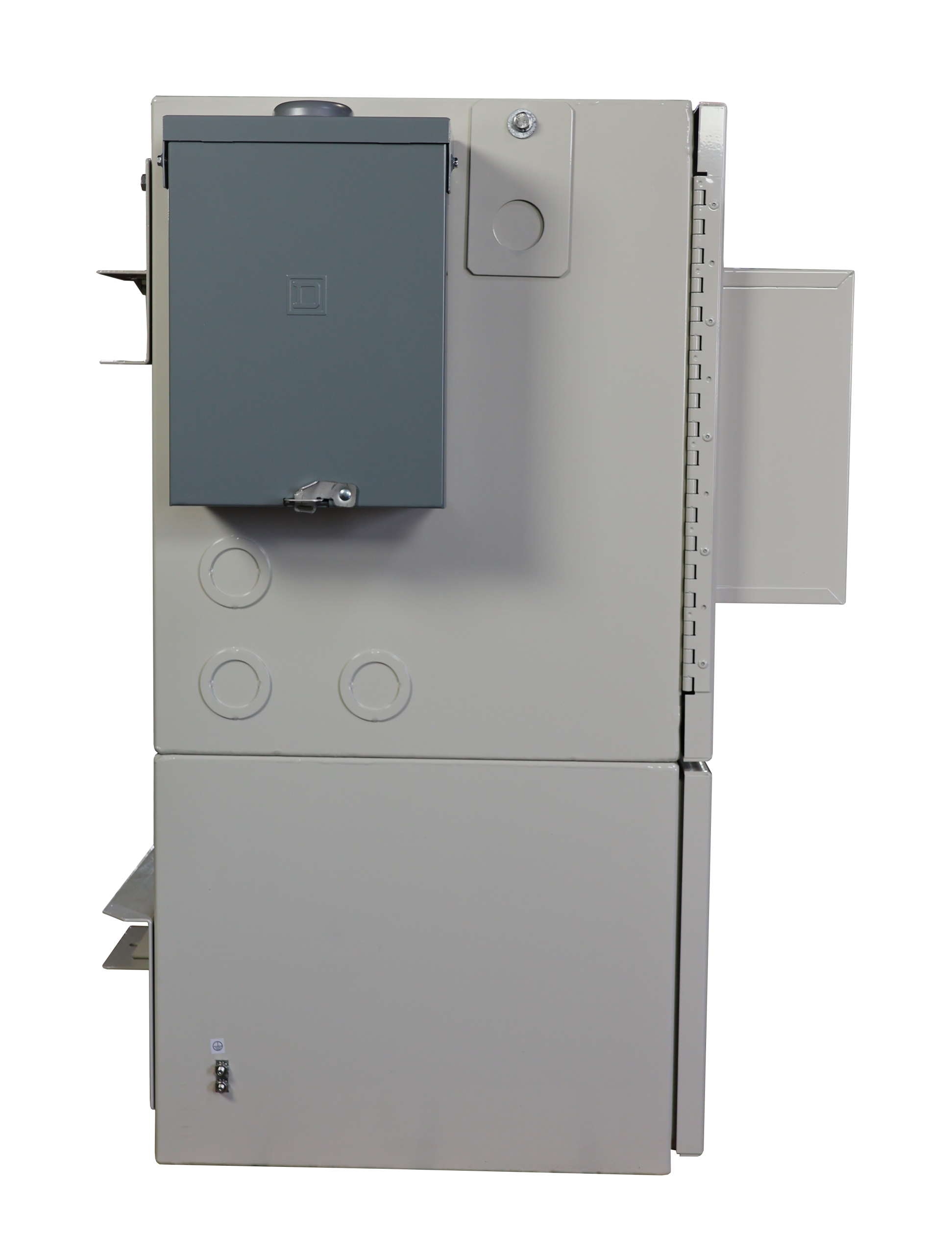

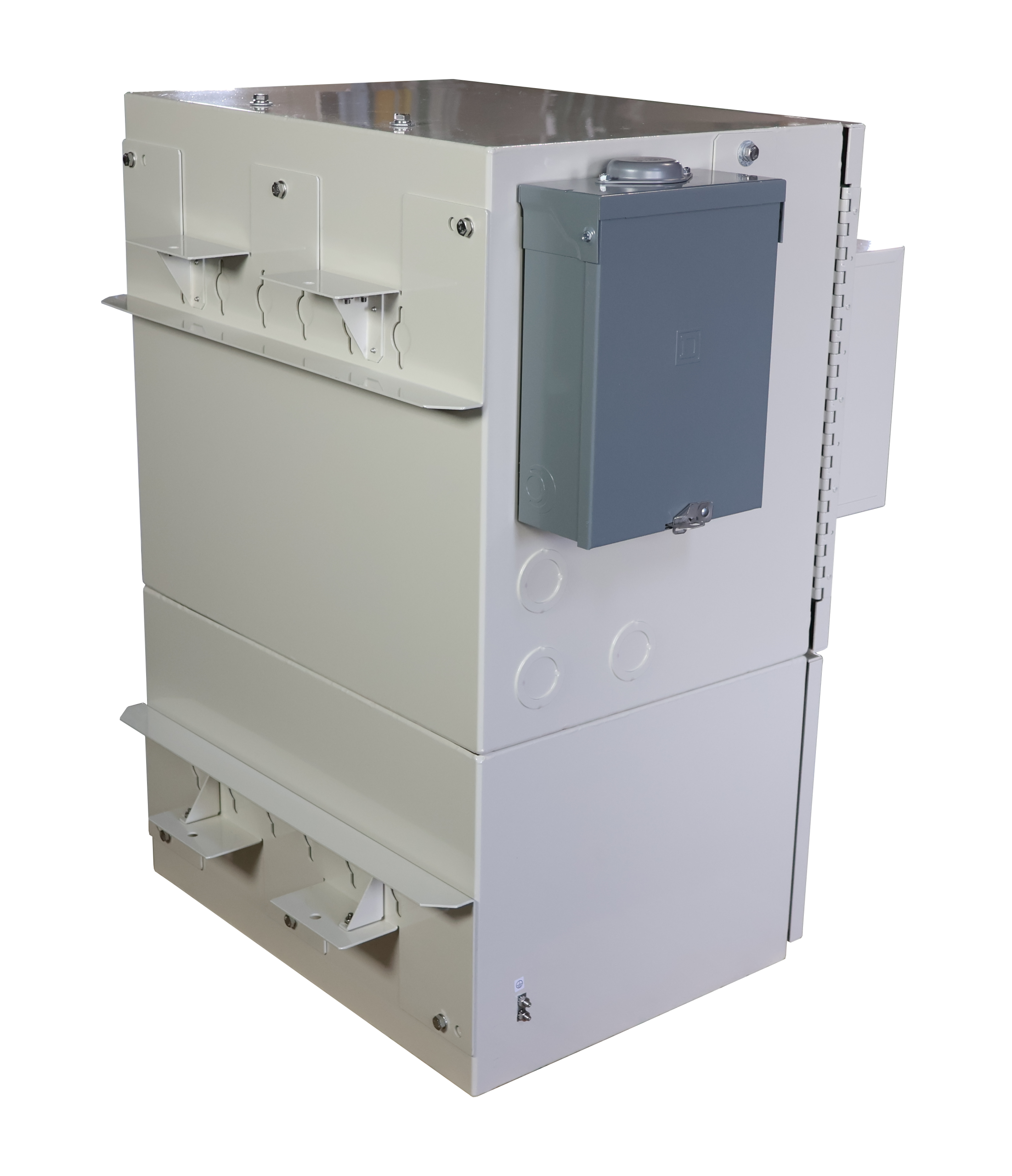

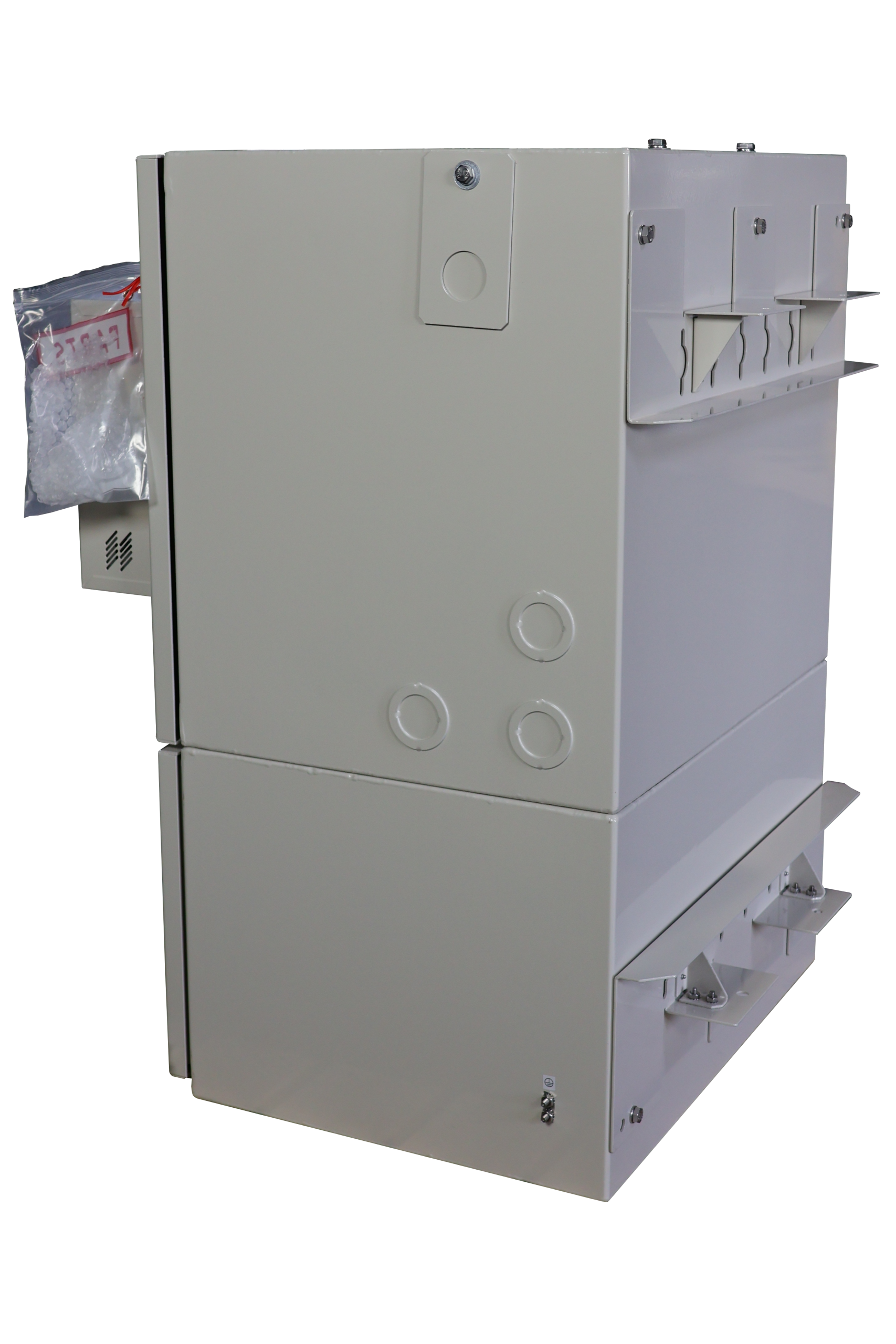

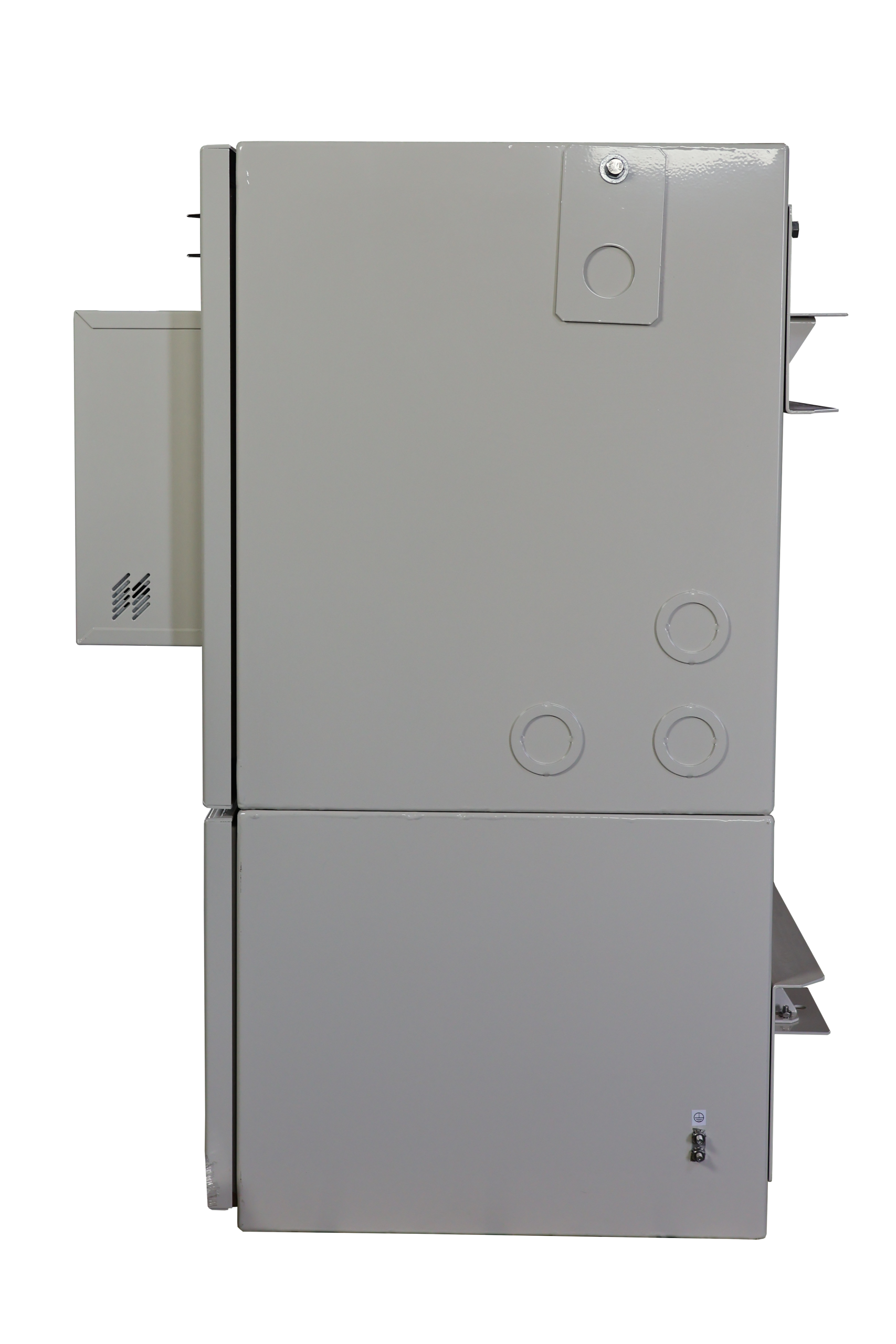

New Charles Telecom and Power Enclosure Cabinet CUBE RL21221ABJ

Overall Dimensions – 39″ H x 26″ W x 20″ D

Equipment Chamber Capacity – 12 Rack Units (RU), 19″ EIA standard rack mount space

Equipment Chamber Dimensions – 24″ H x 26″ W x 20″ D

Battery Chamber Dimensions  – 15″ H x 26″ W x 20″ D

Construction Material  – Durable, welded aluminum with a powder-coated off-white finish

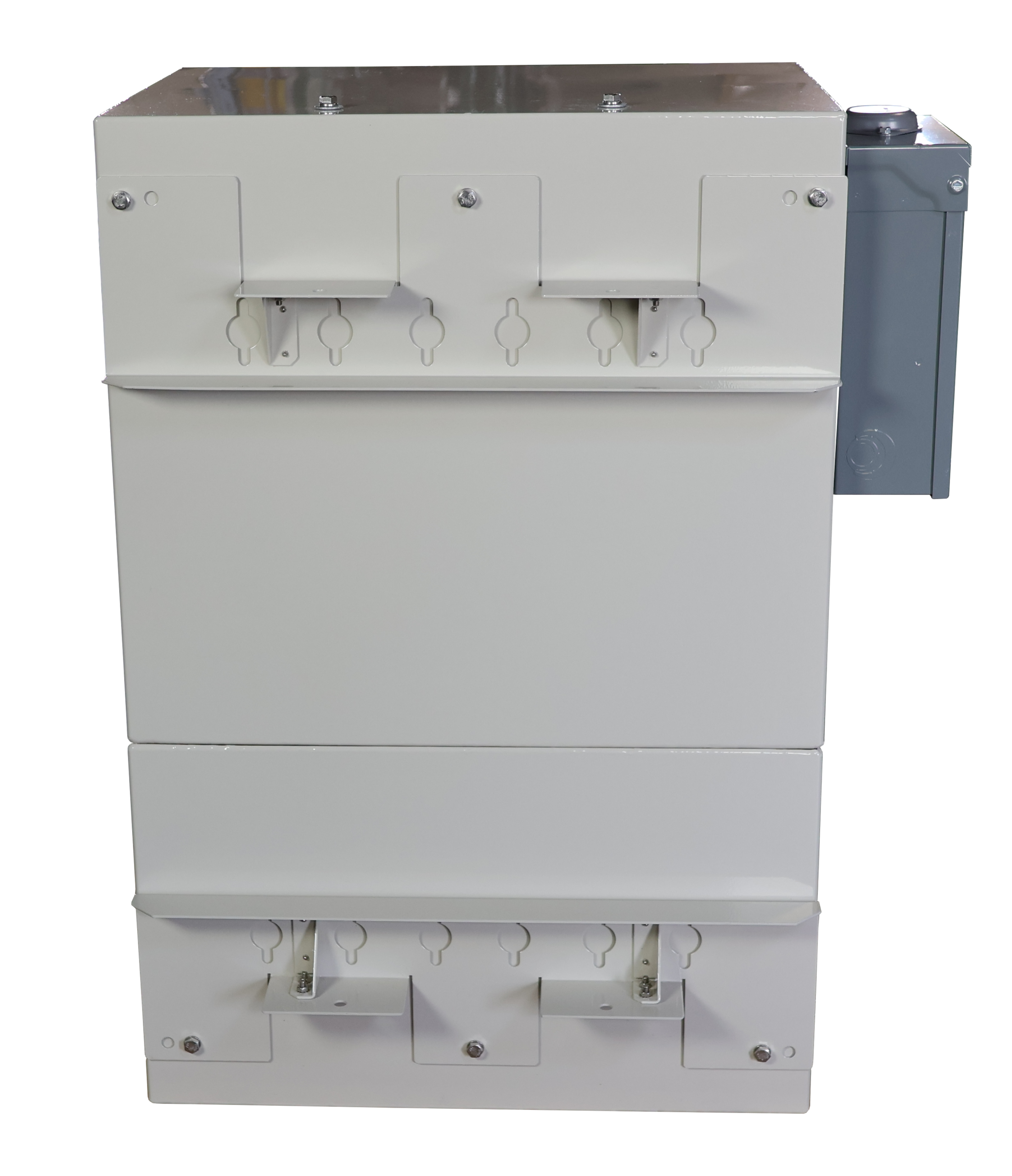

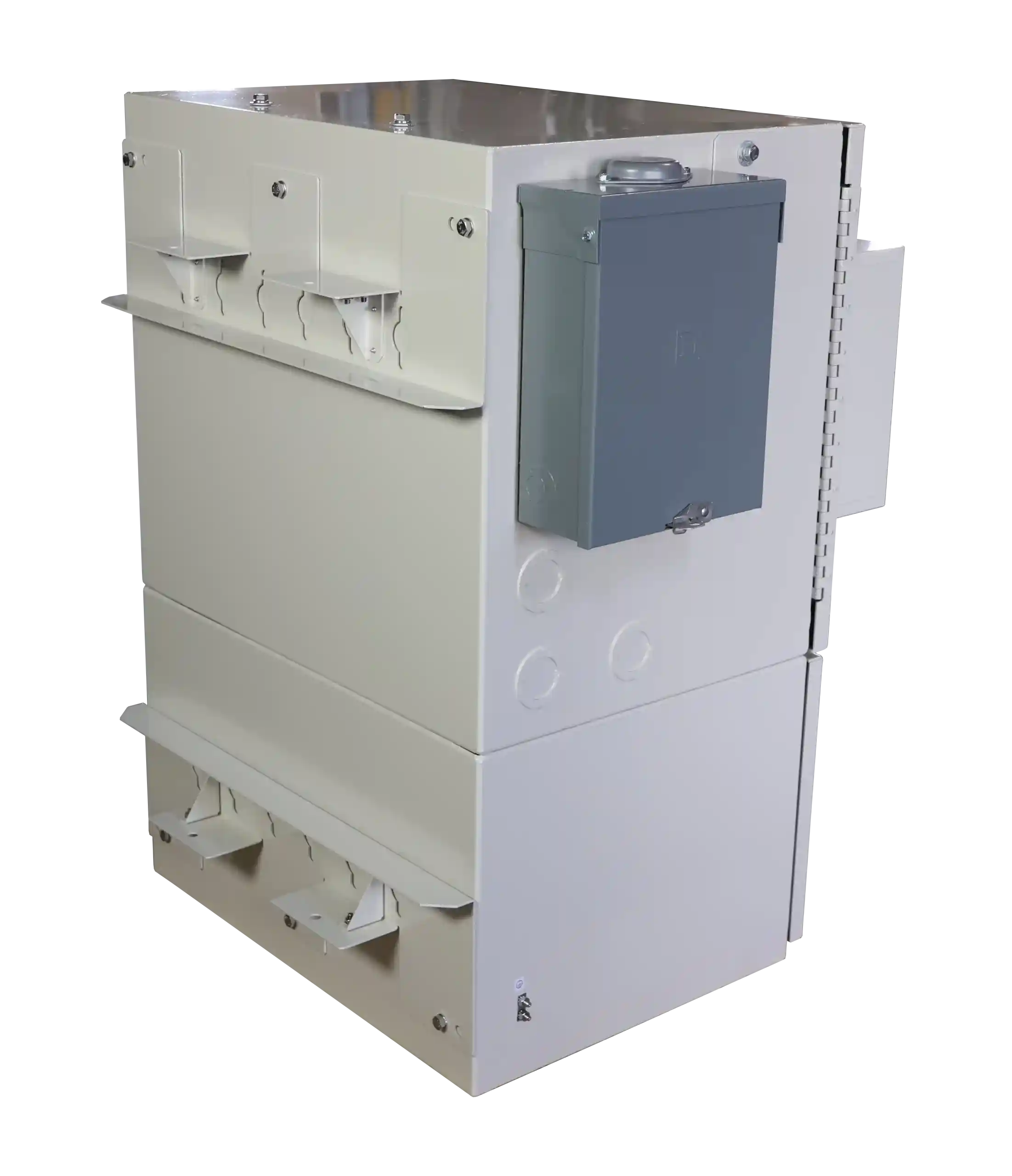

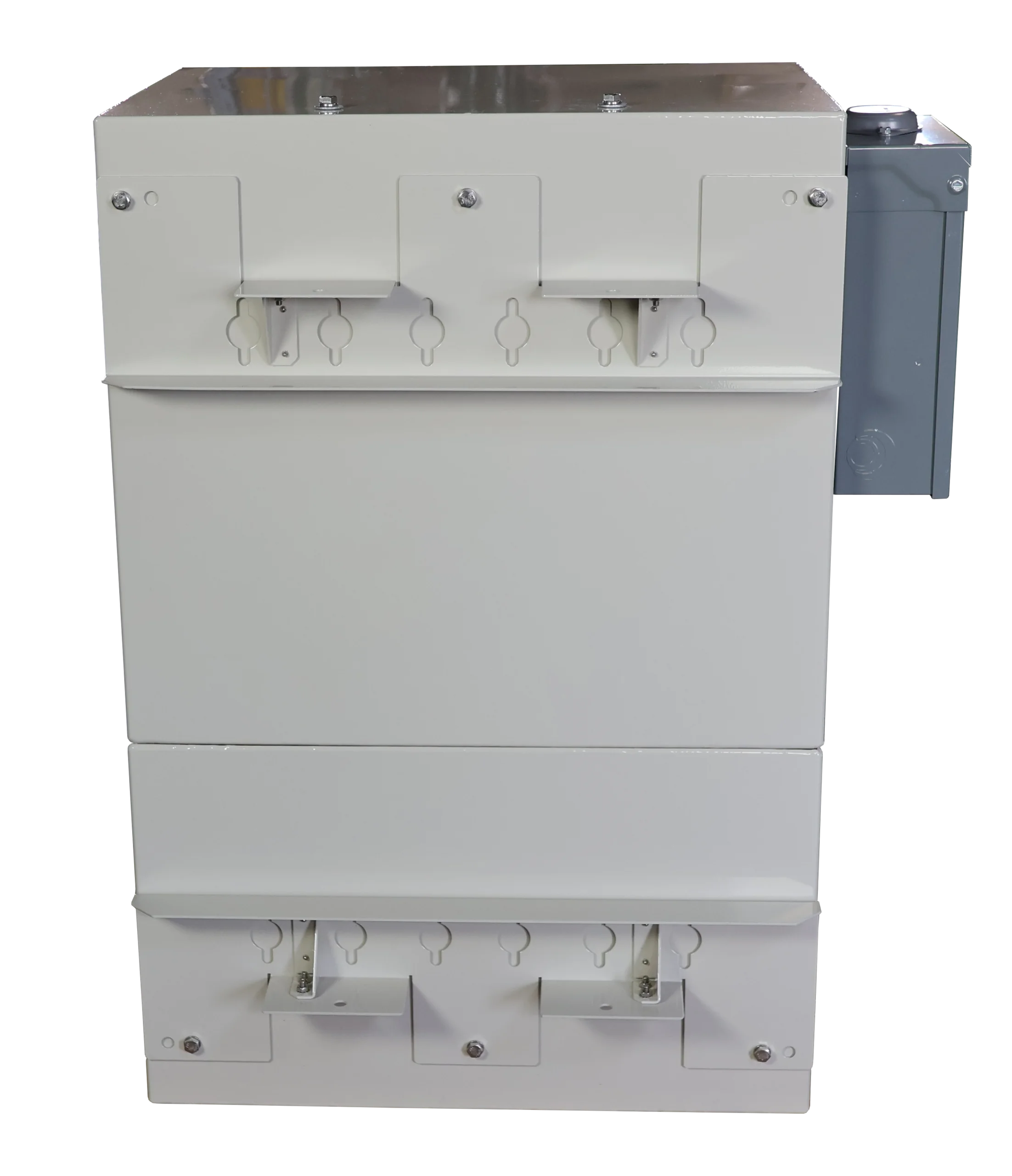

Mounting Type  – Wall or H-Frame (pole mount kit optional)

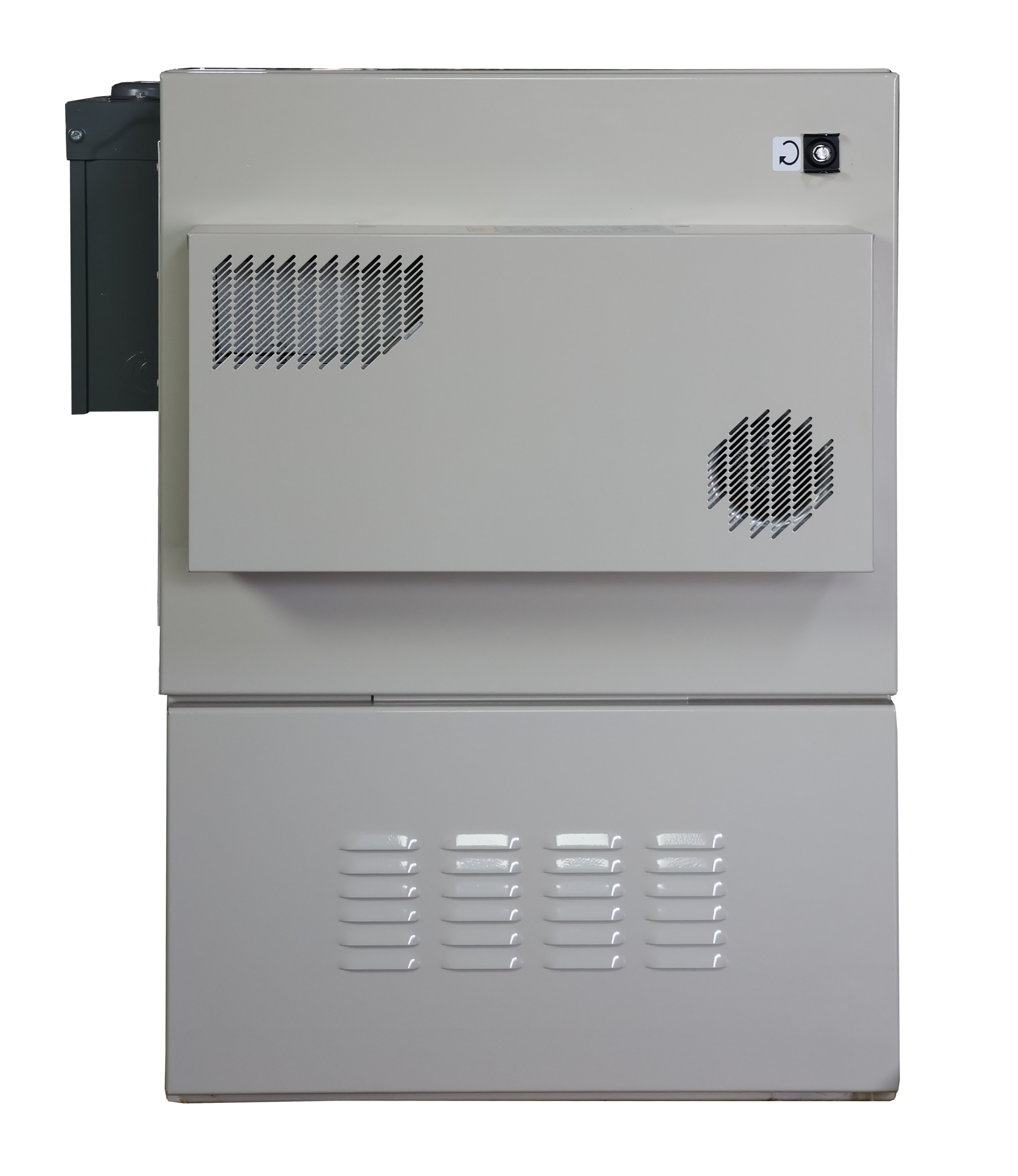

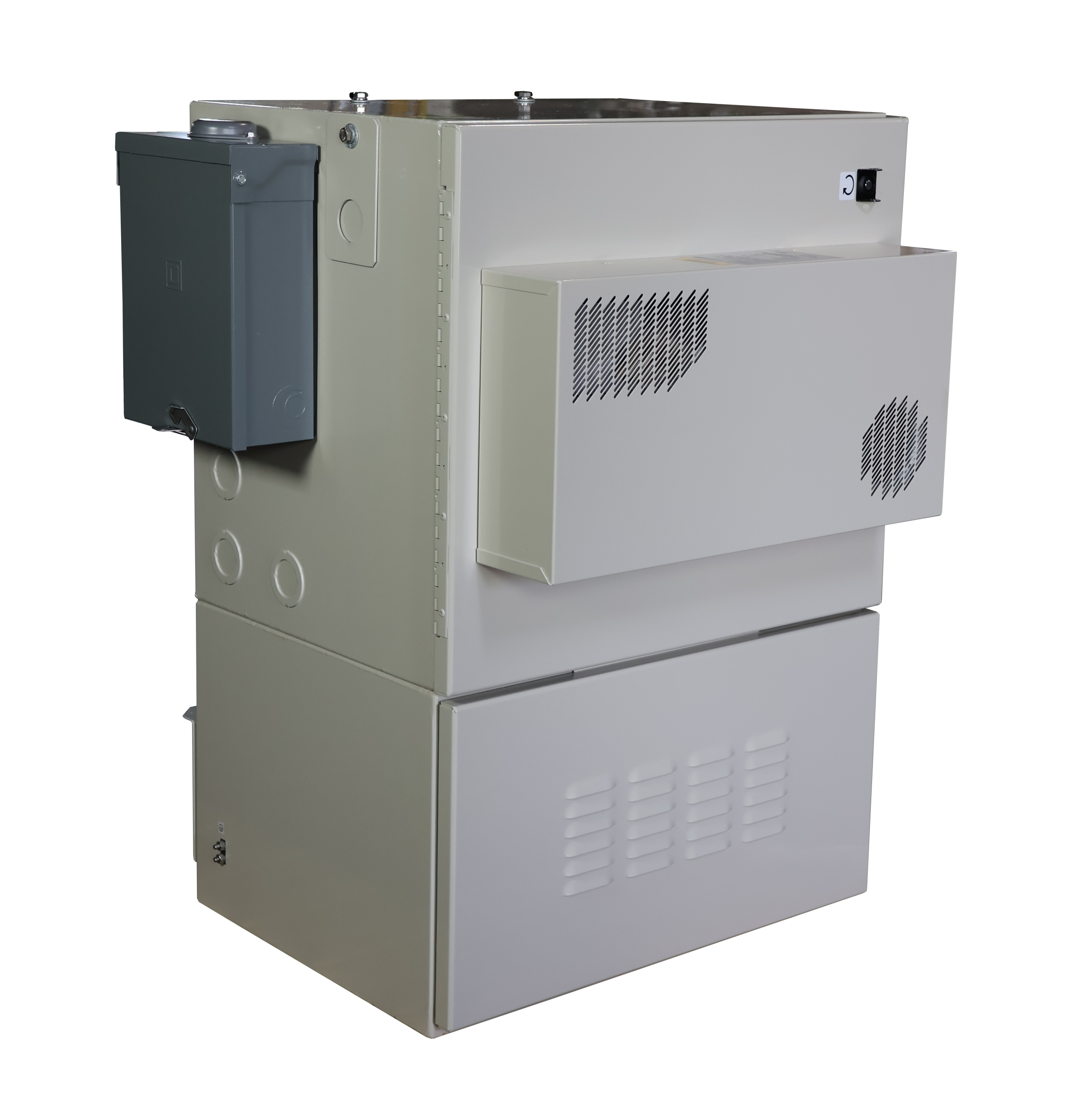

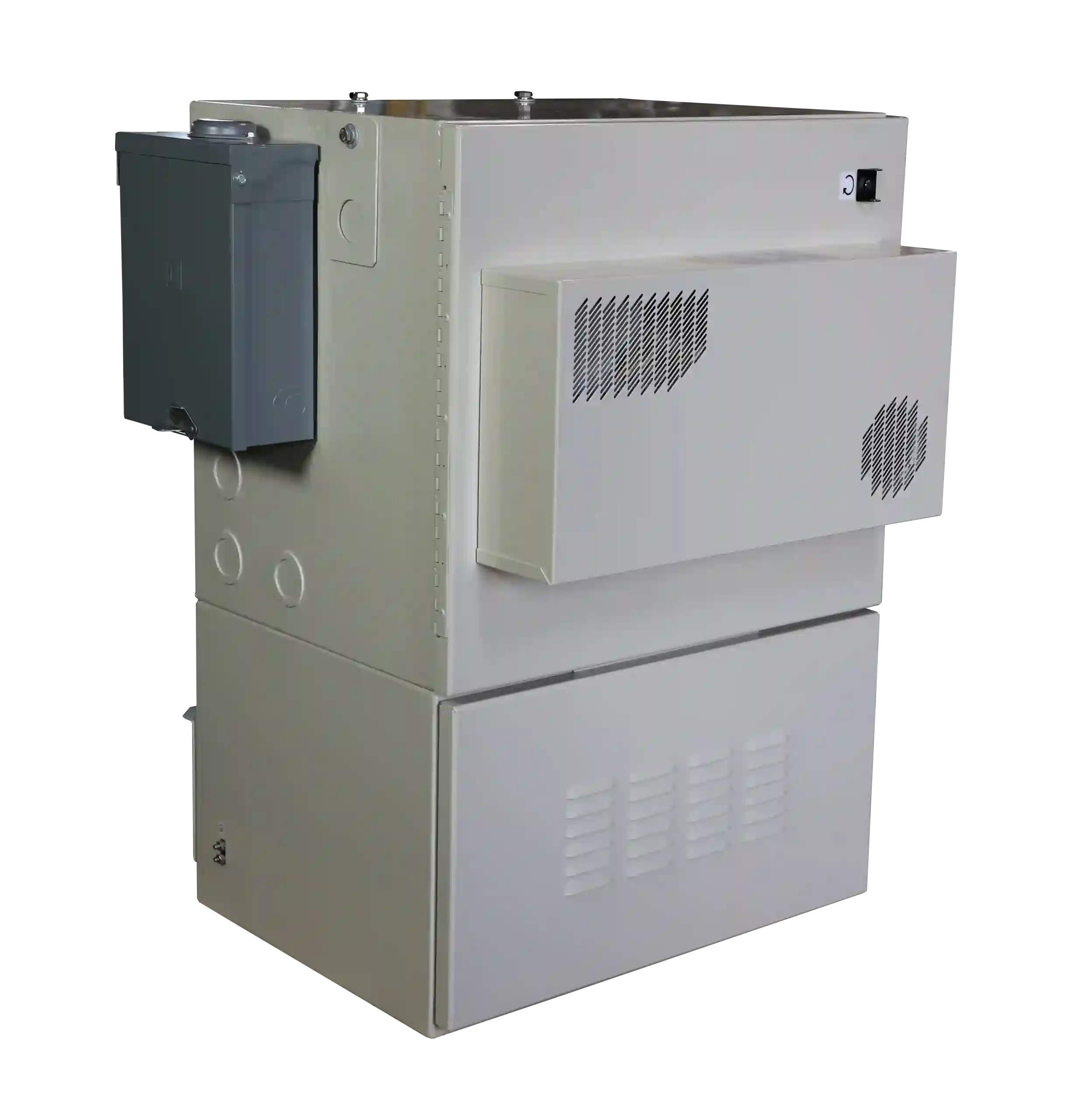

Thermal Management  – 580W 48VDC Heat Exchanger (mounted on the front door)

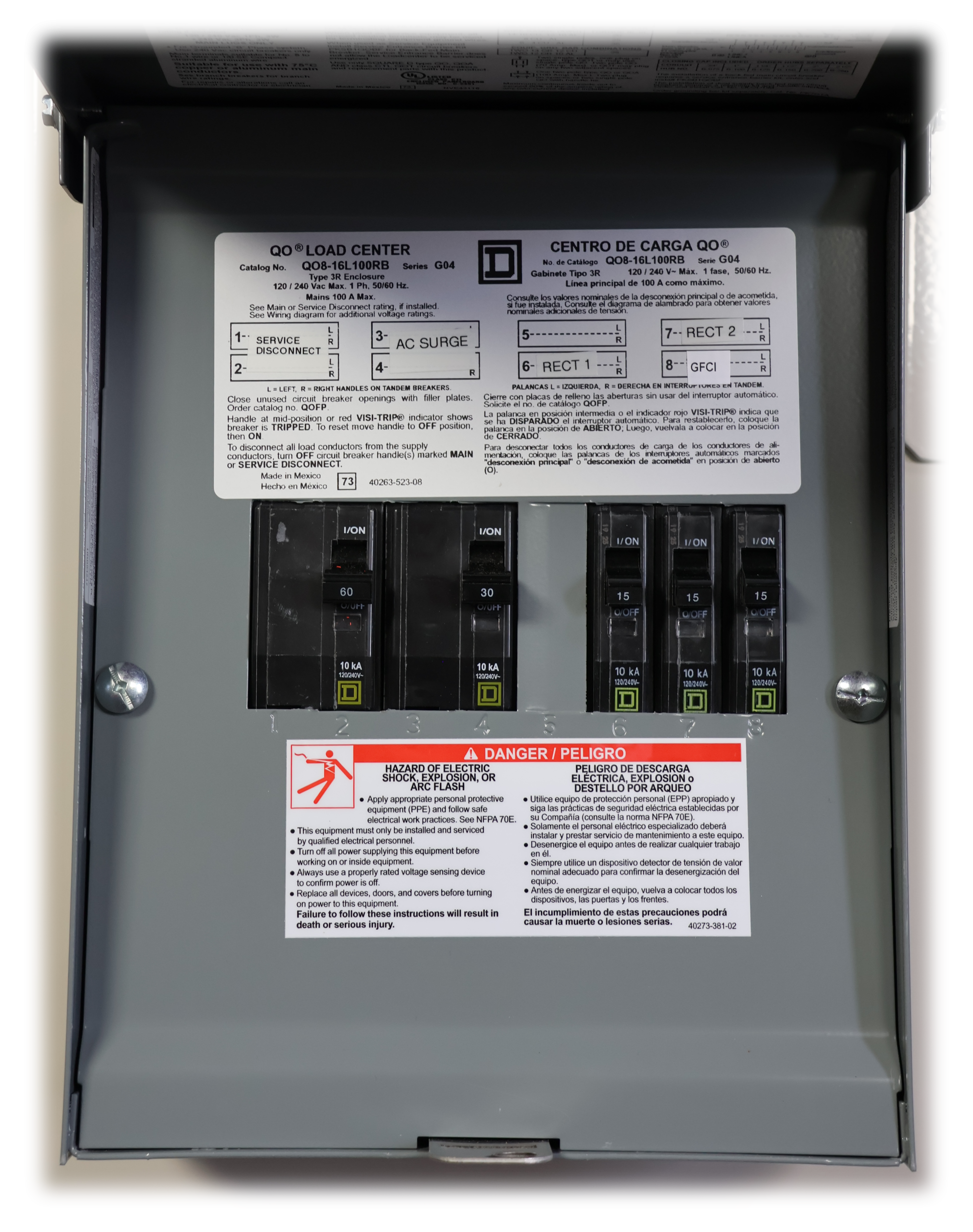

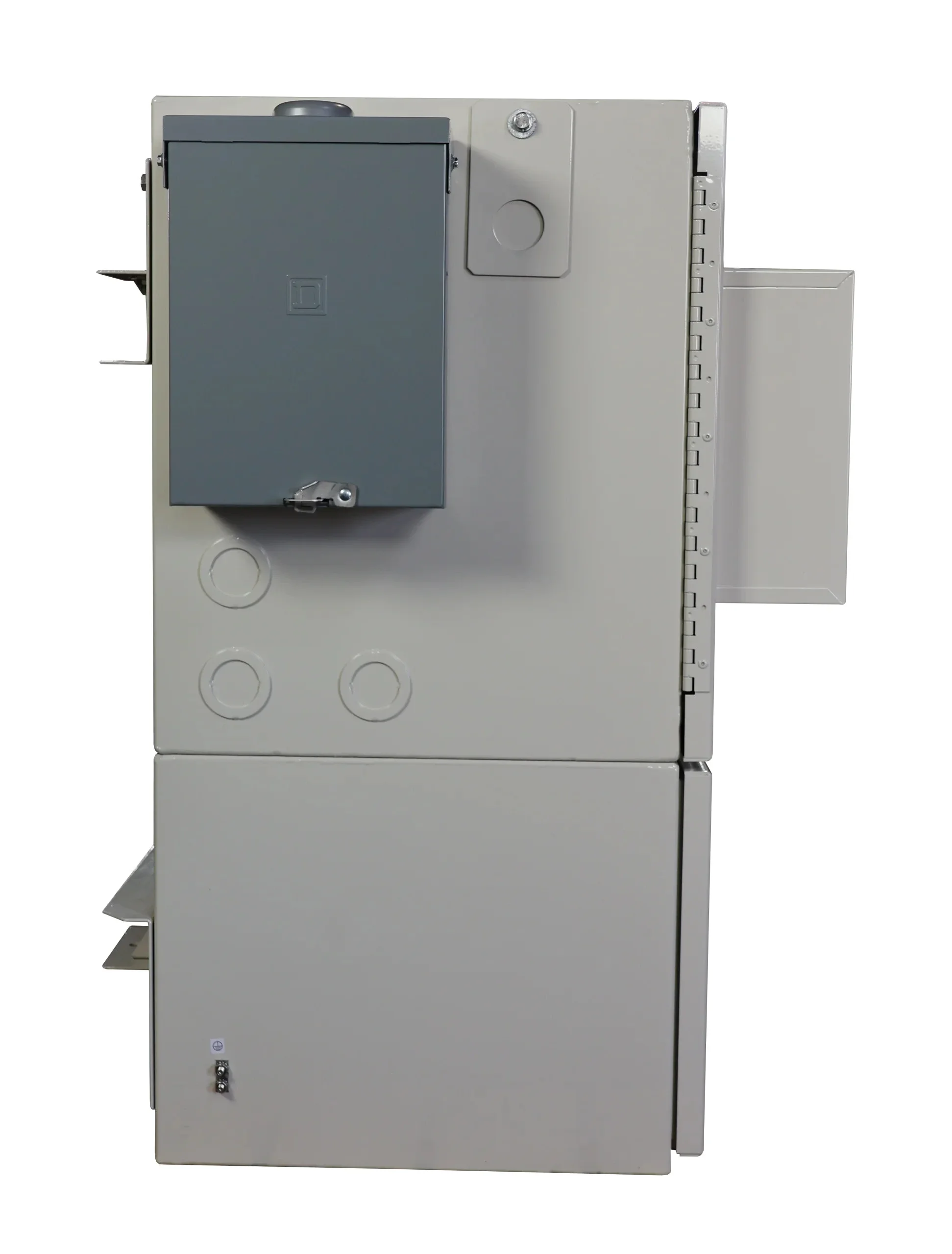

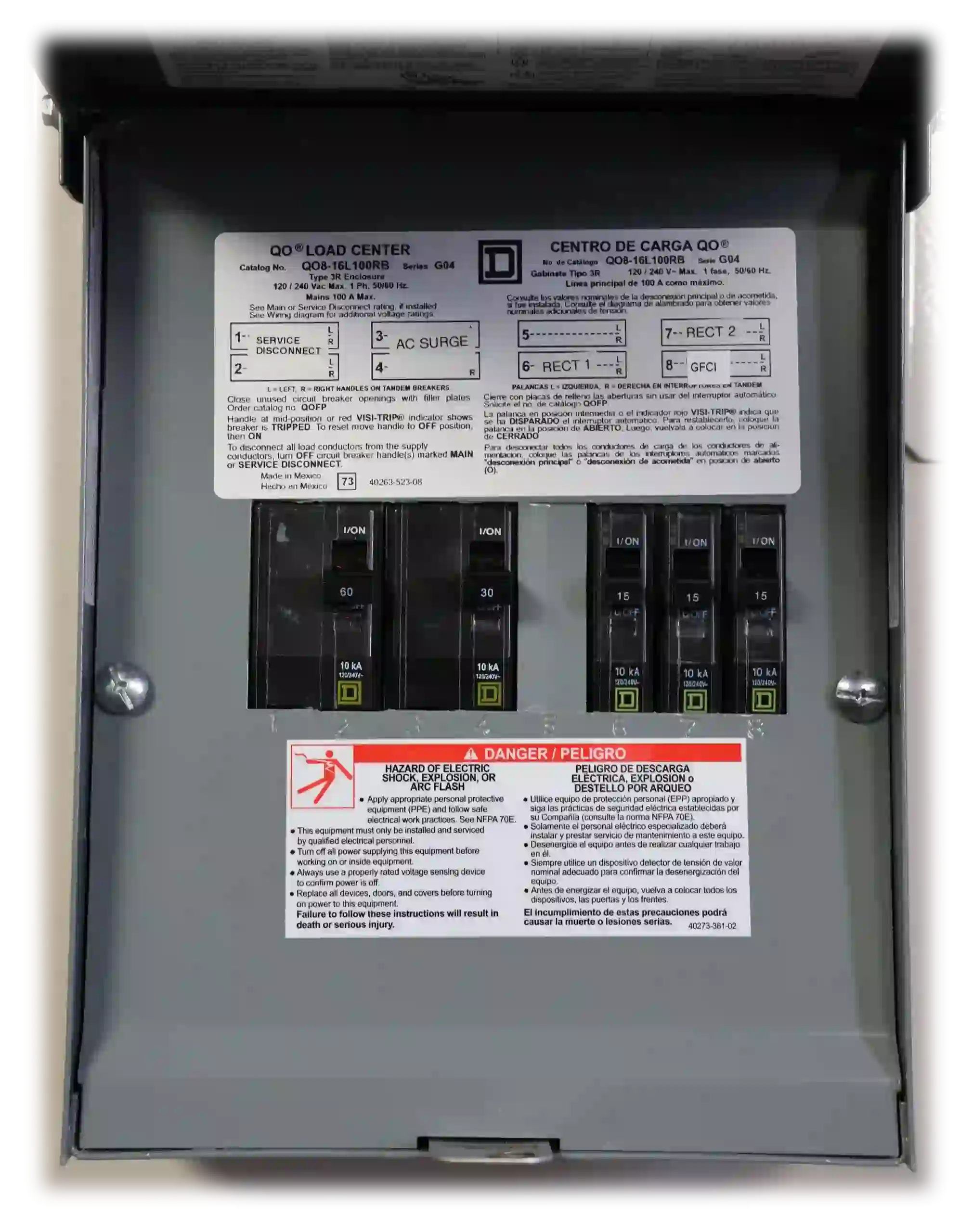

AC Load Center – 100 amp Square D QO Load Center (or an 8-position load center)

Grounding – 8-position, 2-hole ground bar

Security/Alarms  – Pad lockable, 216-style lock, door alarm, and an overheat (high-temperature) thermostat

Weight (empty) – 190 lbs

Battery Support – Supports one string of 48V (or two 24V) 100Ah Ni-Cd or VRLA batteries
