Commscope 12-port Fiber Optic Service Terminal MHT-12H200U-A1000F

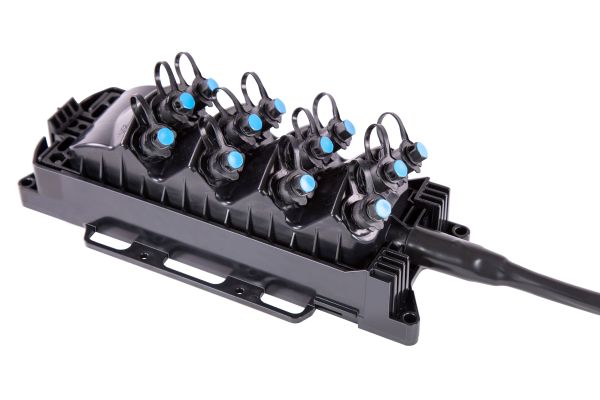

The Commscope MHT-12H200U-A1000F is a 12-port hardened fiber optic service terminal, part of Commscope’s Multiport Service Terminal (MST) product line. It is designed for Fiber-to-the-Home (FTTH) deployments in the outside plant environment
Commscope MHT Fiber Optic Multiport Service Terminal, 12-port, HMFOC, 24F dielectric flat loose tube cable, 1000 ft
Key features
12-Port terminal: Provides twelve fiber connections for optical drop cables.
Hardened multi-fiber optical connectors (HMFOC): The terminal is factory-terminated with HMFOC jacks that are environmentally sealed to withstand the elements of the outside plant environment. The “plug-and-play” nature of these connectors allows for faster and lower-cost installations.
24-fiber dielectric cable: The terminal comes with a 1,000-foot (304 meter) stub tail of dielectric flat loose tube cable.
No internal splitter: Unlike some other MST models, this particular terminal does not include an internal splitter, making it suitable for fiber-rich or “fiber indexing” applications.
Versatile mounting: The terminal can be mounted in multiple ways, including on a pole, pedestal, strand, or in a handhole.

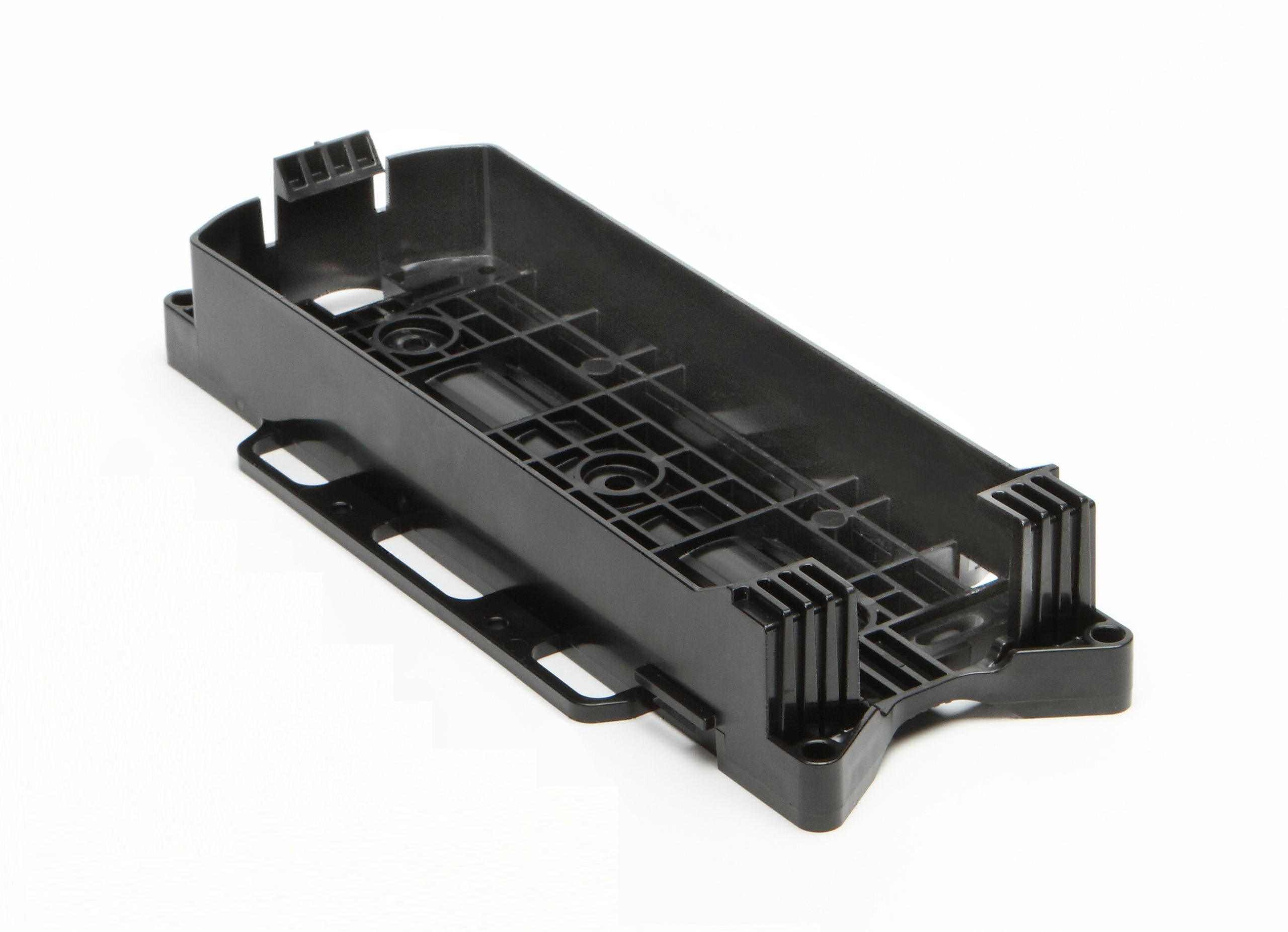

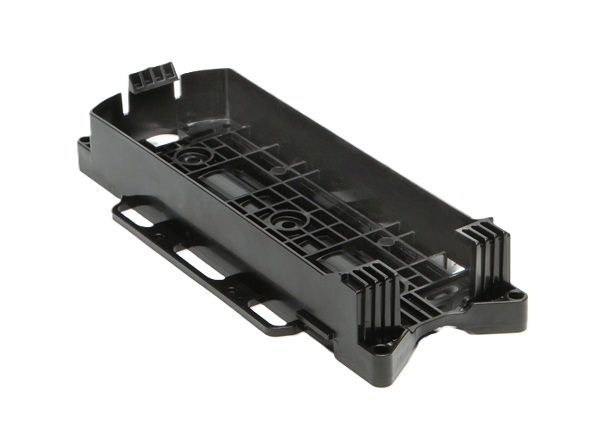

Rugged construction: The enclosure is built to withstand harsh outdoor conditions, with qualifications that include IP68 waterproofing and UV resistance.

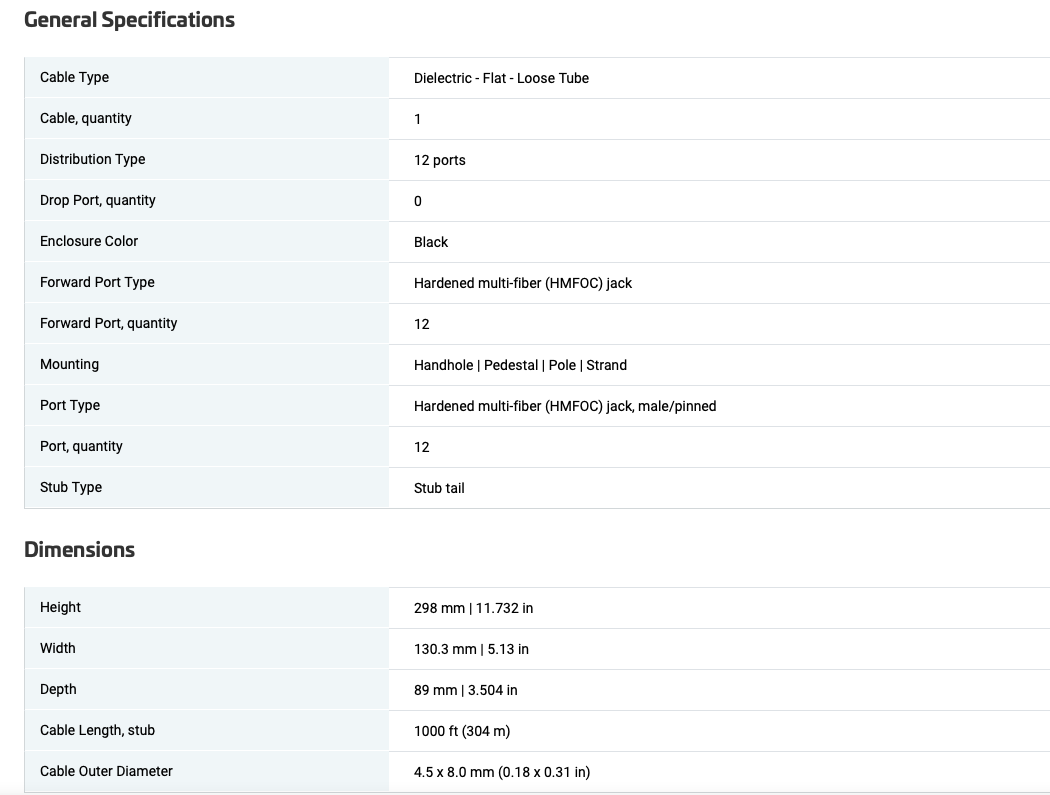

Technical specifications
Dimensions (terminal):
Height: 298 mm (11.732 in)
Width: 130.3 mm (5.13 in)
Depth: 89 mm (3.504 in)
Cable specifications:
Length: 1000 ft (304 m)
Type: 24-fiber, dielectric flat loose tube
Optical performance:
Fiber type: G.657.A1/A2
Operating wavelength: 1260–1635 nm
Typical connector insertion loss: 0.16 dB
Environmental conditions:
Operating temperature: -40°C to +70°C (-40°F to +158°F)
Environmental space: Can be used above ground, below ground, or buried
