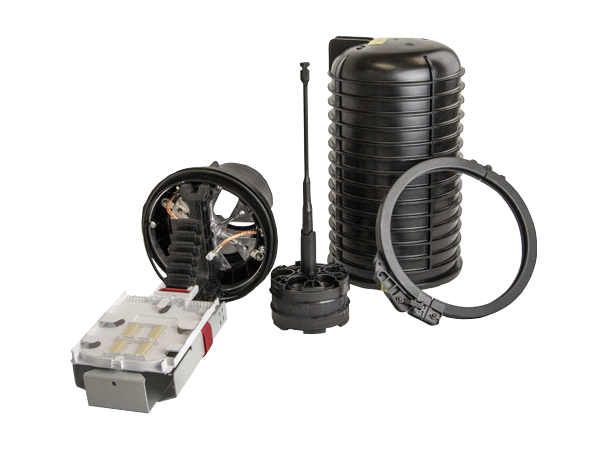

Commscope 450 B Splice Case FOSC450-B6-6-NT-0-B3V

Description

This specific configuration includes the following features:

• Capacity: Supports a maximum splicing capacity of 144 single fusion splices or 864 mass fusion splices.
• Port Configuration: Features 6 round cable ports, each utilizing compressed gel seals for cable diameters up to 0.984 inches (25 mm).
• Grounding & Testing: Includes 3 ground feed-through lugs for electrical bonding and a pre-installed flash test valve for pressure testing.
• Mounting & Environment: Suitable for aerial, pedestal, buried, and underground environments (up to 5 meters depth).
• Physical Dimensions: Measures approximately 24 inches (610 mm) in length and 9.8 inches (249 mm) in diameter.
• Trays: This specific model (NT) comes with no pre-installed splice trays, though it includes a standard B6 size fiber storage basket.
