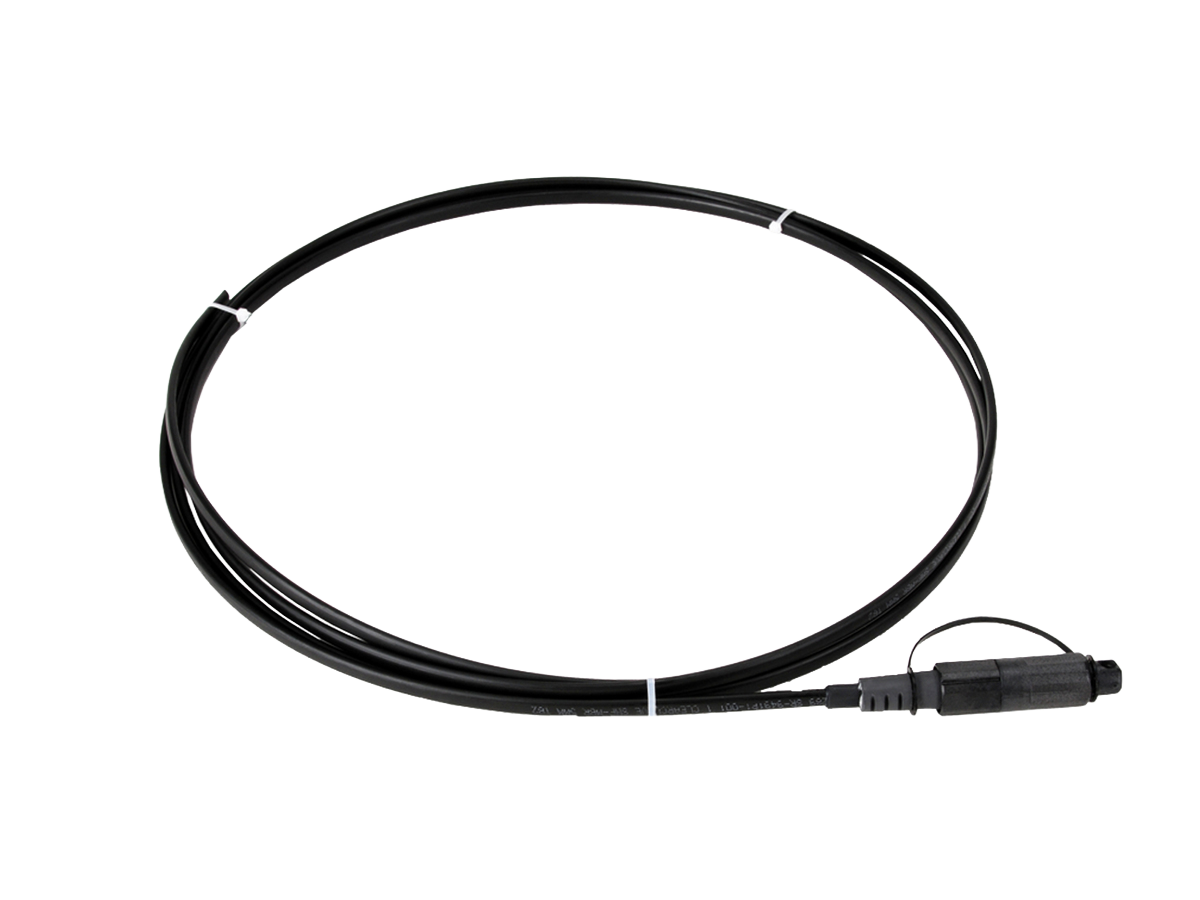

New Corning OptiTap® Single-Mode Fiber Optic Drop Cable Assembly 4301UB1TD150F-P

Corning OptiTap® Single-Mode Fiber Optic Drop Cable Assembly (4301UB1TD150F-P) is a 150-foot, single-fiber (1F) cable designed for rapid deployment in optical access networks. Corning manufactured this specific model to feature a toneable, gel-free indoor/outdoor SST-Drop™ design, which allows for easier locating after burial and eliminates the need for a transition at the indoor ONT.

$70.00

27 in stock

Description

Product Specifications

  • Part Number (MPN): 4301UB1TD150F-P.
  • Length: 150 feet (approx. 45 meters).
  • Fiber Type: Single-mode (OS2).
  • Fiber Count: 1 Fiber (1F).
  • Cable Design: SST-Drop™, toneable, and gel-free.
  • Connector Type: Factory-terminated SC APC OptiTap® connector on one end, with a pigtail/stub end on the other.
  • Environmental Rating: Indoor/Outdoor; UV-resistant and waterblocked.
  • Mechanical Strength: Integral pulling eye designed for up to 100 lb of maximum pulling tension.



Key Features

  • Ease of Installation: Specifically designed to reduce installation time by using environmentally sealed, hardened OptiTap® connectors that connect quickly to external bulkhead adapters.
  • Toneable Design: The toneable version includes a metallic element that allows the cable to be traced with a locator when buried.
  • Compact SST-Drop™: Features a 2.9 mm riser-rated (OFNR) drop cable centered inside the traditional SST-Drop dielectric, enabling it to transition from outdoor environments directly to an indoor ONT.



Additional information

Weight 6 lbs
Dimensions 20 × 20 × 3 in
