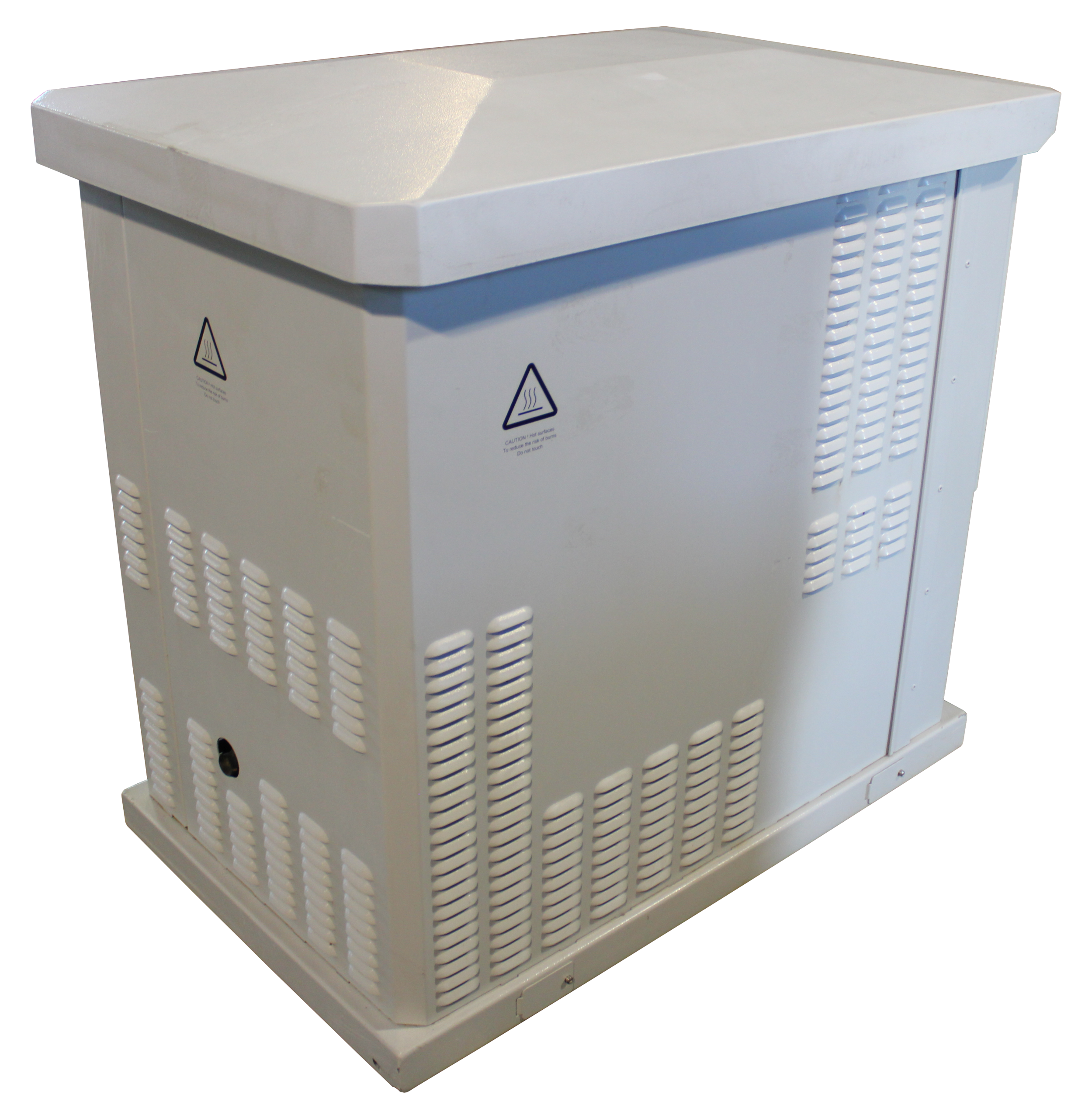

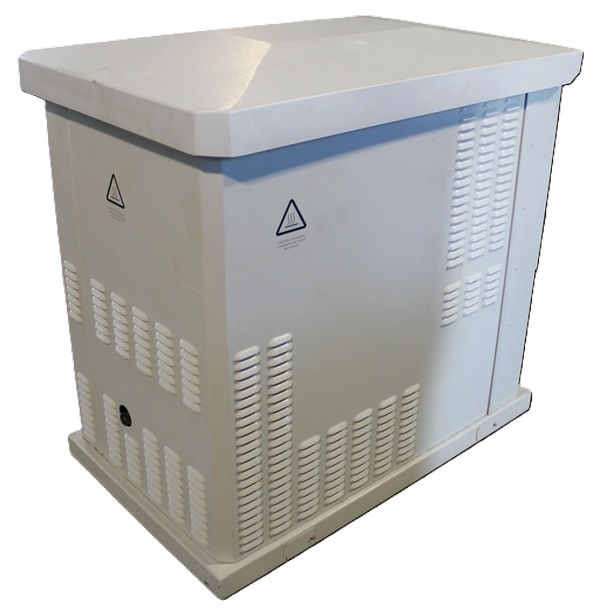

DELTA ELECTRONICS POWER GEN DC GENERATOR 7500 – ESOG150-PCA01 (Used)

The Delta Electronics PowerGen 7500 (Model: ESOG150-PCA01) is a stationary 7.5 kW outdoor DC unit specifically designed for communication networks, emergency backup, and off-grid power solutions. It is optimized for efficiency by providing direct DC output, typically for –48VDC battery plant charging, which eliminates the conversion losses associated with standard AC generators.

$1,350.00

13 in stock

Description

Here are some key features and details about this generator:
  • Power Output: 7.5KW max output, with a maximum current of 144 Amps.

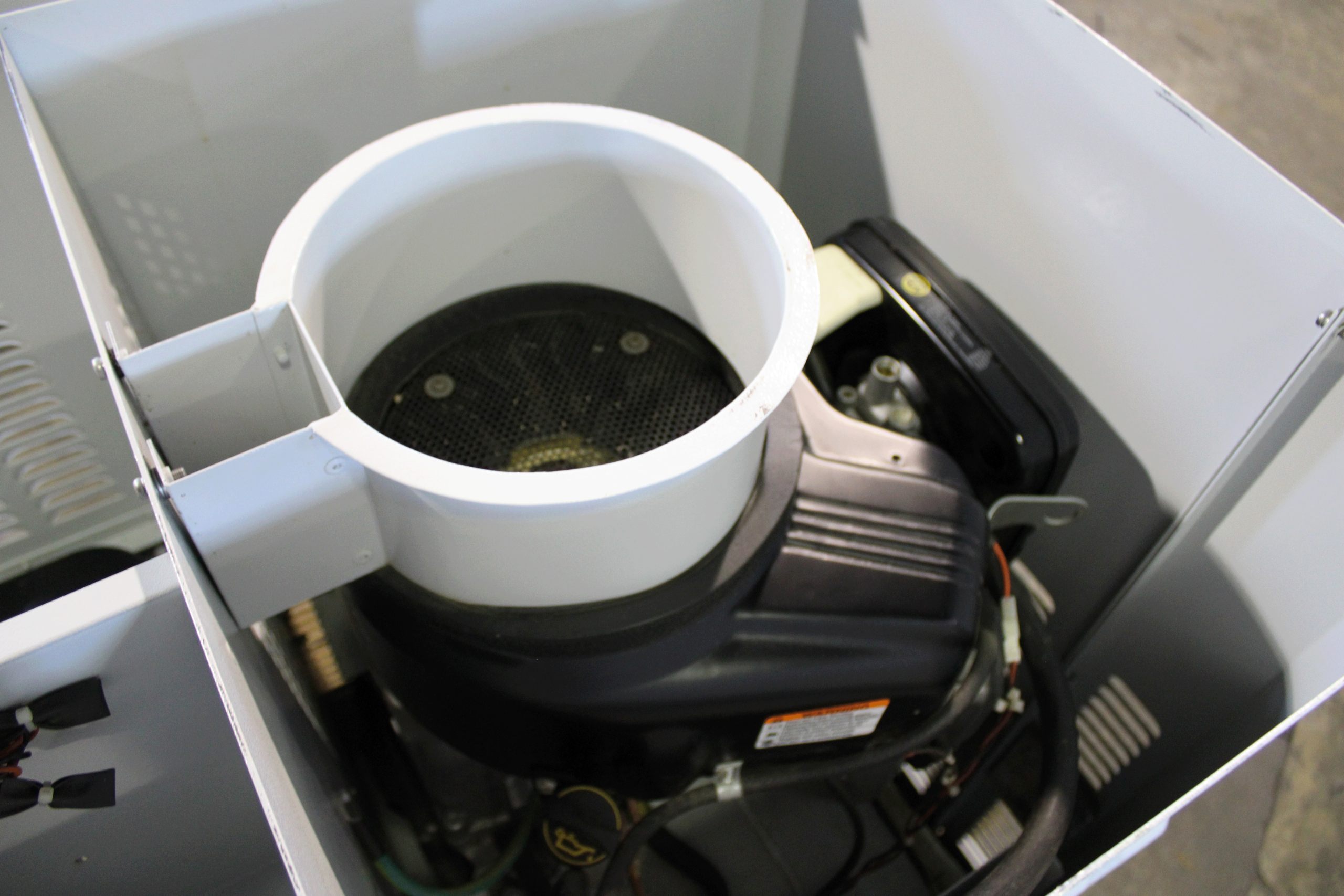

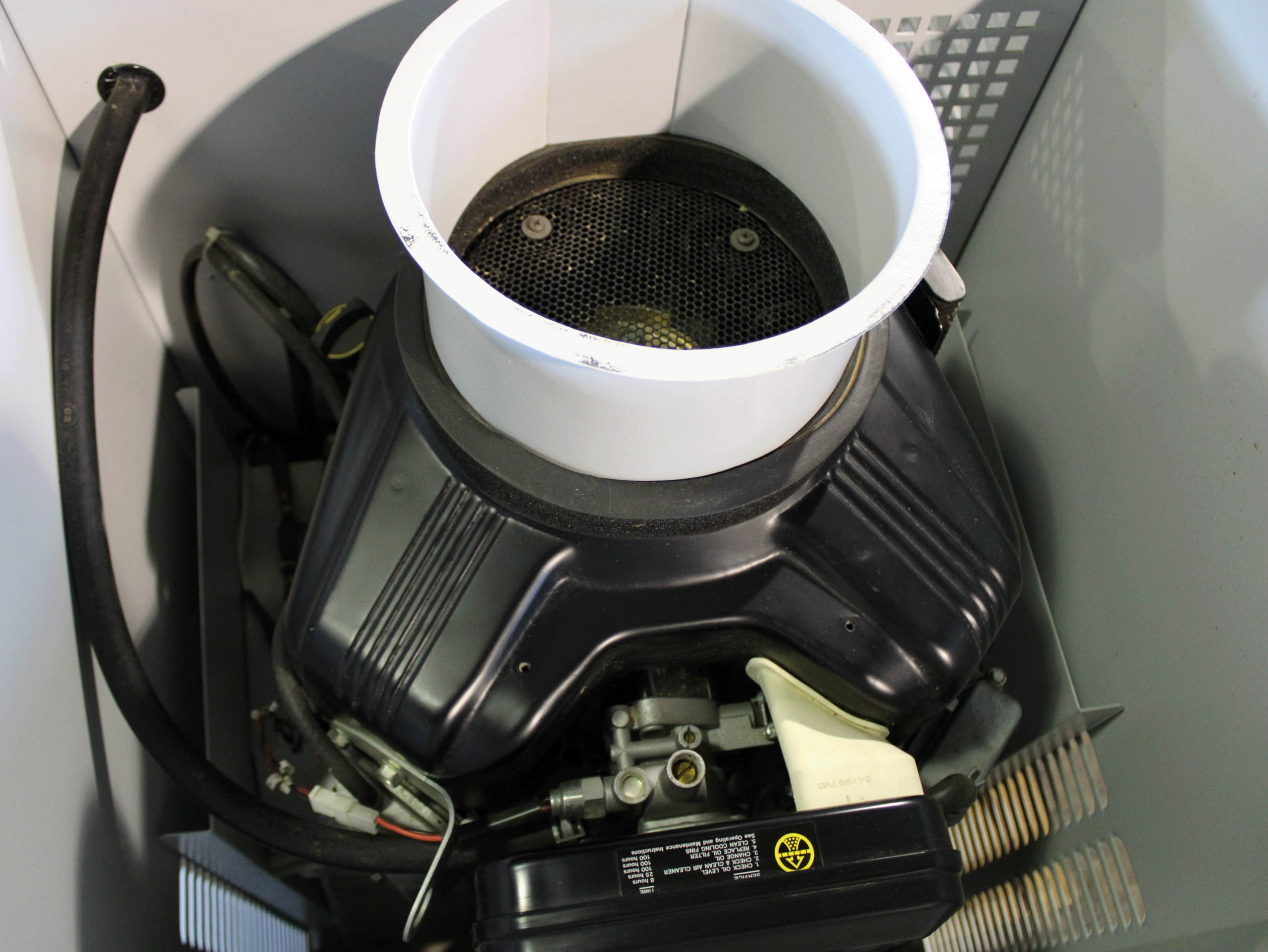

  • Engine: Powered by a Briggs & Stratton 570cc Vanguard Engine.

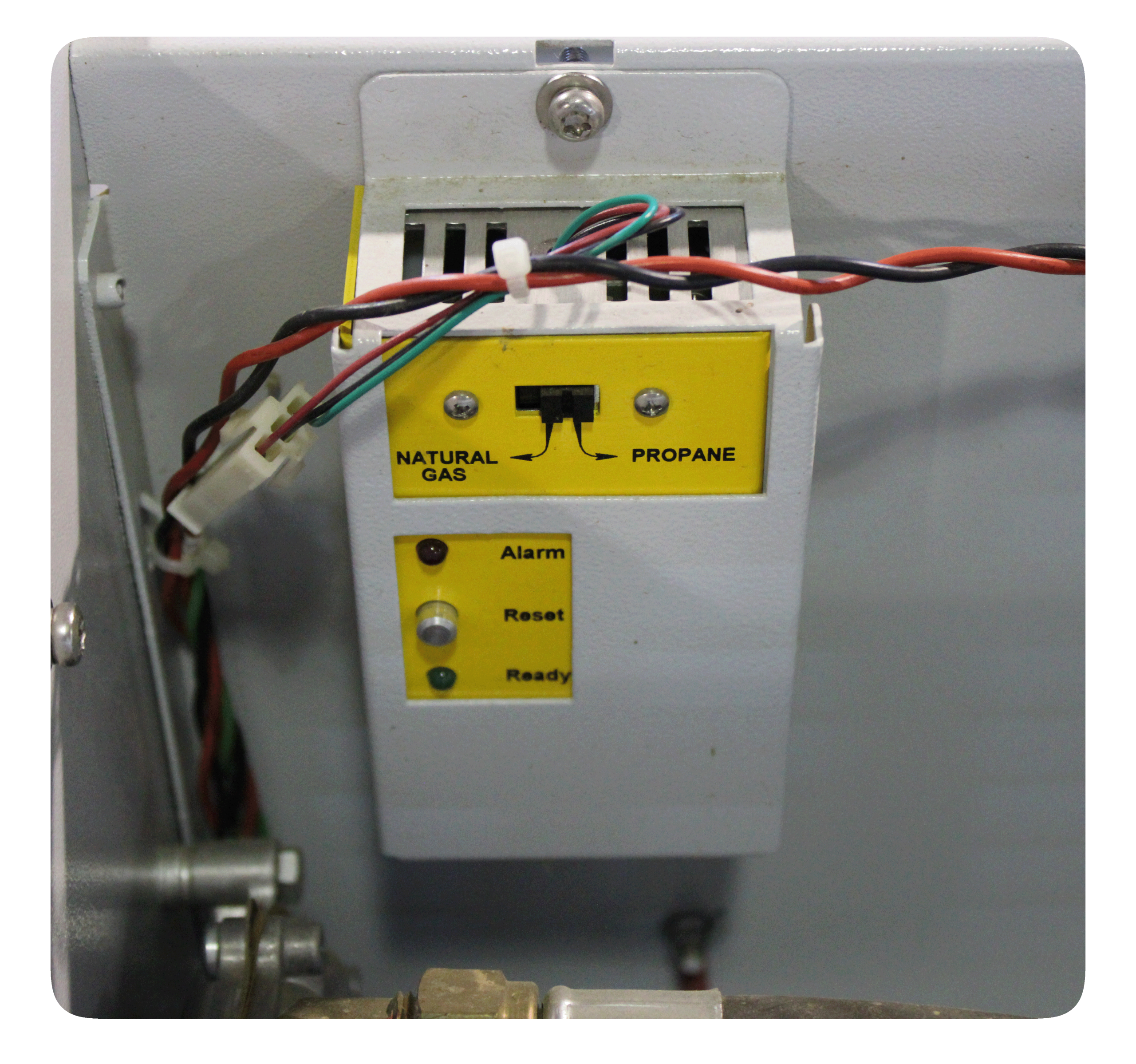

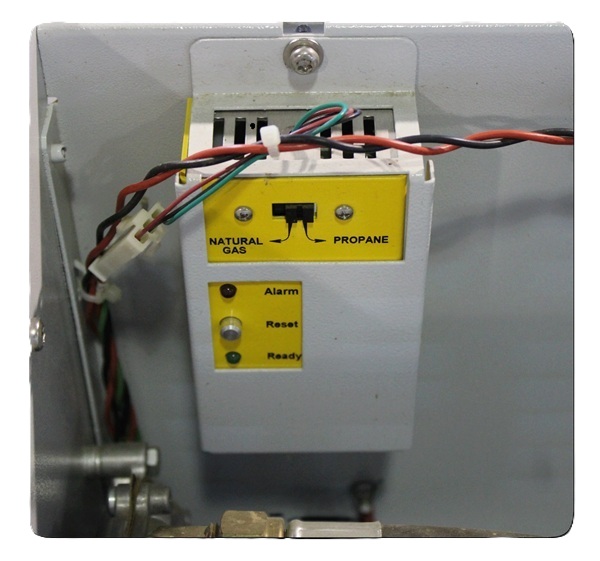

  • Fuel Source: Operates on either propane (default) or natural gas.
  • Voltage: Produces -48VDC (negative ground, configurable to -48 to -56 Vdc).
  • Usage: It is a stationary generator.
  • Dimensions: Approximately 42″ L X 27″ W X 40″ H.
  • Operation: Features automatic operation in Auto-Mode and includes an engine run hour meter, engine start counter, and configurable cycling exercise self-test.
  • Monitoring & Control: Equipped with an LCD with LED indicators, Form C Alarm Dry Contacts, Remote EPO, and a WEB GUI and SNMP for remote monitoring and control.
  • Safety & Compliance: UL Listed, including UL142 fuel tank, and meets FCC Part 15 Class A standards.
