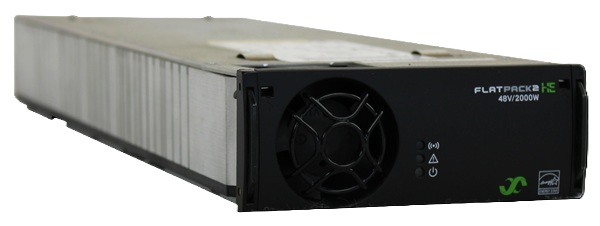

Eltek Flatpack 2 High Efficiency 2000W -48VDC rectifier, 40 amps 241115.105

Specifications:

Part number: 241115.105
Power: 2000 W at nominal input
DC output: -48 VDC with an adjustable range of 43.5–57.6 VDC
Current: Provides a maximum of 41.7 Amps at 48 VDC.
Efficiency: Features a high efficiency rating of over 96%, helping to reduce power consumption and heat dissipation.
Input voltage range: 85–300 VAC (nominal 185–275 VAC).
Dimensions: 109 x 41.5 x 327 mm (4.29 x 1.63 x 12.87 inches).
Weight: 1.95 kg (4.3 lbs).
Current sharing: Allows for parallel operation with other rectifiers, with current sharing accurate to ±5% of the maximum current.
Protection: Includes overvoltage shutdown, high-temperature protection, and short-circuit protection.

Key features:

Proven reliability: The Flatpack 2 HE family has a long history of dependable performance in the field.
Modular and hot-pluggable: The design allows for easy and rapid installation or replacement without shutting down the system.
High power density: The compact design saves valuable space in equipment cabinets.
Wide operating temperature: The rectifier can function in a broad range of temperatures, from -40°C to +75°C.
Global compliance: Certified to meet international safety and EMC standards, including CE and UL.

Applications:

The Flatpack 2 241115.105 rectifier is ideal for a variety of power systems, including:

Telecommunications: Powering radio base stations, mobile switching centers, and fiber-optic networks.
Data centers: Providing backup power and ensuring system reliability.
Industrial applications: Supporting control and protection systems, as well as SCADA infrastructure for power utilities.
Renewable energy: Used in hybrid solar power installations.

$275.00

270 in stock

Description
Additional information

Description

The Eltek Flatpack 2 High Efficiency (HE) 2000 W rectifier 241115.105 is a compact, hot-pluggable module used in 48 VDC power systems for telecommunications and industrial applications.

This module converts AC power to stable DC power with superior energy efficiency.

Additional information

Weight	3 lbs
Dimensions	11 × 6 × 2 in
