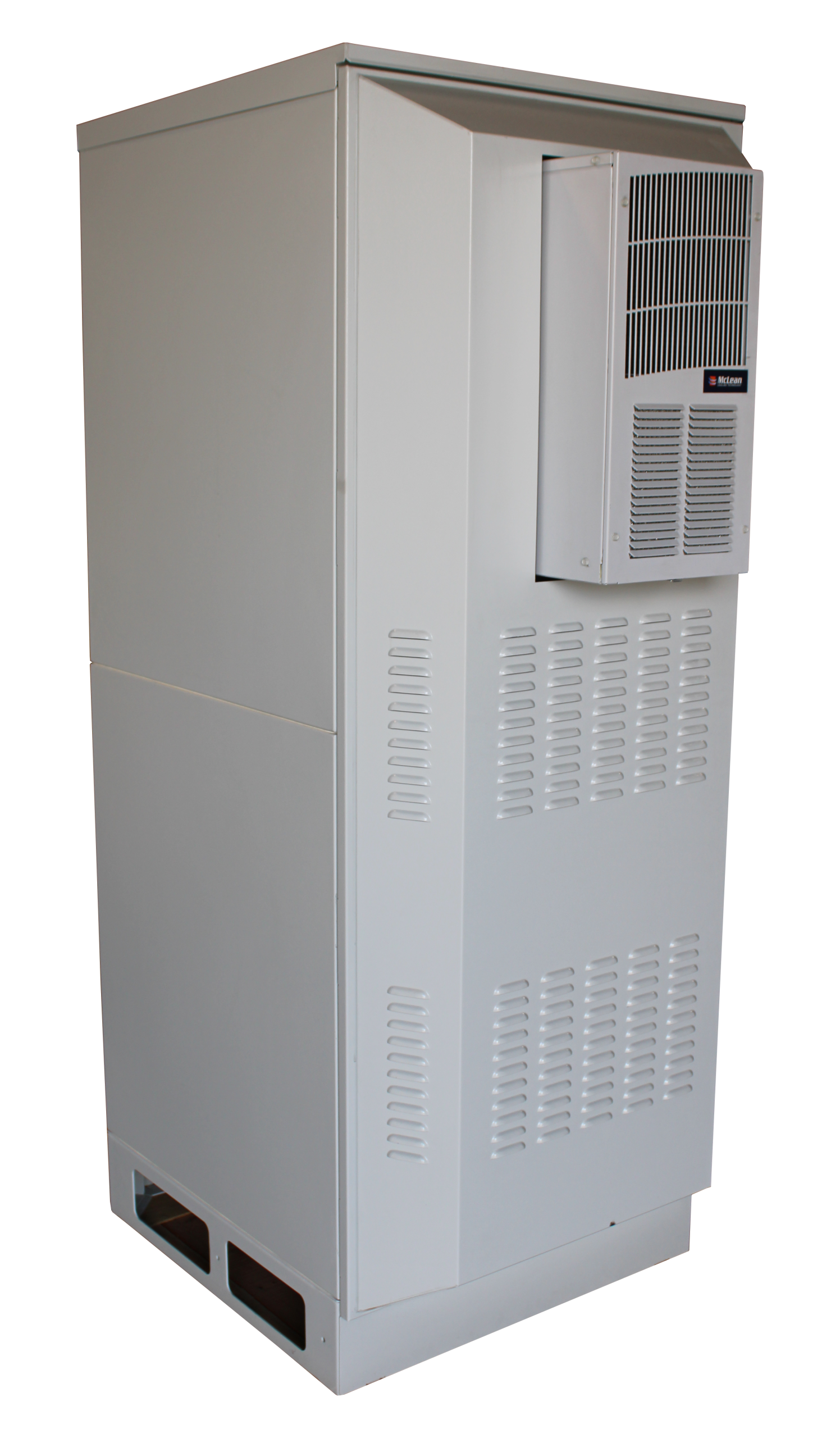

Eltek Outdoor Telecom Flatpack 2 Power and Equipment Cabinet BBU New

Description

Physical & Structural Specifications

• Dimensions: 30″ Width × 40″ Deep × 70″ Height
• Rack Flexibility: Equipped with universal, adjustable mounting rails supporting both 19″ or 23″ configurations.
• Insulation: Fully insulated double-walled architecture designed to guard internal electronics from extreme ambient solar heating and freezing conditions.
• Battery Capacity: Specially engineered to house 1 full battery string on its dedicated lower shelving area for local backup deployment.

Cooling & Thermal Efficiency

• Ventilation: Active heat dissipation managed via a heavy-duty -48 VDC exhaust fan system.
• Design Advantage: Utilizes native DC power straight from the Flatpack shelf, allowing the internal fans to run uninterrupted off the battery banks during an AC grid failure.

Integrated Eltek Flatpack 2 Power System

• DC Core System: Integrates the landmark Eltek Flatpack 2 Rectifier Shelf Platform.
• System Controller: Monitored natively via an embedded Smartpack or Smartpack2 controller module, enabling highly intelligent, automated battery health testing and real-time remote alarm reporting.
• Efficiency: Compatible with standard 2000W or 3000W Flatpack 2 HE rectifiers boasting up to 96.5%+ power efficiency, significantly reducing localized grid heat loss inside the sealed cabinet shell. FlatPack2 Rectifiers (241115.105) Sold Separately
