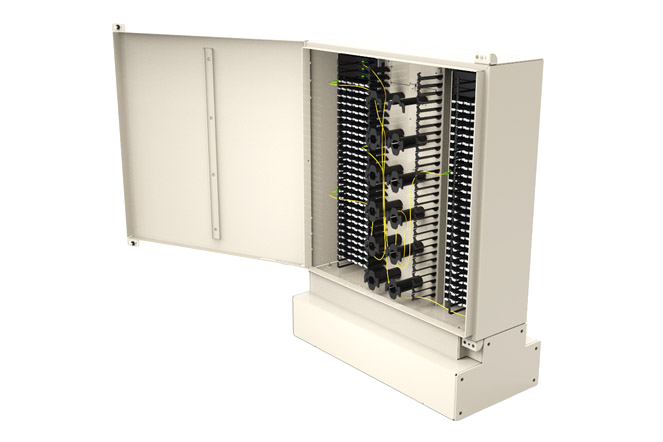

New CommScope FDH 5000 Fiber Distribution Hub FD5M-864S00DEB5

Description

Key Features

• Modular Design: Utilizes LC CMOD styled modularity to maximize fiber density while remaining compact (approx. 27.5”W x 27.5”H x 13”D for the cabinet shell).
• Deployment Flexibility: The unit comes without pre-installed splitters, allowing for custom configurations using symmetrical splitter modules as needed.
• Serviceability: Features front-access for easier maintenance and technician interaction.

Product Specifications

• Capacity: 864 distribution ports and 144 feeder fibers.
• Cable Type: Pigtails-ribbon with a 100 ft (30.48 m) cable length.
• Splitter Slots: Includes 9 splitter slots for modular expansion.
• Mounting: Designed for pad mounting above ground.
• Material: Constructed from powder-coated steel in a “putty white” color for environmental durability.

Physical Dimensions

As detailed by CommScope, the enclosure is classified as “Large” with the following dimensions:

• Height: 35.5 inches (901.7 mm).
• Width: 27.5 inches (698.5 mm).
• Depth: 13 inches (330.2 mm).
