Splice Case

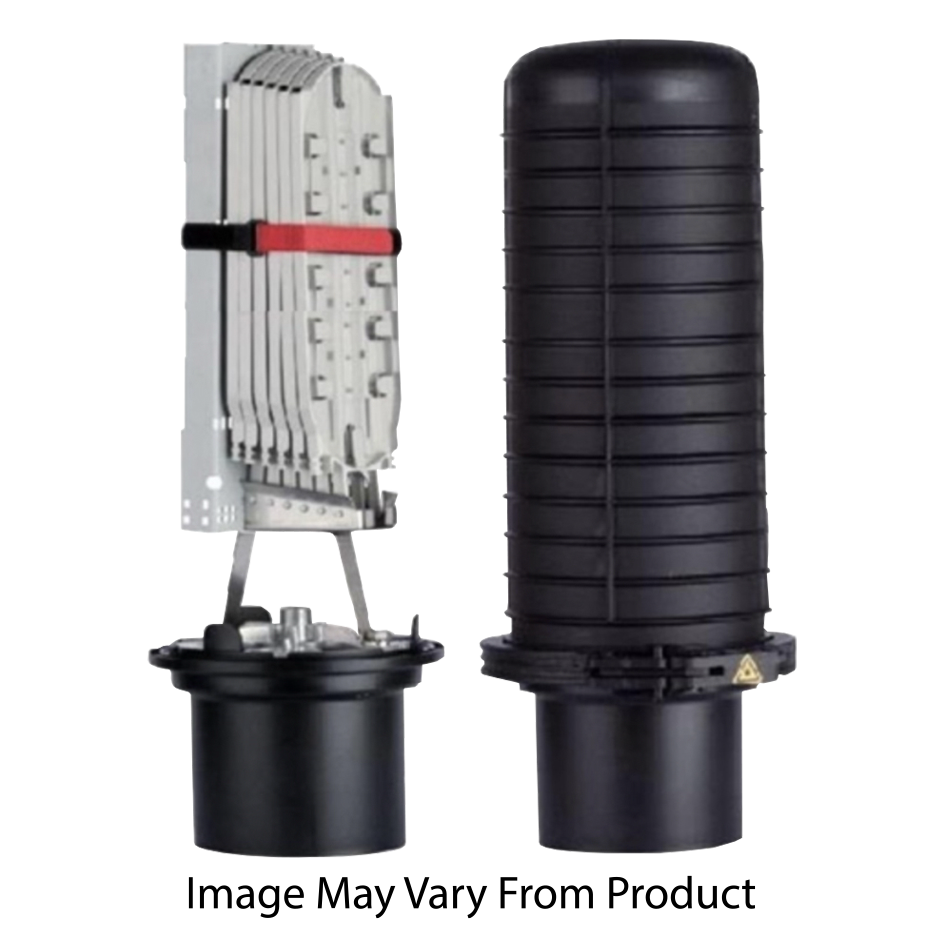

Commscope FOSC 450 B Splice Case FOSC450-B6-6-24-1-B3V

The CommScope FOSC 450 B6 Fiber Optic Splice Case (FOSC450-B6-6-24-1-B3V) is a single-ended, round splice case designed for protecting and managing fiber optic cable splices in aerial, pedestal, and underground environments. This specific model features a high-capacity design with gel-sealing technology, allowing for tool-free cable installation and re-entry.

$265.00

7 in stock

Description

This specific configuration includes the following features:

  • Sealing Technology: Uses compressed gel for cable entry instead of heat-shrink, allowing for easier re-entry and cable additions without special tools.
  • Splicing Capacity: Supports a maximum of 144 single fusion splices or 288 mass fusion splices.
  • Port Configuration: Includes 6 round cable ports.
  • Physical Dimensions: Measures approximately 24.016 inches (610 mm) in length and 10 inches (254 mm) in diameter.
  • Environment: Suitable for aerial, pedestal, buried, and underground (up to 5 meters) applications



Included in the Kit

Standard kits for the CommScope FOSC450-B6-6-24-1-B3V typically include:

  • Dome and base with O-ring
  • One pre-installed 24-splice tray
  • 6 cable attachment units
  • 3 ground feedthroughs with a test valve
  • Gel sealing block with compression trigger
  • Fiber routing tubing and miscellaneous hardware
