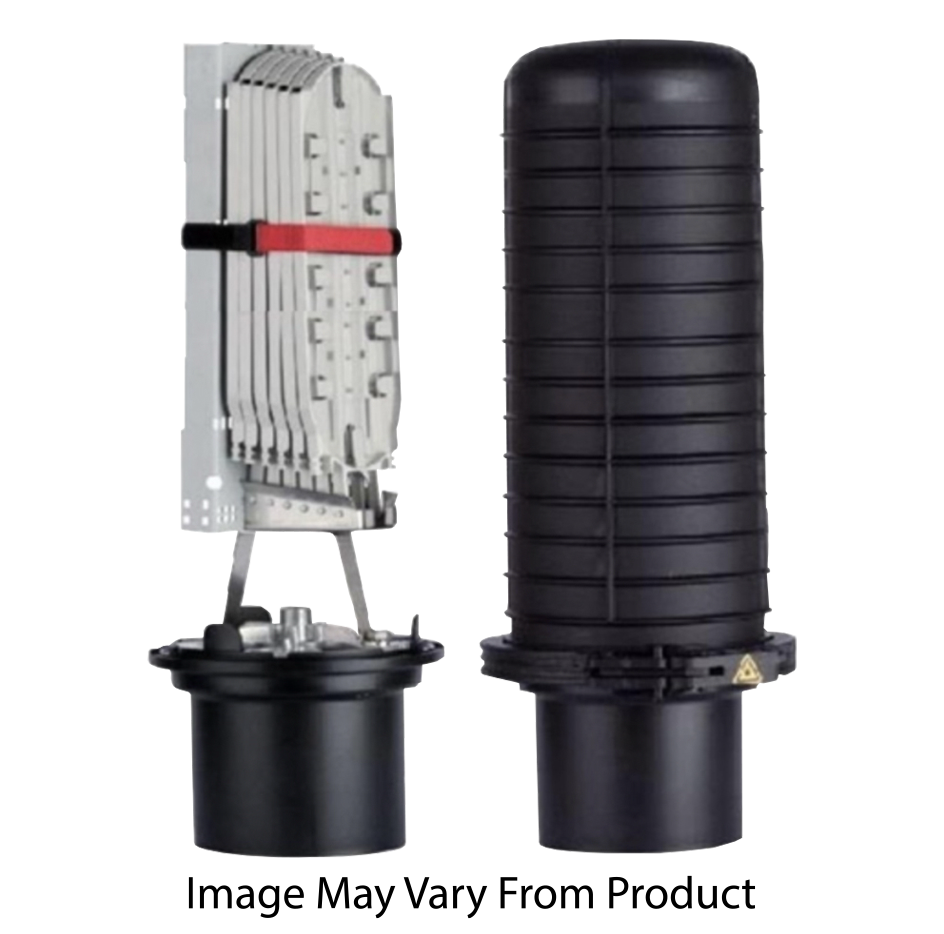

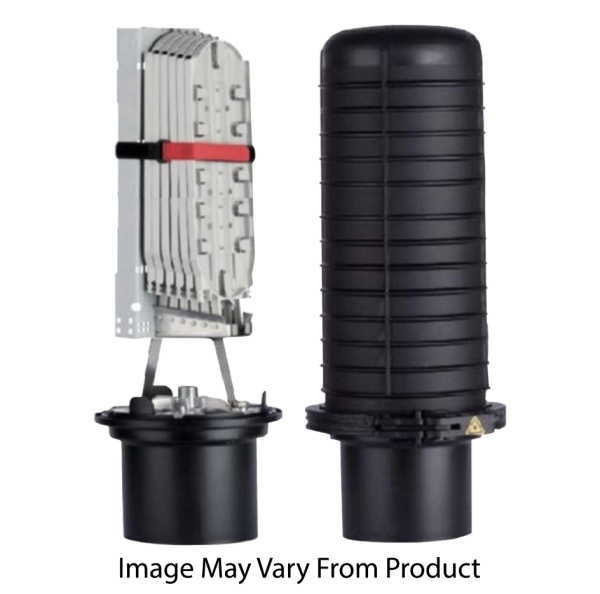

New Commscope FOSC450 A Splice Case FOSC450-A4-4-NT-0-A1V

Description

Key Specifications & Features

This particular configuration is defined by the following characteristics:

• Sealing Technology: Uses compressed gel cable sealing for easy adding or removing of cables without special tools. The dome-to-base seal is maintained by a clamp and O-ring system.
• Port Configuration: Includes 4 round cable ports.
• Splice Capacity: Supports up to 96 single fusion splices or 144 mass fusion splices.
• Trays & Storage: This model is the “NT” (No Tray) version, meaning it includes 0 pre-installed splice trays. It does include a standard A4 size fiber storage basket for slack management.
• Grounding & Testing: Features one ground feed-through lug and a pre-installed flash test valve for seal verification.
• Environment Compatibility: Rated for use in aerial, pedestal, and underground (buried up to 5 meters) installations.

Physical Specifications

• Dimensions: Approximately 19.1 inches (485 mm) in length and 5.9 inches (150 mm) in diameter.
• Material: Constructed from impact-resistant polymer.
• Color: Black.
