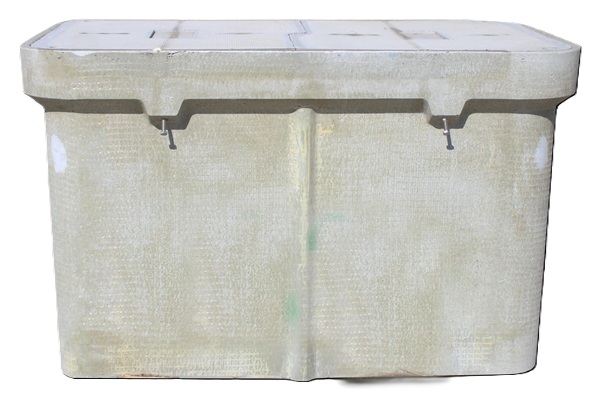

OldCastle 30 x 48 x 30 Polymer Concrete Handhole Vault, Tier 22, 3/8" Hex Bolt, 304830-PC-PC-T22-SW-ODC - Image 2

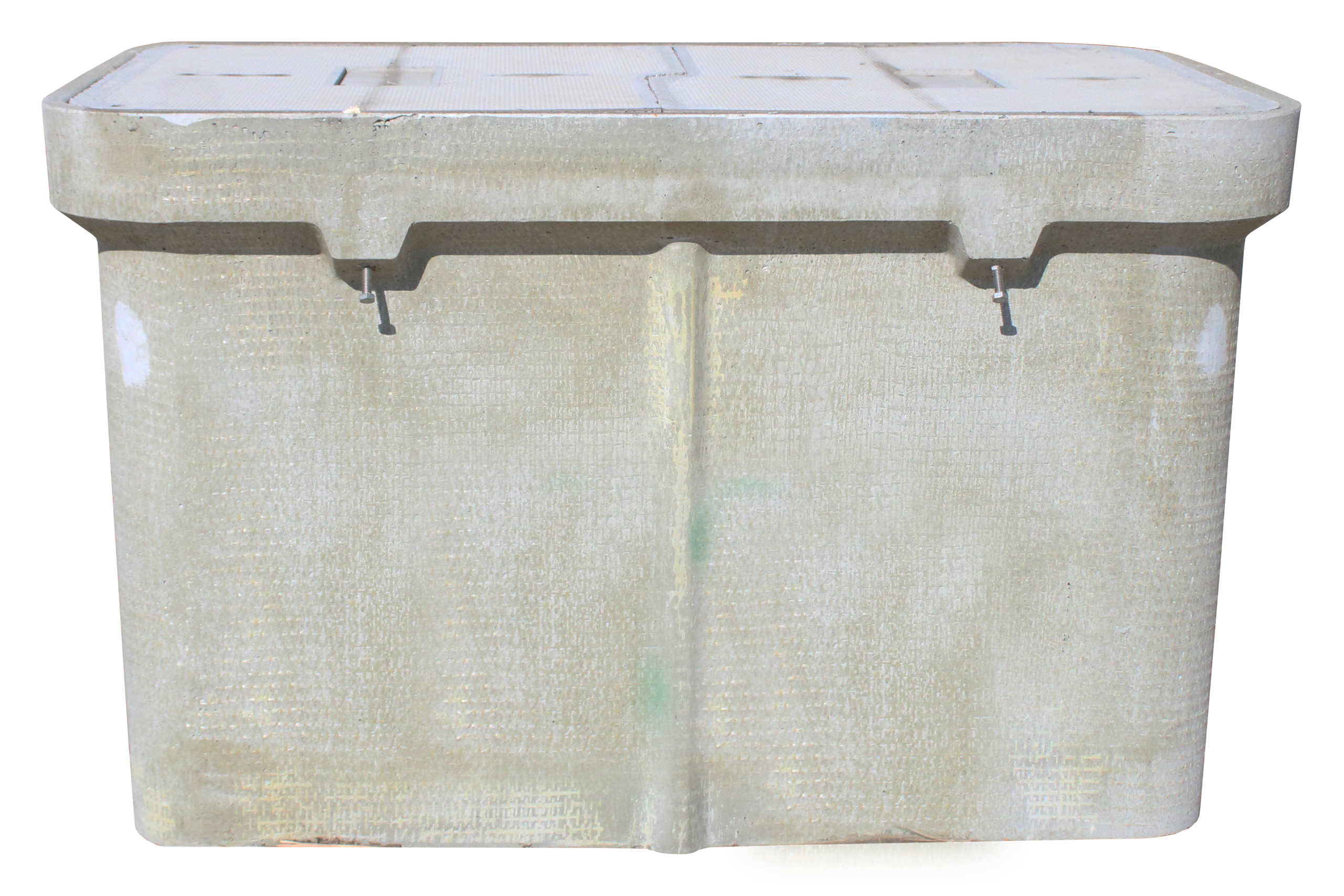

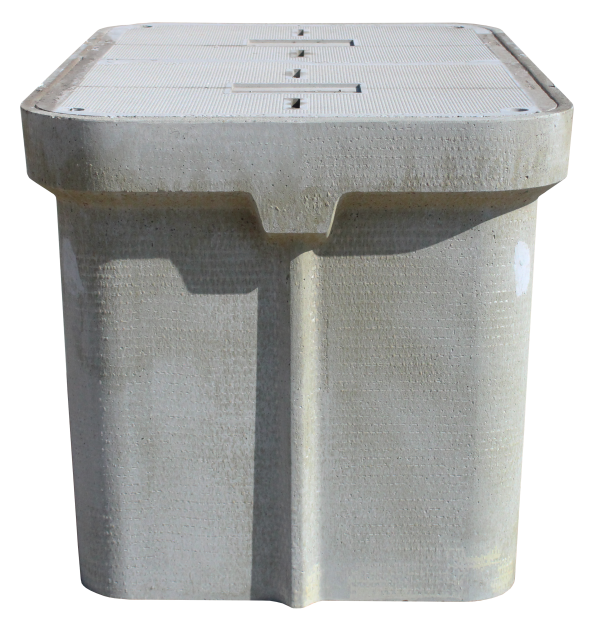

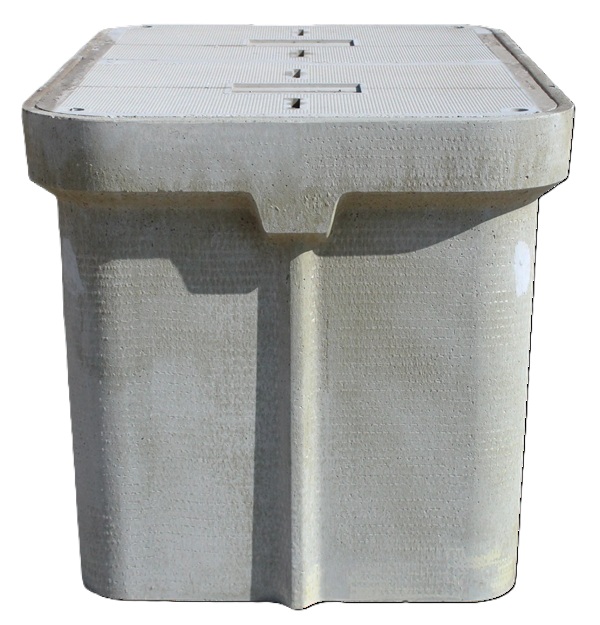

OldCastle 30 x 48 x 30 Polymer Concrete Handhole Vault, Tier 22, 3/8" Hex Bolt, 304830-PC-PC-T22-SW-ODC - Image 3

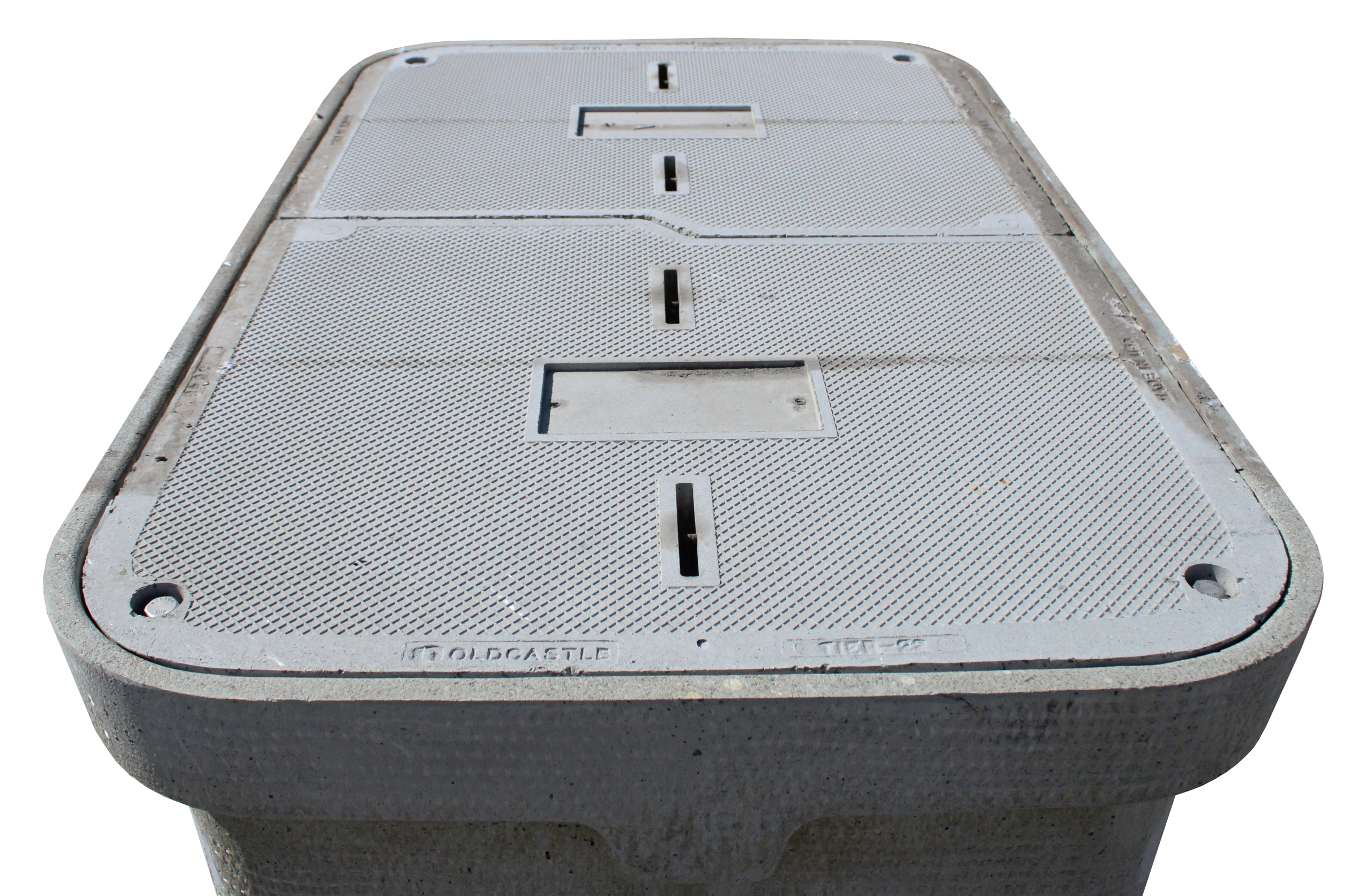

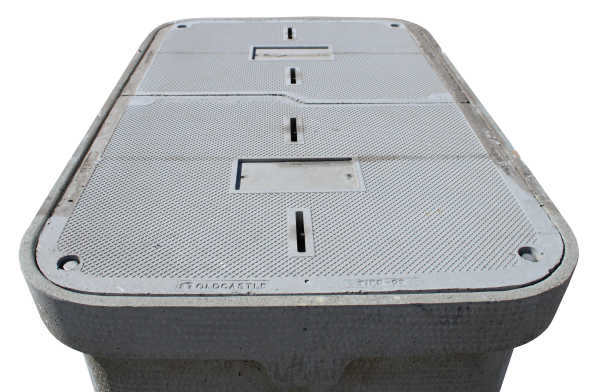

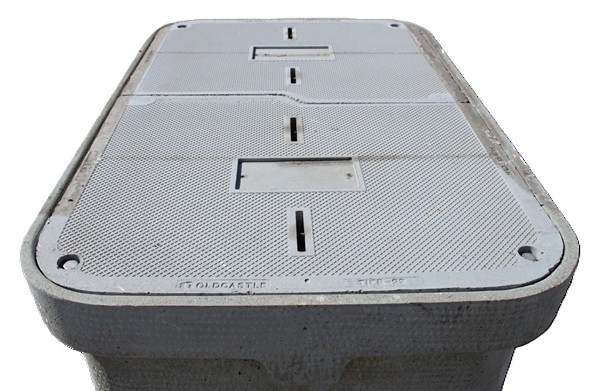

OldCastle 30 x 48 x 30 Polymer Concrete Handhole Vault, Tier 22, 3/8" Hex Bolt, 304830-PC-PC-T22-SW-ODC - Image 4
SKU V-304830-PC-PC-T22-SW-ODC Category Tags , , , , Brand:

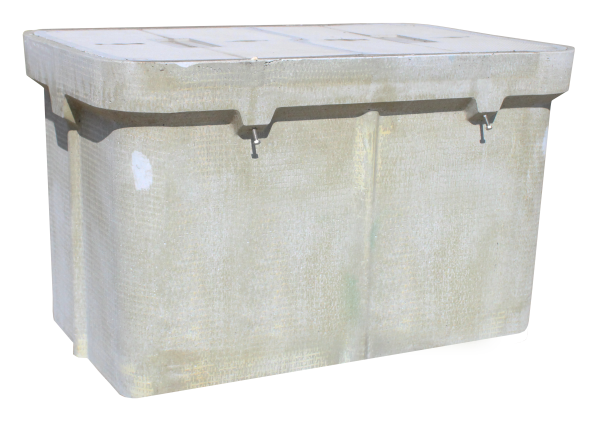

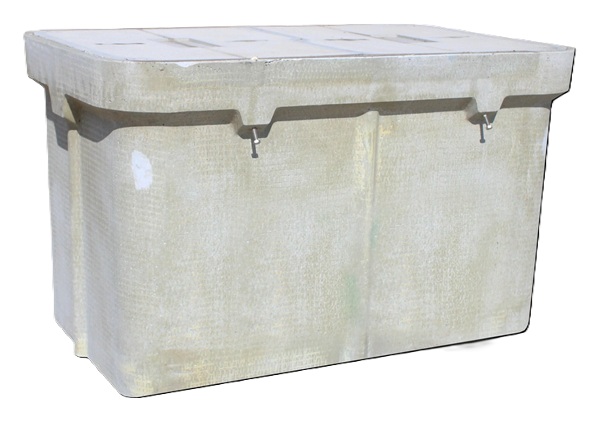

OldCastle 30 x 48 x 30 Polymer Concrete Handhole Vault, Tier 22, 3/8″ Hex Bolt, 304830-PC-PC-T22-SW-ODC

The Oldcastle 30 x 48 x 30 Polymer Concrete Handhole Vault (model 304830-PC-PC-T22-SW-ODC) is a heavy-duty, medium-sized underground utility enclosure designed for non-vehicular traffic areas. Polymer concrete handhole vaults are used to provide safe, underground access to electrical cables, communication lines, and other utilities. The 30x48x30 size is suitable for a wide range of commercial, industrial, and municipal applications.

$750.00

67 in stock

Description





OldCastle 30 x 48 x 30 Polymer Concrete Handhole Vault, Tier 22, 3/8″ Hex Bolt, 304830-PC-PC-T22-SW-ODC

Product features
  • Manufacturer: Oldcastle Infrastructure.
  • Construction material: The vault body and cover are made from polymer concrete, which is lighter than traditional concrete but maintains comparable strength and durability.
  • Dimensions:
    • Nominal: 30 inches x 48 inches.
    • Depth: 30 inches.
    • Weight (Approx.): Around 640 pounds for the entire unit (body and cover).
  • Cover:
    • Style: Flush, two-piece design.
    • Fasteners: The cover is secured with 3/8″ hex bolts and floating nuts. It may also have additional marking plates.
  • Load rating: Tier 22, based on the ANSI/SCTE-77 standard. This designation means the vault is rated for “heavy-duty” applications and can withstand occasional non-deliberate heavy vehicular traffic, such as in driveways or parking lots.
    • Design load: 22,500 pounds.
    • Test load: 33,750 pounds.
2 per Pallet, 50 per Truck.
Call Us Today for a no obligation freight estimate!

Additional information

Weight 1200 lbs
Dimensions 36 × 48 × 65 in
