Description
Specifications:
- Part number: 241115.105
- Power: 2000 W at nominal input
- DC output: -48 VDC with an adjustable range of 43.5–57.6 VDC
- Current: Provides a maximum of 41.7 Amps at 48 VDC.
- Efficiency: Features a high efficiency rating of over 96%, helping to reduce power consumption and heat dissipation.
- Input voltage range: 85–300 VAC (nominal 185–275 VAC).
- Dimensions: 109 x 41.5 x 327 mm (4.29 x 1.63 x 12.87 inches).
- Weight: 1.95 kg (4.3 lbs).
- Current sharing: Allows for parallel operation with other rectifiers, with current sharing accurate to ±5% of the maximum current.
- Protection: Includes over voltage shutdown, high-temperature protection, and short-circuit protection.
Key features:
- Proven reliability: The Flatpack 2 HE family has a long history of dependable performance in the field.
- Modular and hot-pluggable: The design allows for easy and rapid installation or replacement without shutting down the system.
- High power density: The compact design saves valuable space in equipment cabinets.
- Wide operating temperature: The rectifier can function in a broad range of temperatures, from -40°C to +75°C.
- Global compliance: Certified to meet international safety and EMC standards, including CE and UL.
Applications:

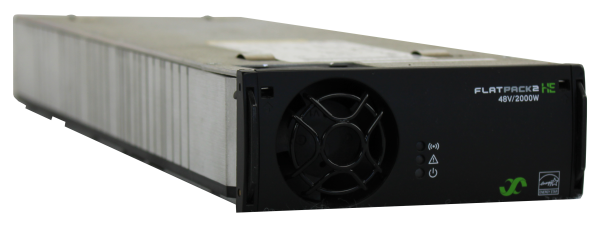

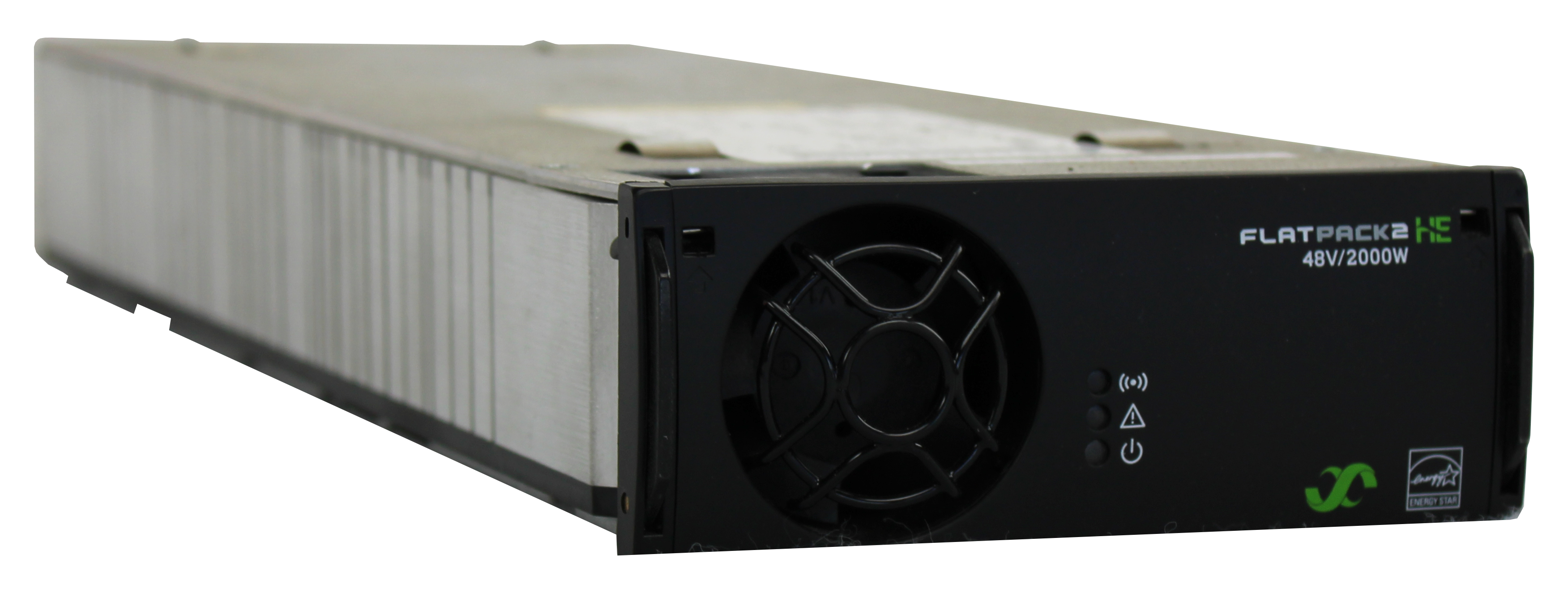

The Flatpack 2 241115.105 rectifier is ideal for a variety of power systems, including:
- Telecommunications: Powering radio base stations, mobile switching centers, and fiber-optic networks.
- Data centers: Providing backup power and ensuring system reliability.
- Industrial applications:</
