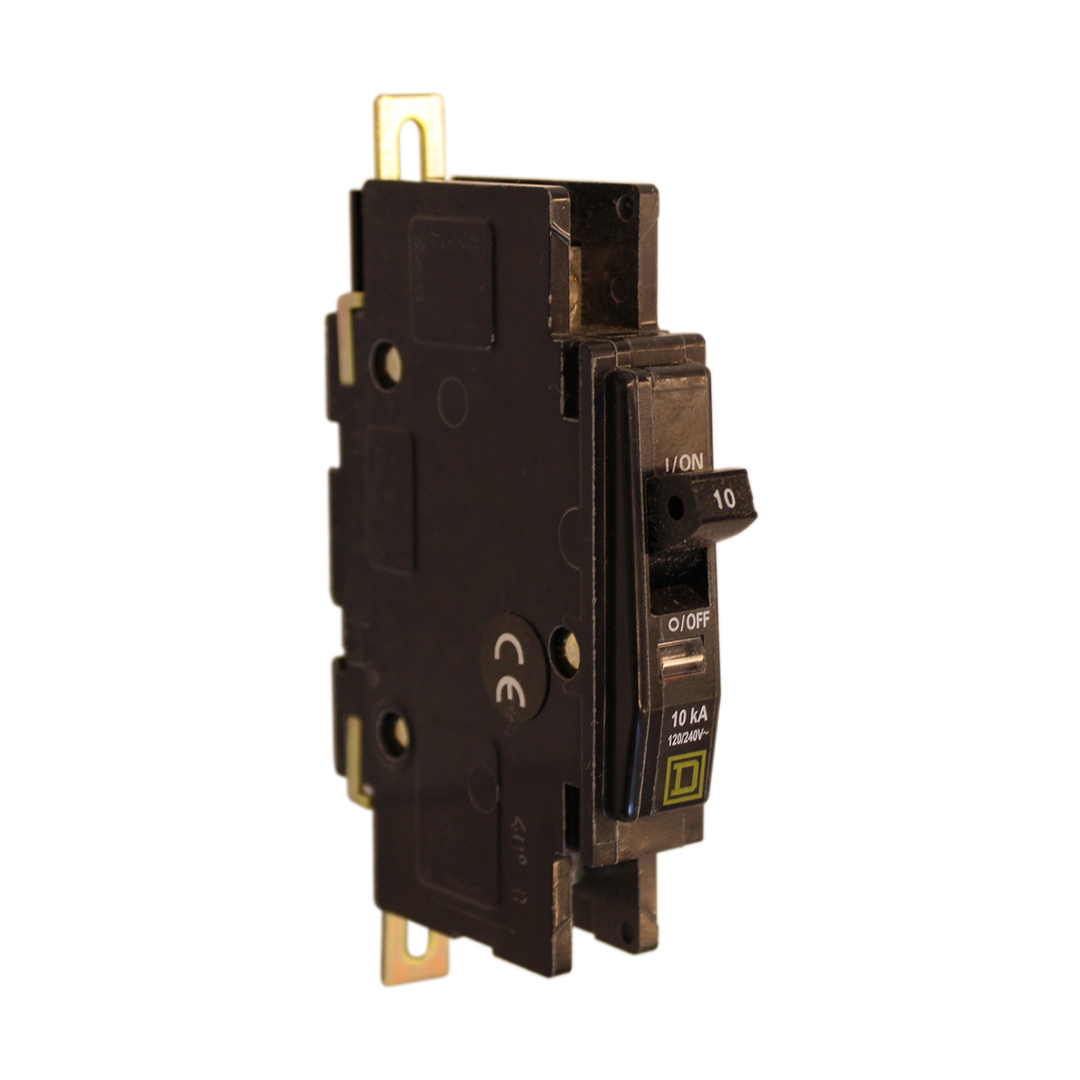

Square D QOU style 10 amp, 1 pole breaker QOU110 New!

Square D QUO110 Key specifications:

According to the manufacturer and various suppliers, the QOU110 circuit breaker has the following specifications:

Amperage: 10 A
Poles: 1
Voltage Rating: 120/240 V AC and 48 V DC
Interrupting Rating: 10 kA at 120/240 V AC; 5 kA at 48 V DC
Mounting Type: Unit mount, which includes DIN rail, surface, or flush mounting.
Connection: Slotted box lugs on both the line and load sides.
Wire Size Compatibility: 14 to 2 AWG, compatible with both copper and aluminum wires.
Dimensions: 4.05 in high x 0.75 in wide x 2.95 in deep.
Features: Includes a Visi-Trip indicator, which provides a highly visible red flag when the breaker has tripped.
Certifications: UL listed, CSA, and IEC.

$20.00

65 in stock

Description
Additional information

Description

The Square D QOU110 is a 1-pole, 10-amp, thermal-magnetic miniature circuit breaker. It is designed for overcurrent and short-circuit protection in residential and commercial applications.

Additional information

Weight	1 lbs
Dimensions	6 × 10 × 3 in
