Description

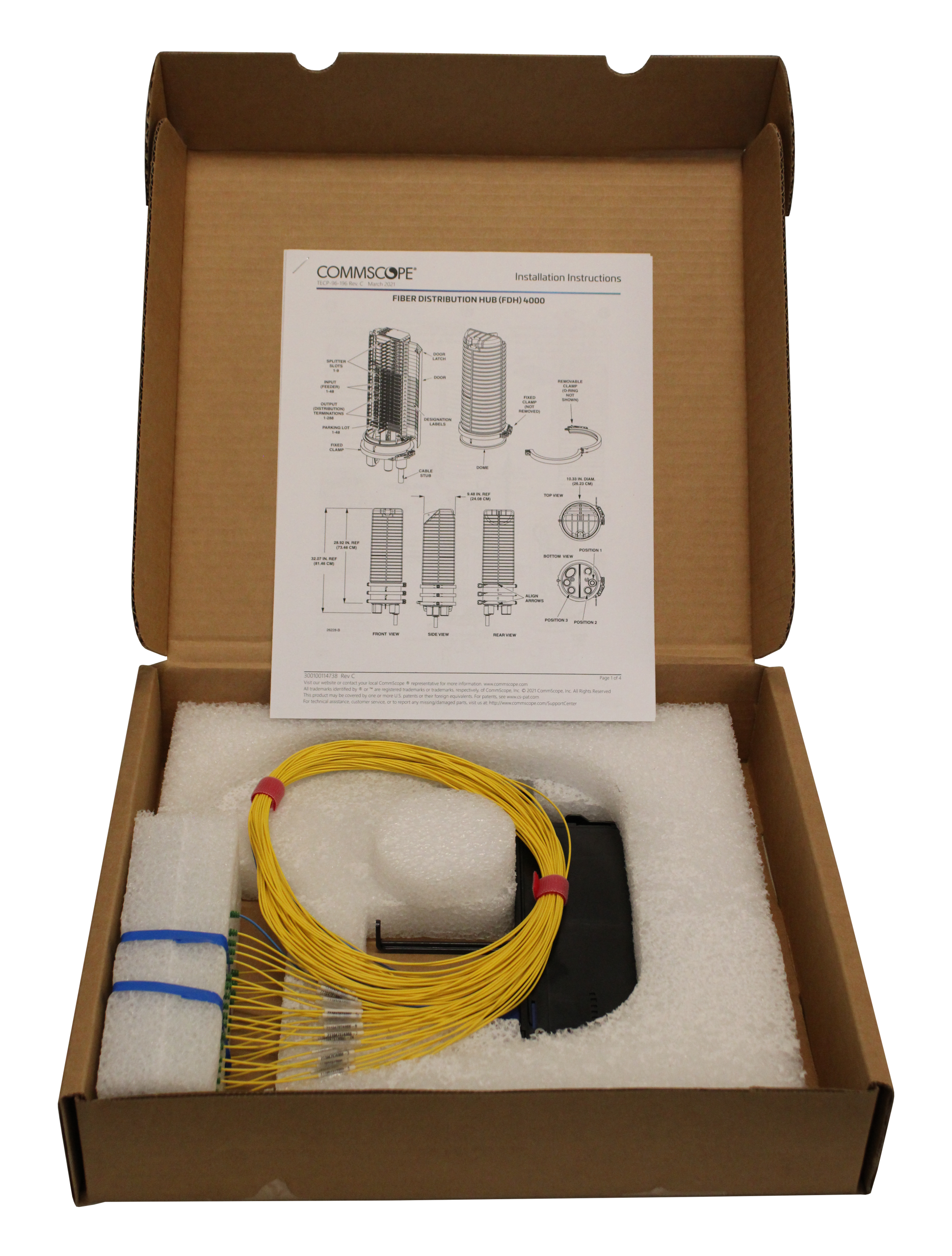

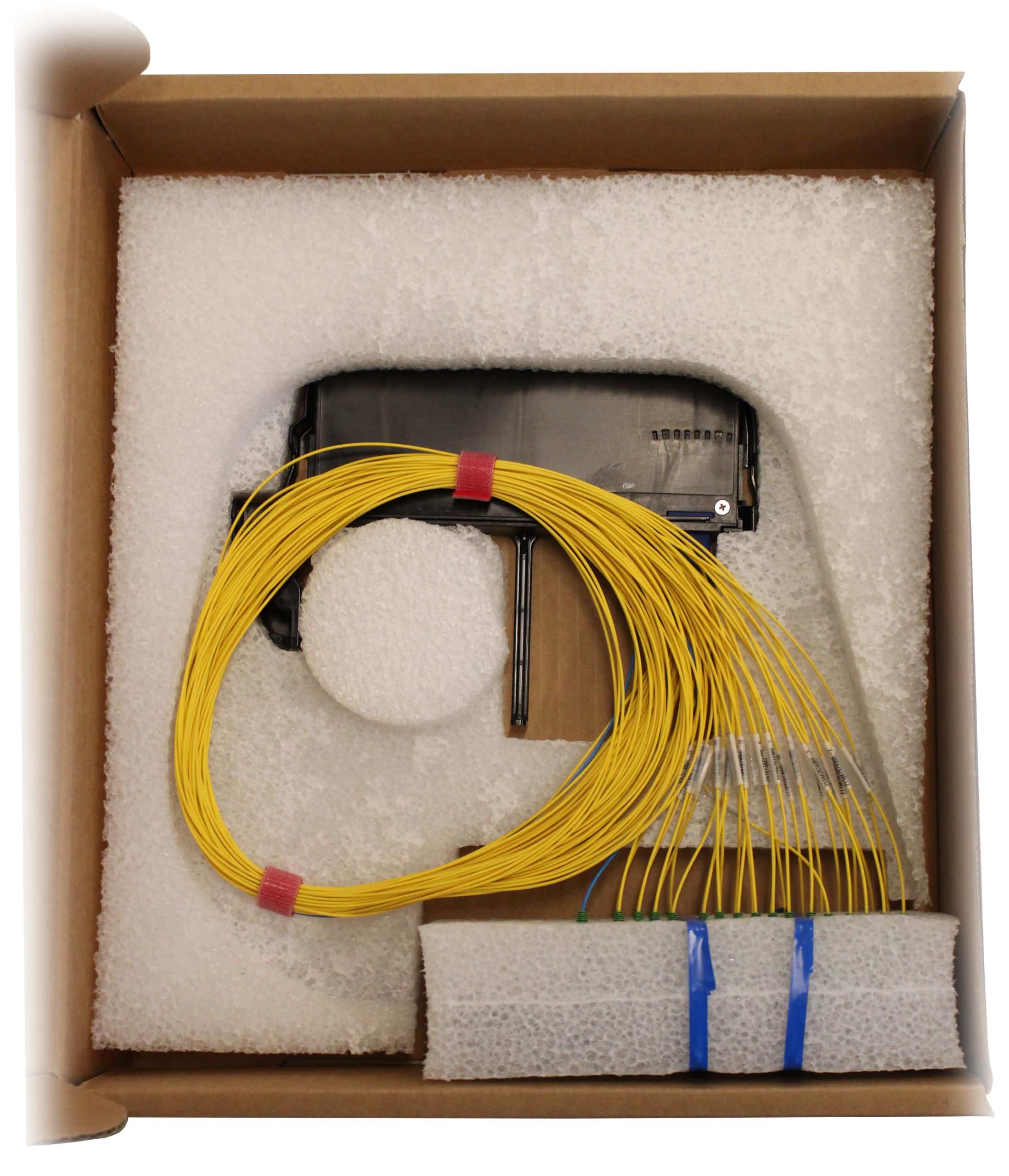

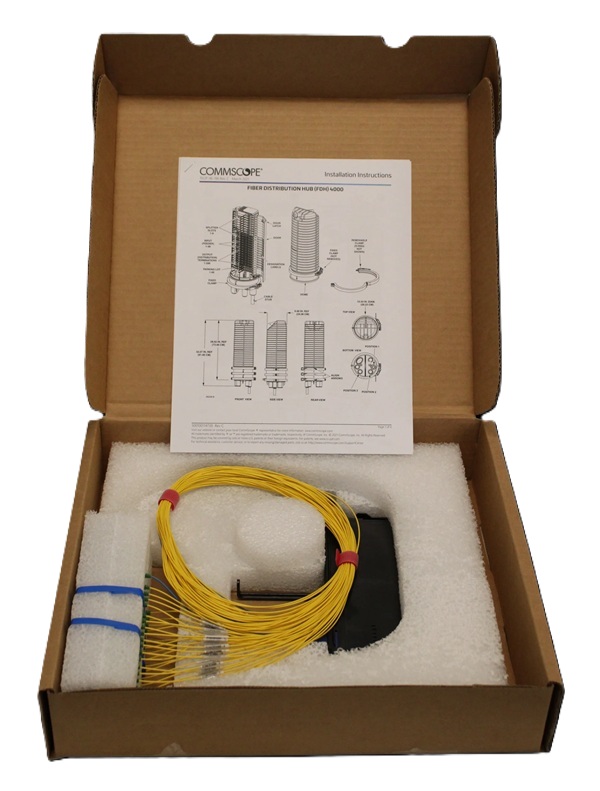

Commscope 1×32 Splitter Module for FDH 4000 Sealed Fiber Distribution Hub with LC/APC input and output FPS-CMPP2ASS
Key specifications
- Part number: FPS-CMPP2ASS
- Split ratio: 1×32, symmetrical
- Connectors: LC/APC for both input and output
- Application: FDH 4000 and FDH 5000 series cabinets
- Functionality: Signal splitting
- Wavelength range: 1260–1635 nm
- Typical insertion loss: 16 dB
- Maximum insertion loss: 16.7 dB
- Minimum return loss: 55 dB
- Maximum polarization dependent loss (PDL): 0.3 dB
- Maximum uniformity: 1.3 dB
- Module color: Black
Features and benefits
- Plug-and-play design: This reduces installation time and helps prevent disruption to adjacent fibers during installation. The module can be easily inserted and removed without affecting other splitters.
- Sealed FDH 4000 compatibility: The module is specifically designed for the rugged, sealed FDH 4000 hubs, allowing for installation in various outdoor environments, such as vaults, hand holes, and aerial locations.
- Optimized performance: It features bend-optimized fiber and ruggedized cabling to ensure high performance, especially in extreme temperatures and across the specified wavelength range.
- High density: The splitter modules are part of a high-density solution that supports the deployment of fiber-to-the-home (FTTH) networks.
- Easy identification: The splitter modules have an innovative staggered design for easier fiber identification and access.
