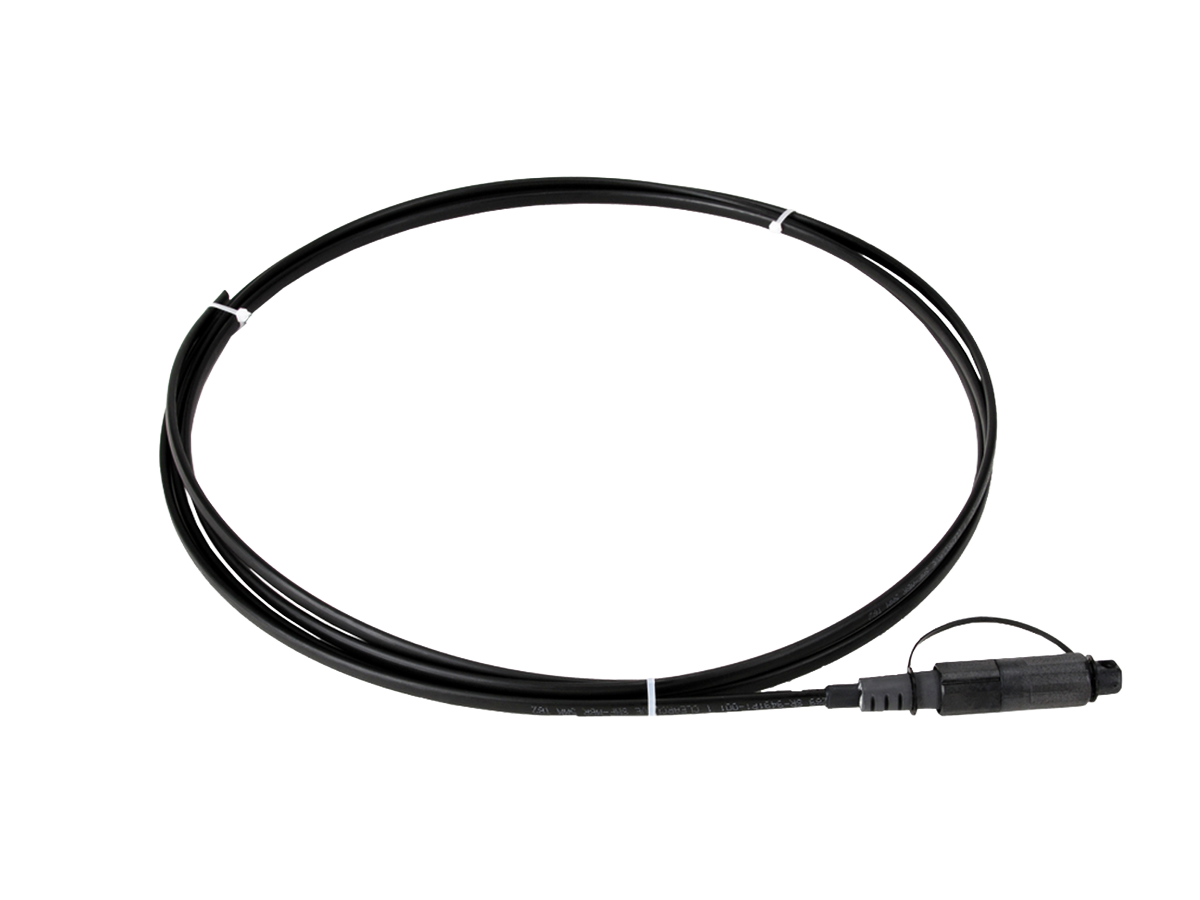

New Corning OptiTap® SST-Drop Toneable Cable Assembly 434401EB1R2075F-P

Corning OptiTap® SST-Drop Toneable Cable Assembly (434401EB1R2075F-P) is a 75-foot, single-fiber optical drop cable designed for rapid deployment in Fiber-to-the-x (FTTx) networks. This specific model features a factory-terminated, toneable, hardened OptiTap connector on one end and a stub end (raw fiber) on the other, allowing for quick connection to multiport terminals while maintaining environmental protection.

$55.00

58 in stock

Description

Technical Specifications

  • Toneable Design: Includes a copper wire element that allows for easy detection and location of the cable when buried.
  • Cable Type: ROC™ (Reduced Optimized Cable) Drop, which is more flexible and has a smaller bend radius than legacy drop cables.
  • Length: 75 feet.
  • Connectors: Typically configured as an OptiTap® hardened connector on one end and a standard SC/APC connector on the other (hybrid assembly).
  • Material: Toneable, which includes a metallic trace wire allowing the cable to be easily located after being buried underground.
  • Fiber Count: 1-fiber (simplex).
  • Installation: Suitable for aerial (self-supporting), direct-buried, or duct installations.



Key Benefits

  • Efficiency: Factory-terminated and environmentally sealed connectors reduce the time and cost associated with field splicing during deployment.
  • Improved Management: The ROC drop design virtually eliminates issues with slack storage capacity because its minimum bend radius is half that of traditional cables.
  • Durability: The OptiTap connector design is engineered for superior reliability in the drop segment of the network.



Additional information

Weight 5 lbs
Dimensions 20 × 20 × 4 in
