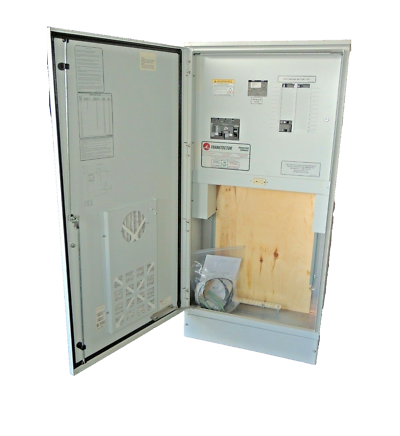

New Transtector Power Telco Cabinet 200 AMP, 120/240 1101-781-200
The Transtector 1101-781-200MG is a Power Telco Cabinet (PTC) designed for outdoor use in telecommunications, utility, and other industrial applications. This model, also identified by the similar part number 1101-781-200-MG, provides a consolidated solution for power transfer, distribution, and surge protection.
Dual-chamber design: The cabinet contains separate compartments for both AC power equipment and customer-installed communications (Telco) gear.
Interlocked main breakers: Two 200 amp main breakers with a face-mounted mechanical interlock prevent accidental back-feeding of the generator into the main power supply.
Built-in distribution panel: A 24-position, 200 amp Square D Type QO load center allows for internal power distribution.
Surge suppression: The cabinet includes Transtector AC surge suppressors in both the AC power and Telco chambers to protect equipment.
Generator inlet: The unit is equipped with a high-current generator inlet, either an Appleton AR20044RS or AR20033RS.
Auxiliary outlets: A 15A 125V GFCI convenience outlet is included, as well as a 15A single-pole breaker for the GFCI and a 20A double-pole breaker for the TVS.
Durable construction: The enclosure is made of heavy-gauge 5052-H32 aluminum with a powder-coat finish and a NEMA Type 3R rating, making it waterproof and suitable for outdoor installation.
