Description

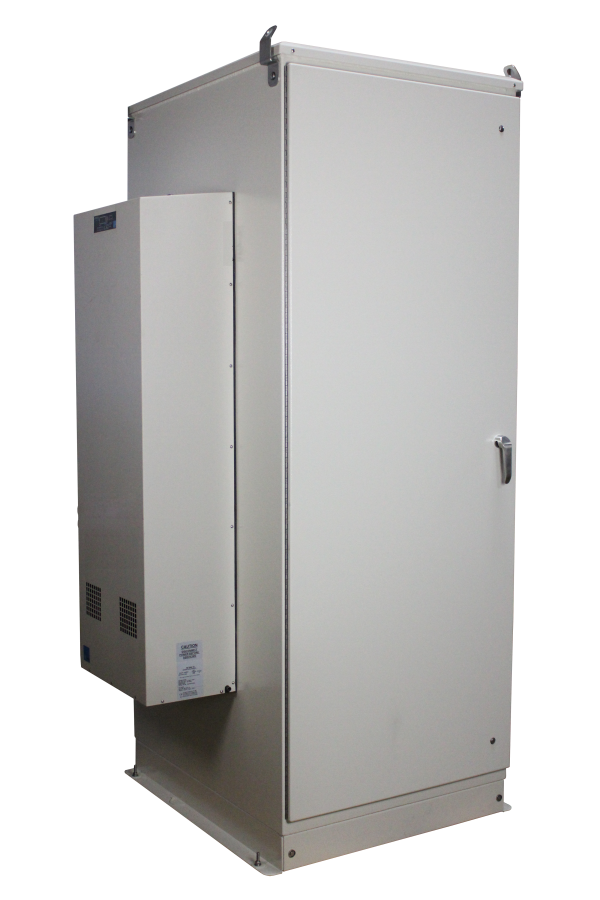

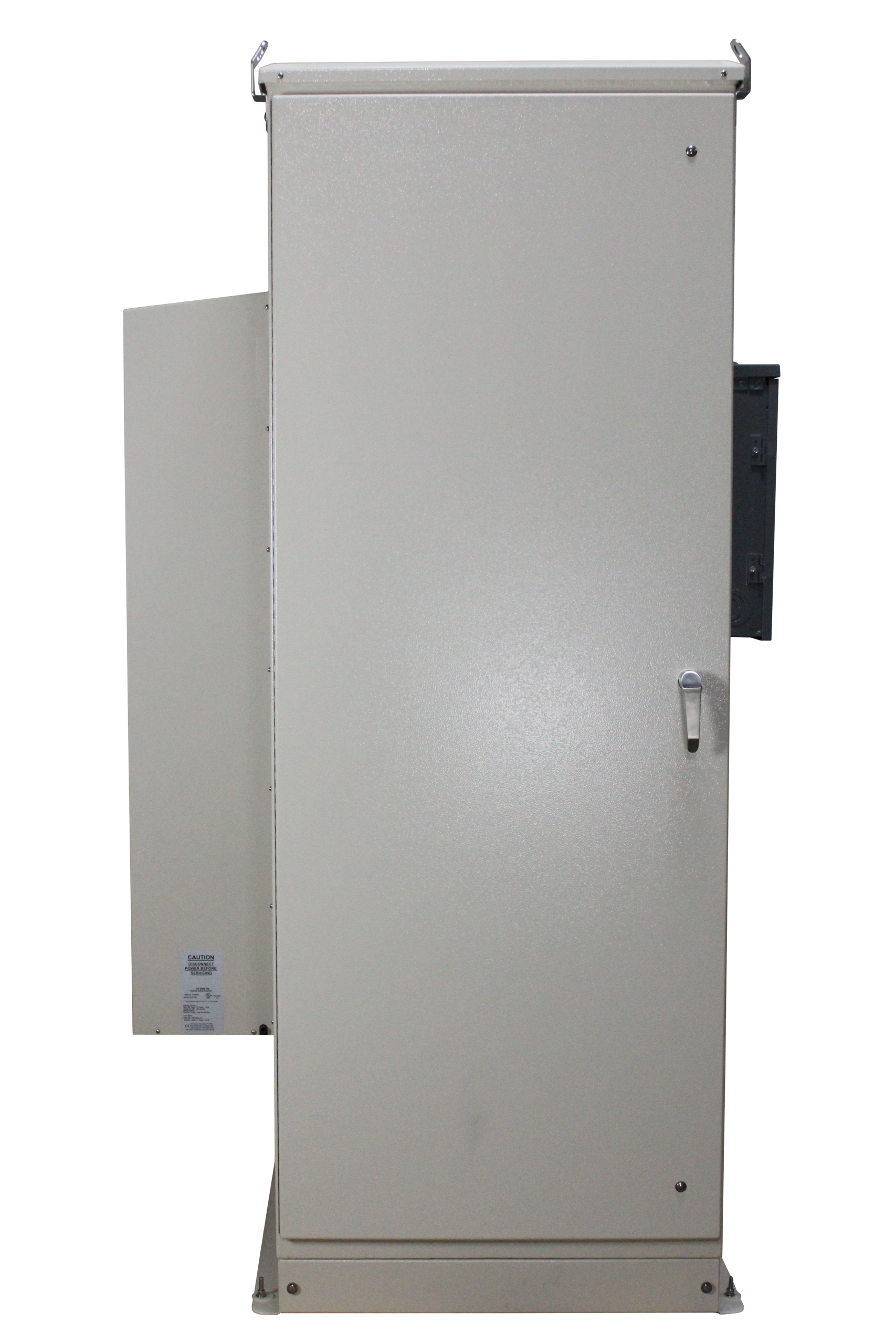

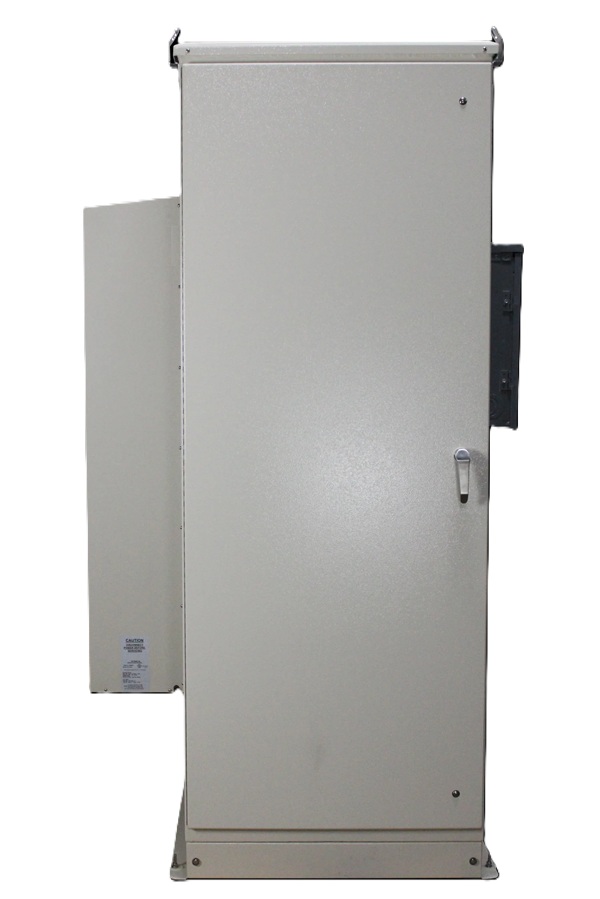

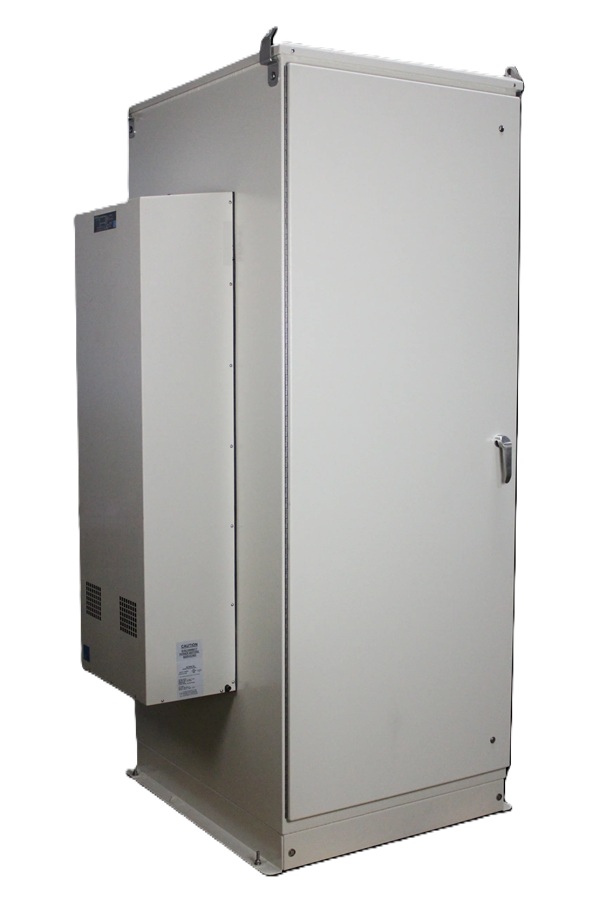

American Products Freedom Single Bay Enclosure AM78F-3036-42RU w/ IQ10K AC
Enclosure specifications
- Dimensions: 78 inches high x 30 inches wide x 36 inches deep.

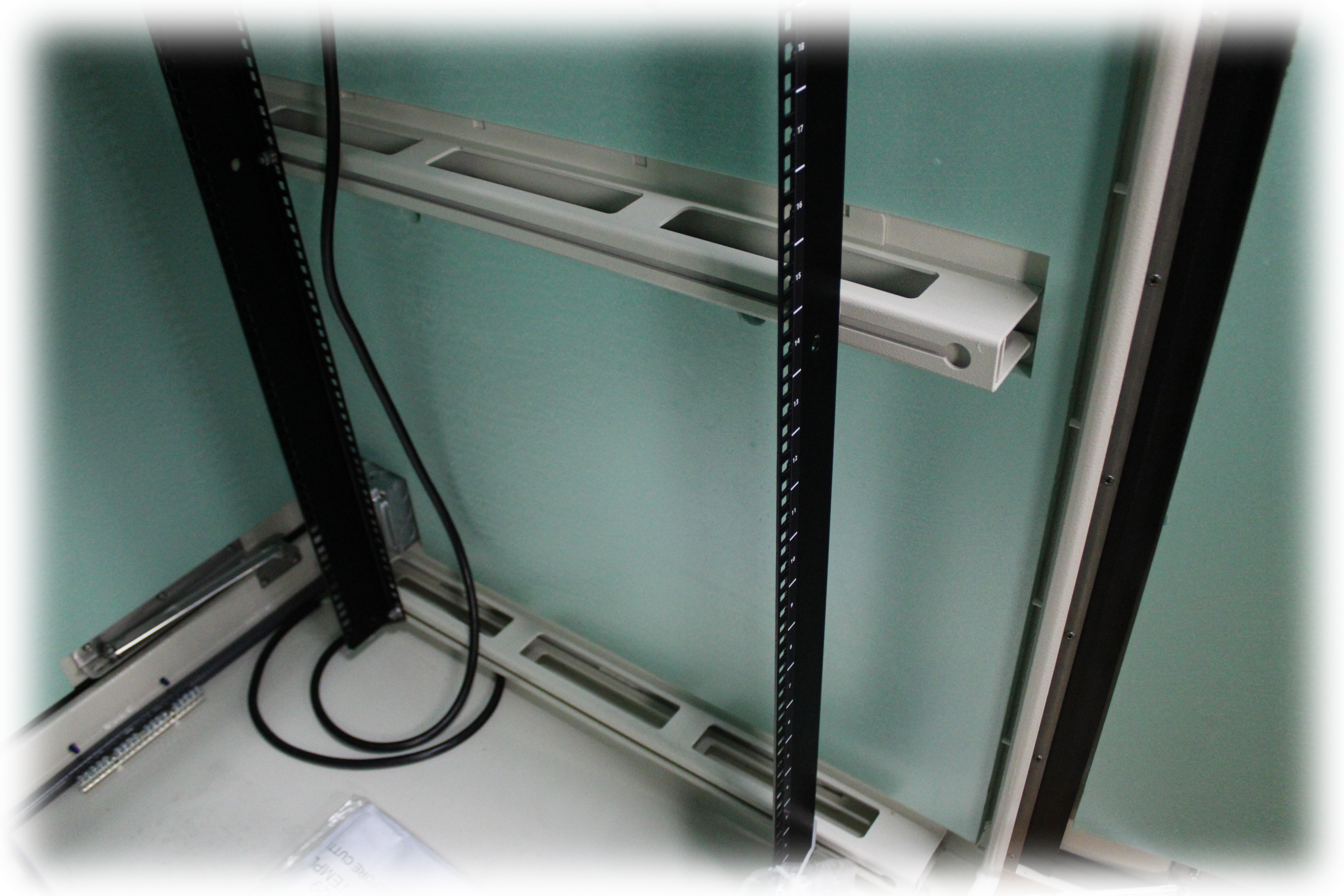

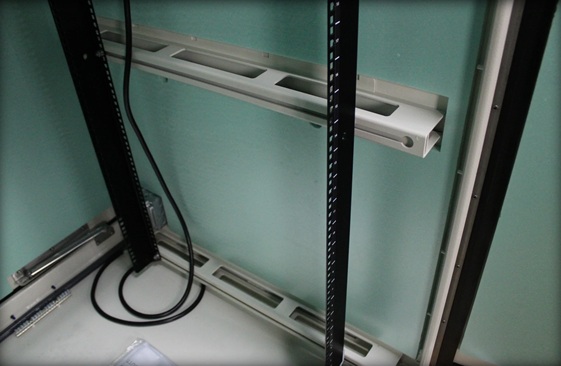

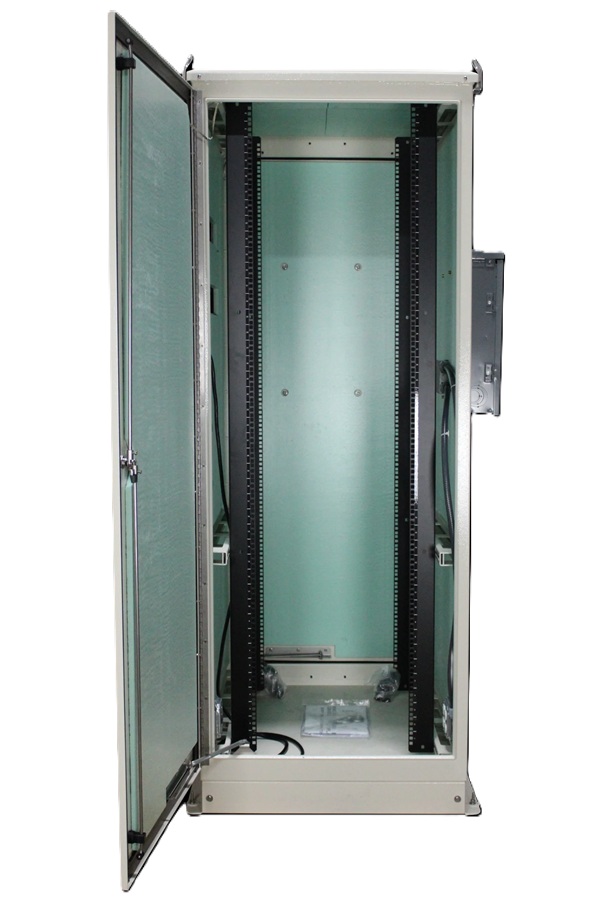

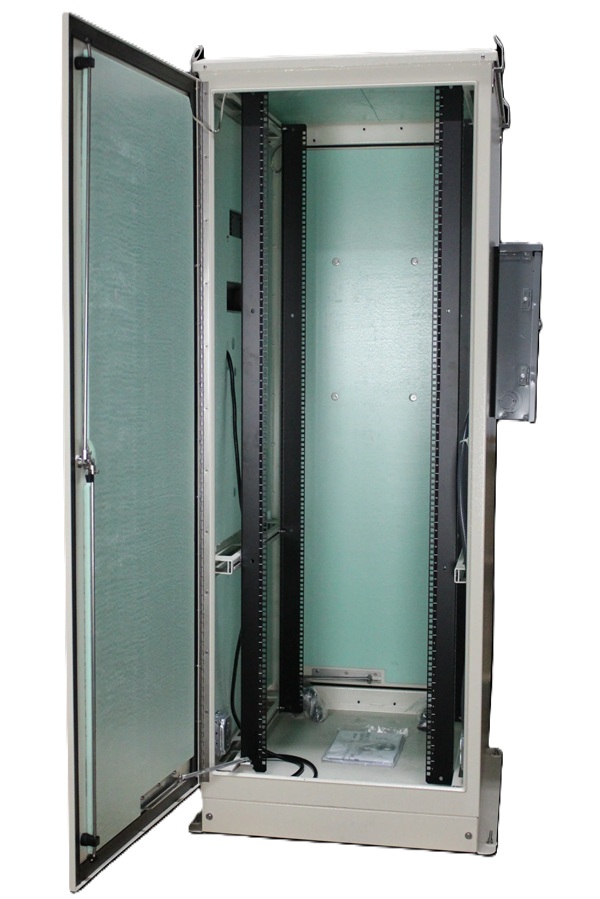

- Capacity: 42 rack units (RU) of vertical equipment space. The enclosure comes with one set of adjustable 19-inch or 23-inch rack rails.
- Protection rating: Designed to NEMA Type 4 and Type 4X standards, offering protection against dust, dirt, rain, snow, splashing water, and corrosion.
- Construction: .125-inch aircraft-grade aluminum with stainless steel hardware for superior corrosion resistance.
- Exterior features:
- Solar shield roof: A double-wall construction reduces internal heat build-up from sunlight, lowering cooling requirements.

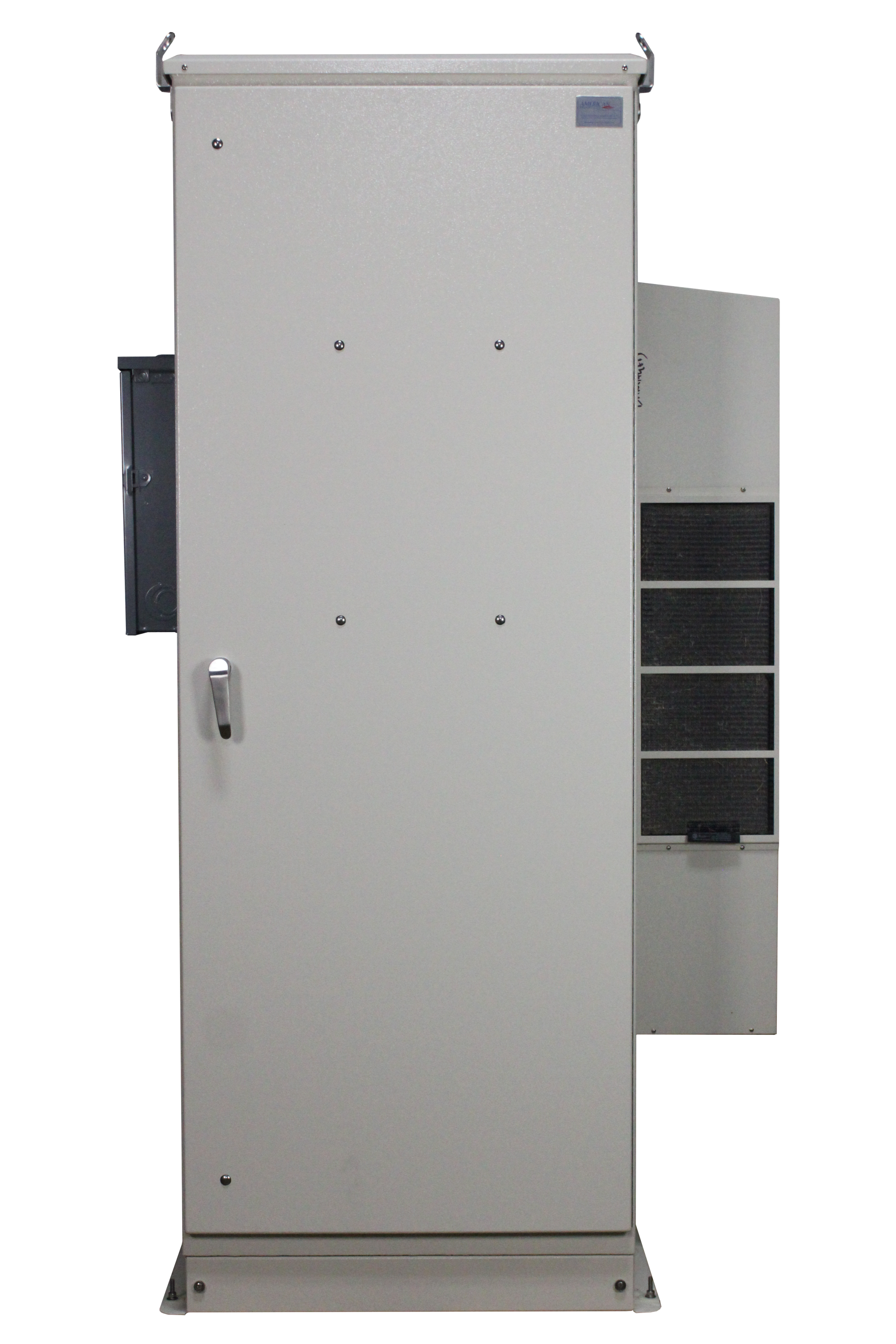

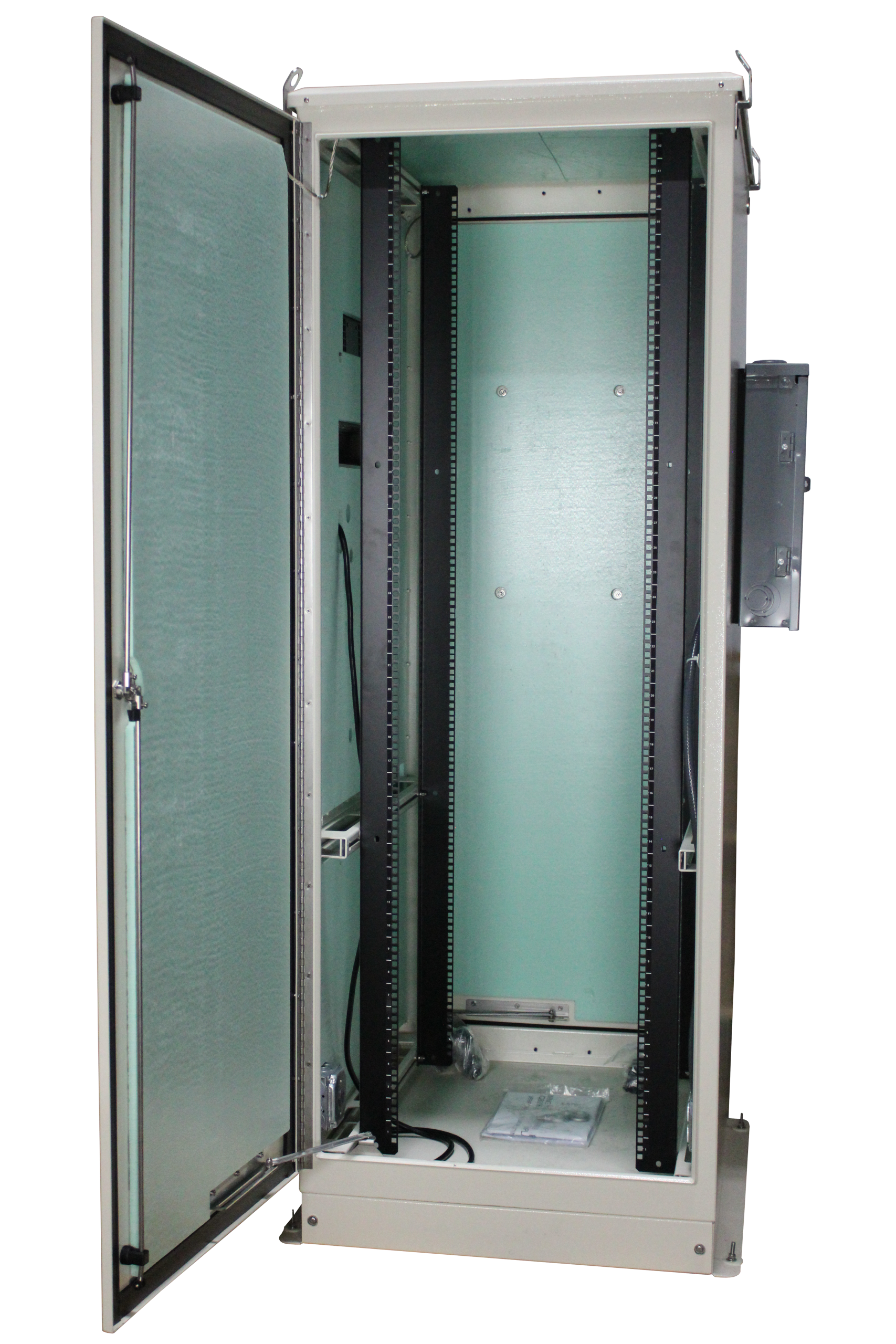

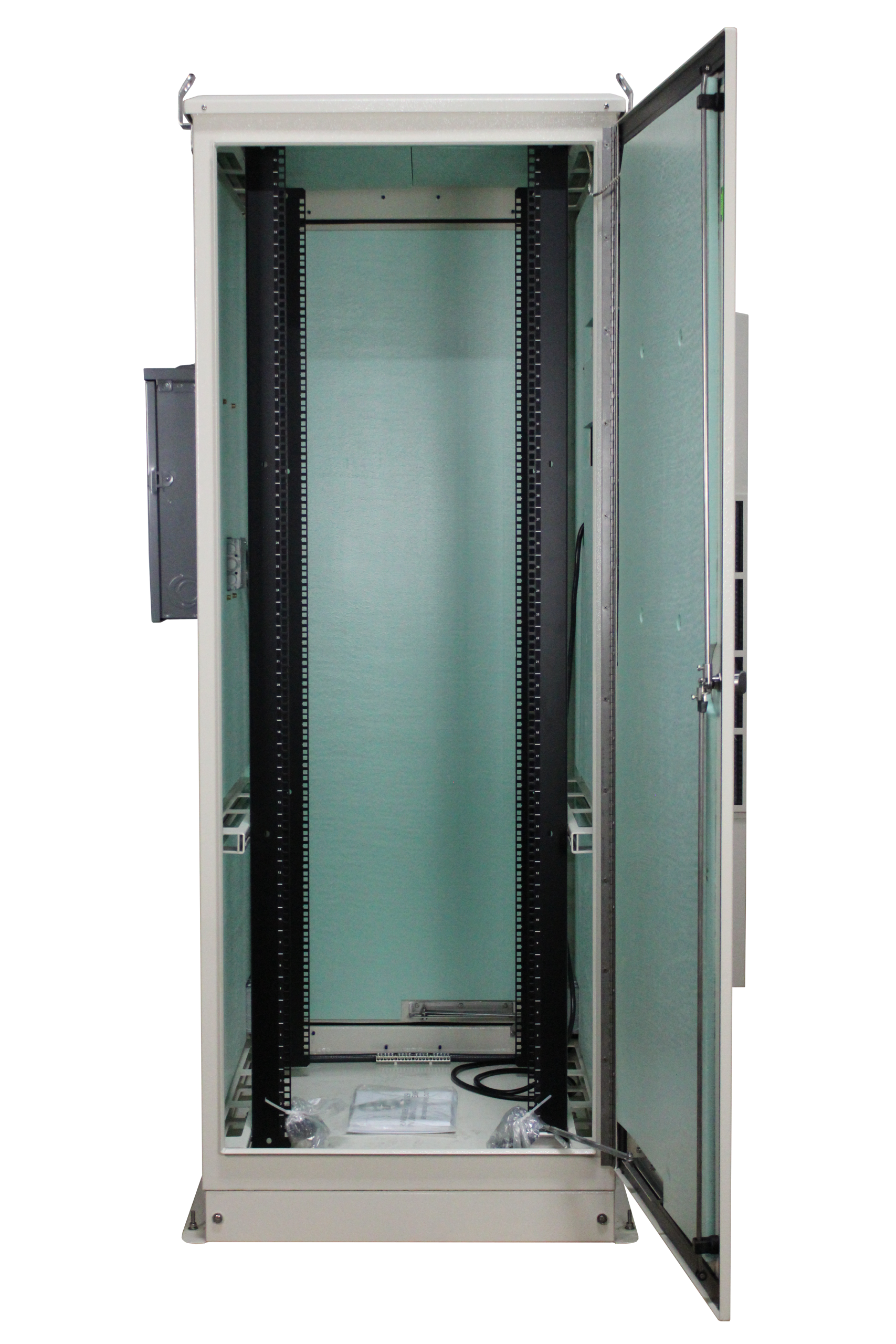

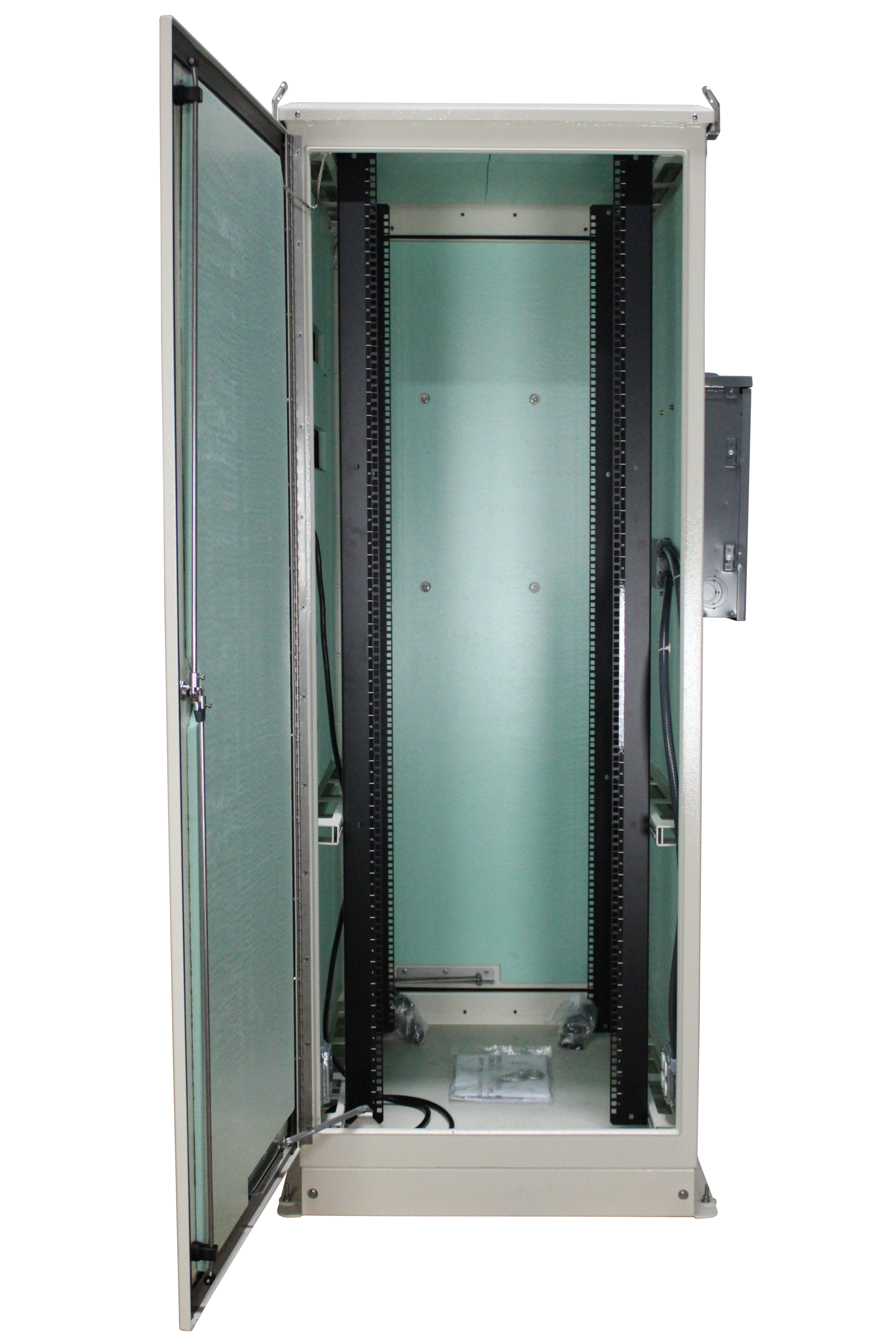

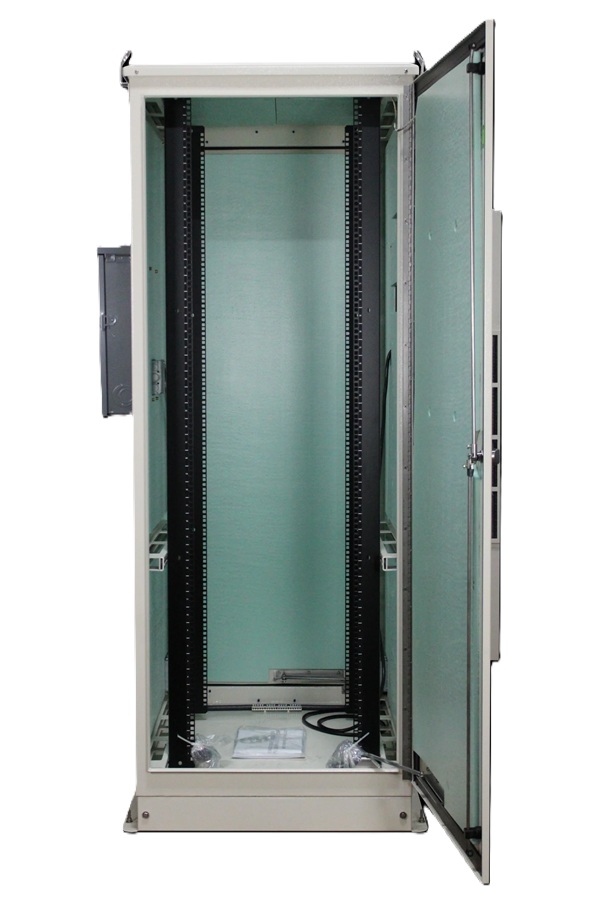

- Locking doors: Front and rear access doors with secure, padlockable 3-point stainless steel latching systems.
- Lifting eyes: Stainless steel lifting eyes make it easy to move and position the unit with a crane.
- Interior features:

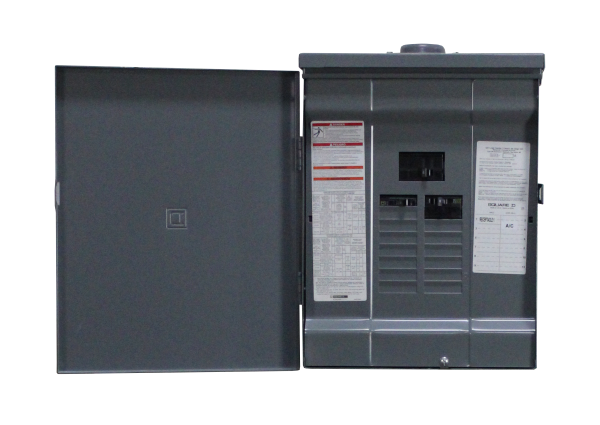

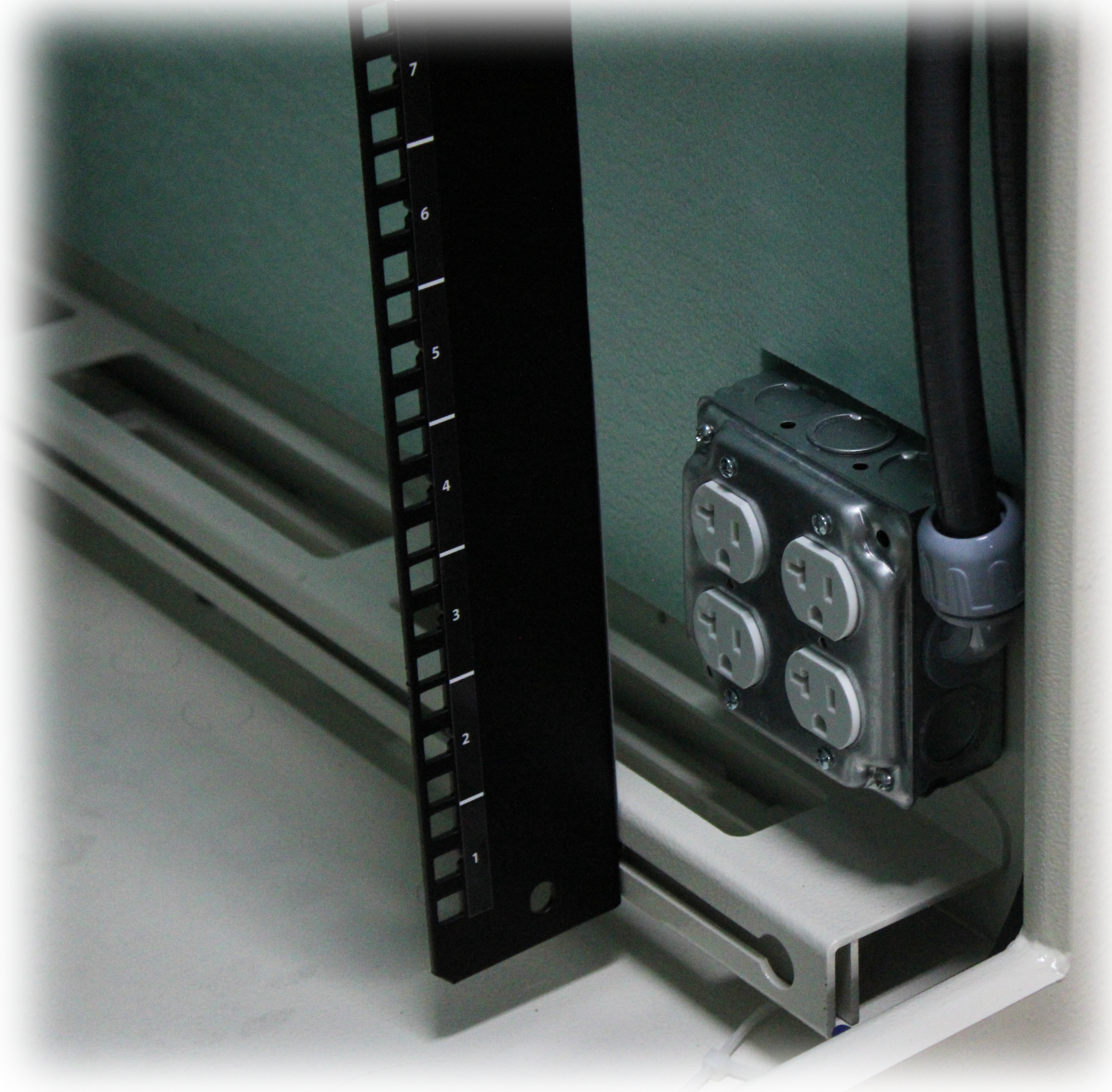

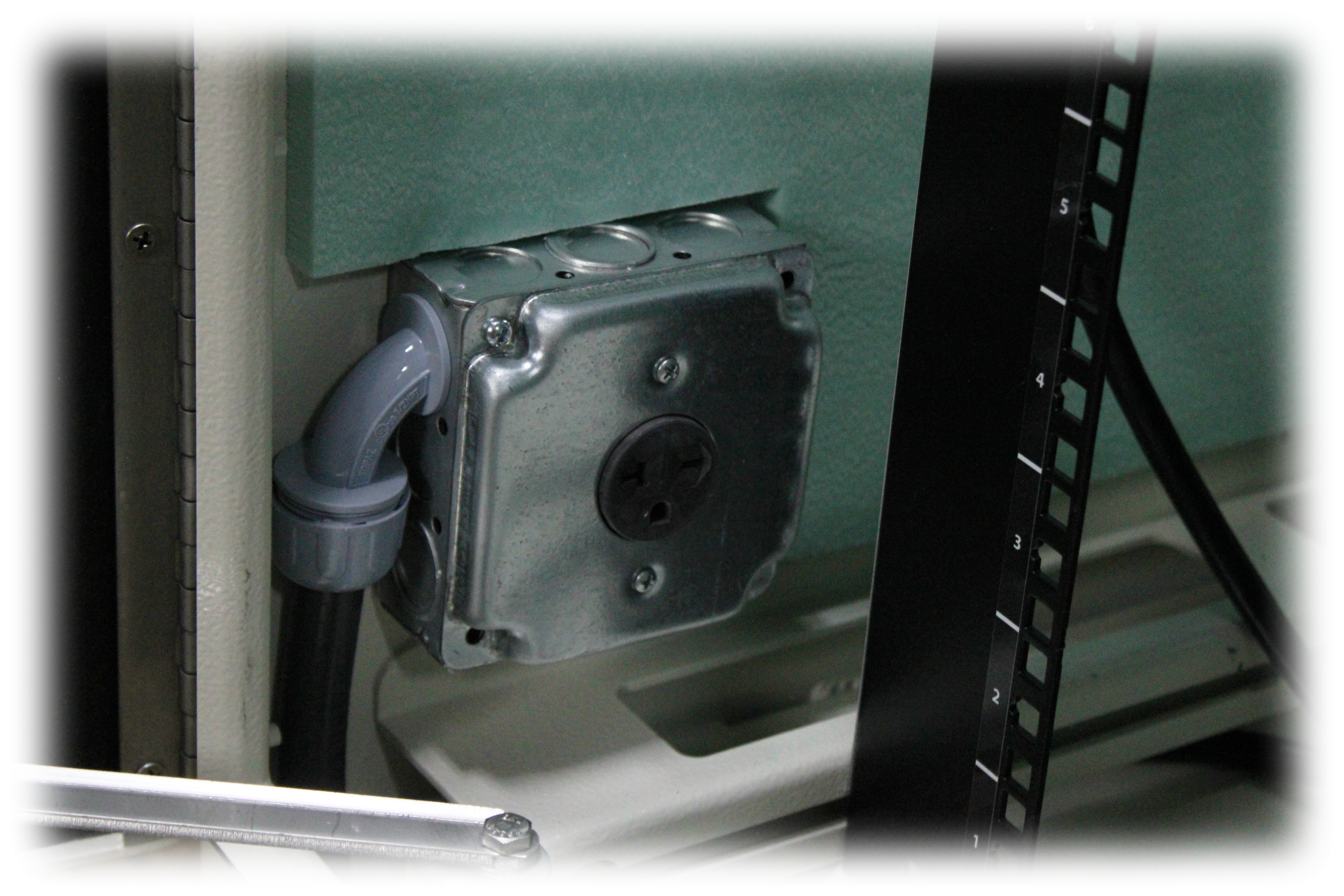

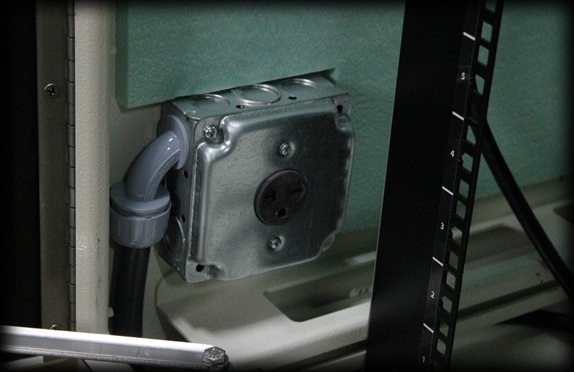

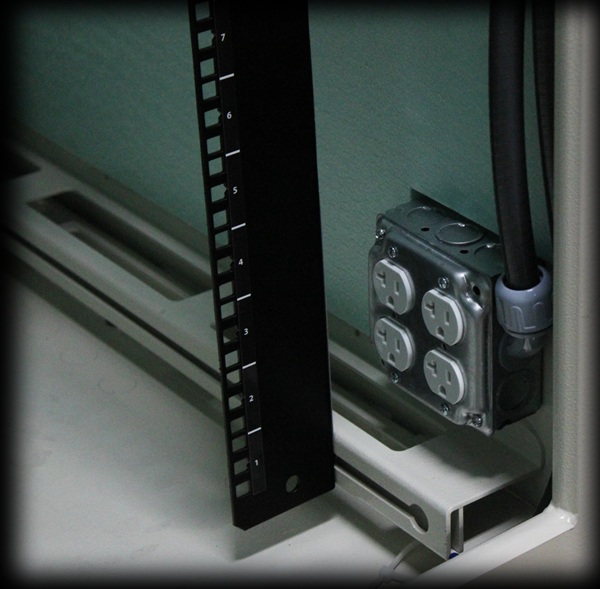

- Power: Includes a pre-wired 20-amp quad electrical receptacle.

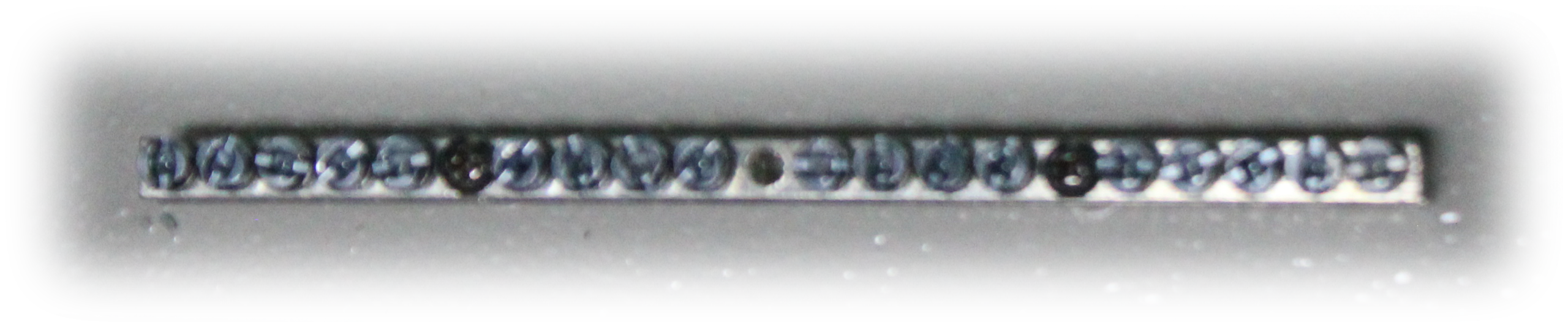

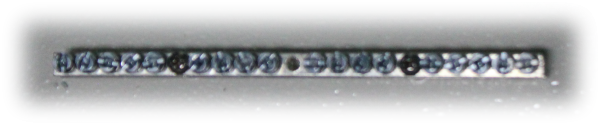

- Grounding: A 10-position copper grounding terminal strip provides electrical surge protection.
- Cable access: The base has knockouts for cable entry.

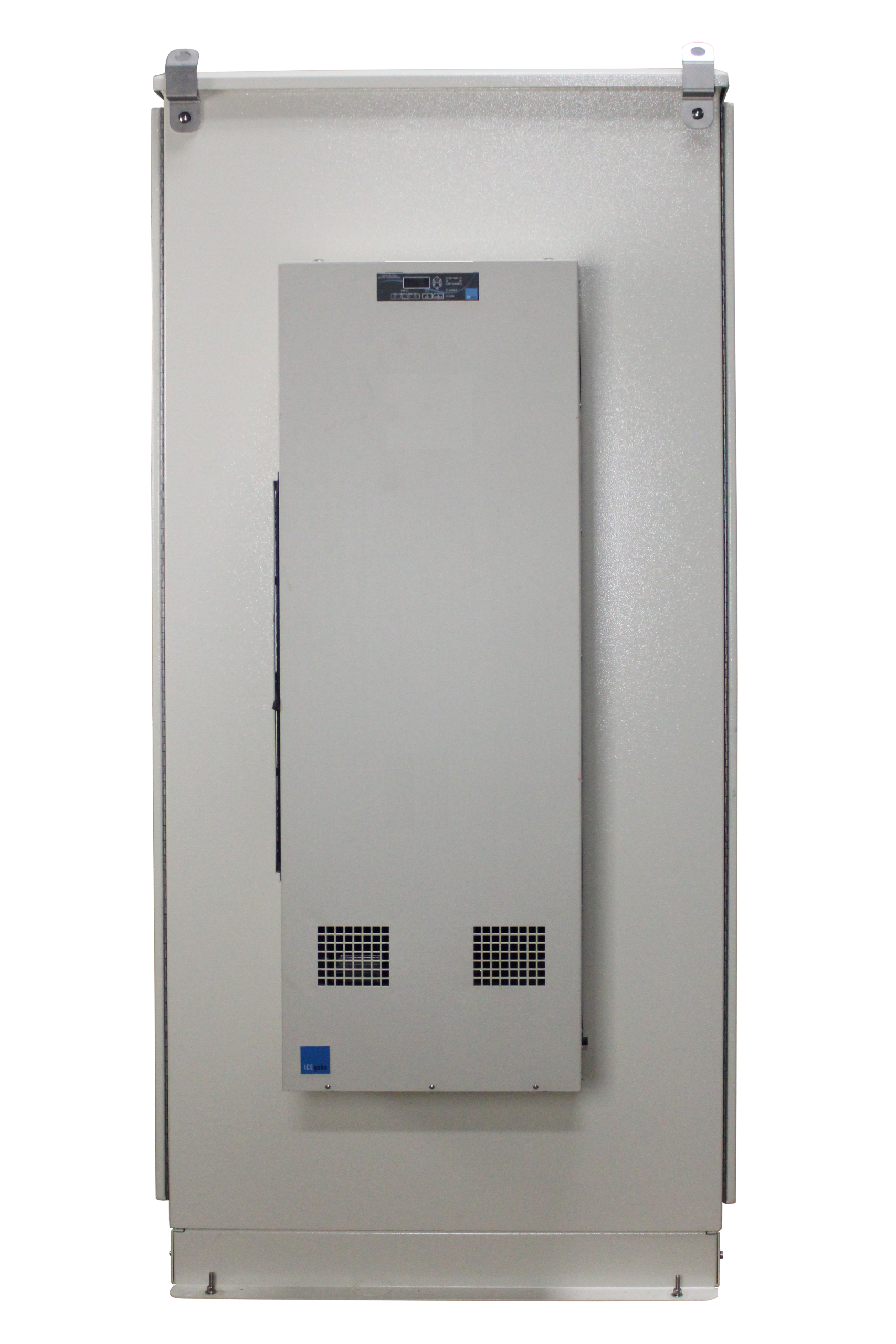

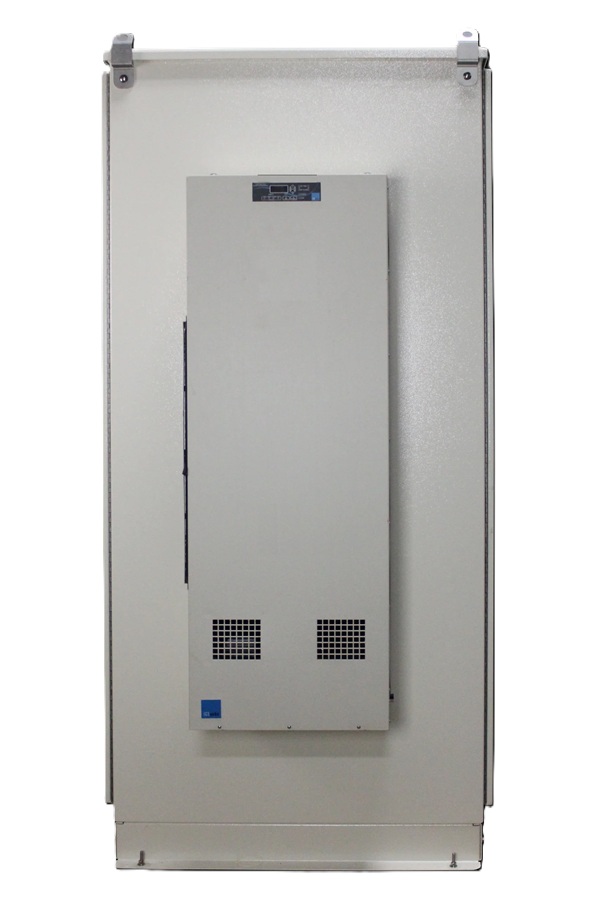

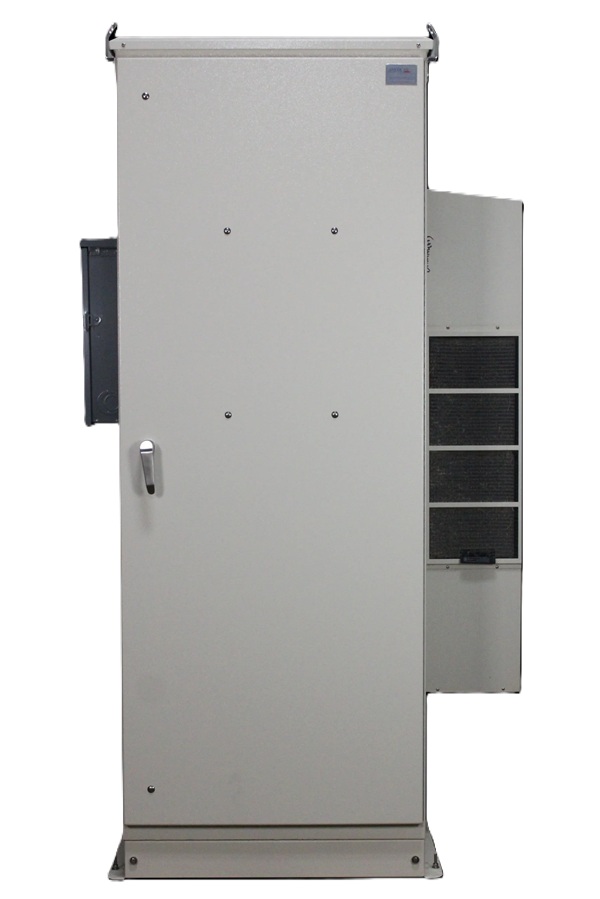

The IQ10K is a high-efficiency climate control system designed to regulate the internal temperature of the enclosure.
- Cooling capacity: 10,000 BTU/hr.
- Voltage: 115V.
- Compressor: Uses an energy-efficient rotary compressor.
- NEMA rating: Maintains the enclosure’s NEMA 4 or 4X integrity.
- Standard features: Includes a built-in condensate evaporator and a digital temperature controller with an alarm
Shipping included to all lower 48 United Sates!
